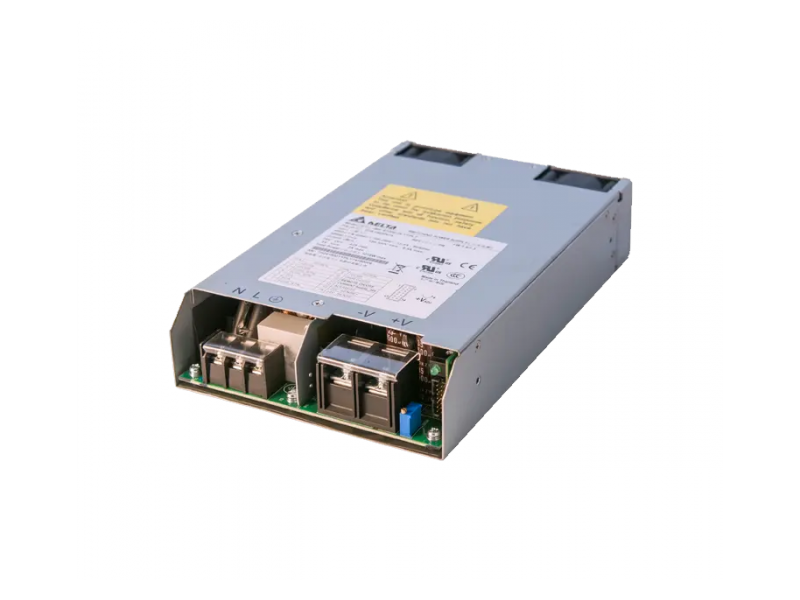

Delta IMA-S1000-12-YYPLY
Safety approval for Medical (IEC 60601-1-2), Industrial (IEC 62368) and IT Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc Wide adjustable...
Cena bez pdv-a: 36.537,85 |
Cena sa pdv-om: 43.845,42 |
- Safety approval for Medical (IEC 60601-1-2), Industrial (IEC 62368) and IT
- Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc
- Wide adjustable output voltage range (+/- 20%)
- 5 Vdc standby output
- High efficiency: up to 94%
- Size: 5 x 8.25 x 1.6 in (1U design)
- Variable speed fan control
- Low acoustic noise level of less than 39 dB(A)
- Active current sharing
- 2 × MOPP
- PMBus™compatible for control, programming and monitoring
- 500,000 hour MTBF
- Optional conformal coating
Output Voltage
12V
Output Power
1000W
Output Current
84A
Input Voltage Range
80-275Vac
Dimensions (L x W x H)
209.5 x 127 x 40 mm
8.25” x 5.00” x 1.57”
Unit Weight
1.6 kg (3.53 lb)
-
Datasheet IMA-S1000-12-YYPLY
