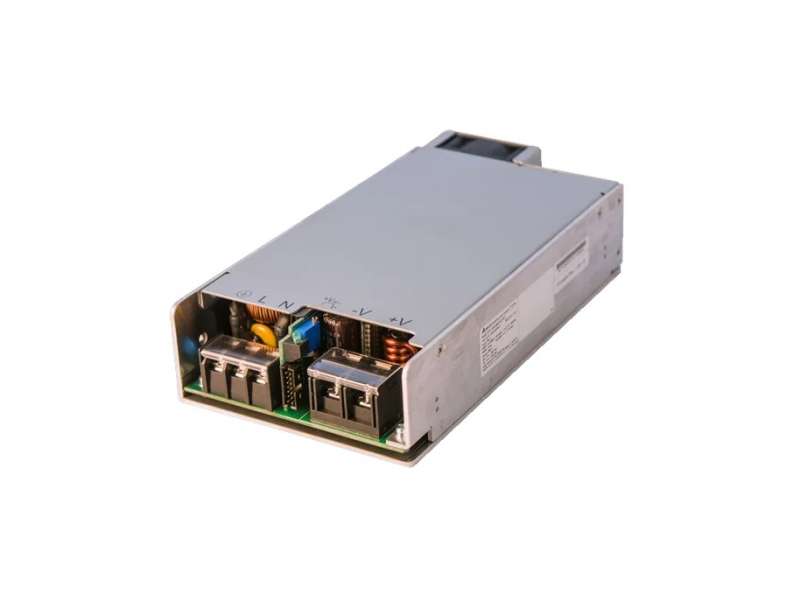

Delta IMA-S600-24-ZYPLY

Delta IMA-S600-24-ZYPLY

Safety approval for Medical (IEC 60601-1-2), Industrial (IEC 62368) and IT Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc Wide adjustable...

Brand: Delta
Šifra: IMA-S600-24-ZYPLY
Dostupnost: Proveriti dostupnost
Cena bez pdv-a: 22.166,89
Cena sa pdv-om: 26.600,26

  • Safety approval for Medical (IEC 60601-1-2), Industrial (IEC 62368) and IT
  • Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc
  • Wide adjustable output voltage range (+/- 20%)
  • 5 Vdc standby output
  • High efficiency: up to 94%
  • Size: 4 x 8 x 1.6 in (1U design)
  • Variable speed fan control
  • Low acoustic noise level of less than 38.5 dB(A)
  • Active current sharing
  • 2 x MOPP
  • PMBus™ compatible for control, programming and monitoring
  • 500,000 hour MTBF
  • Optional conformal coating

Output Voltage

24V

Output Power

600W

Output Current

25A

Input Voltage Range

80-275Vac

Dimensions (L x W x H)

203.1 x 101.6 x 40.6 mm

8.00” x 4.00” x 1.60”

Unit Weight

1.1 kg (2.43 lb)


  • Datasheet IMA-S600-24-ZYPLY

    Datasheet IMA-S600-24-ZYPLY
