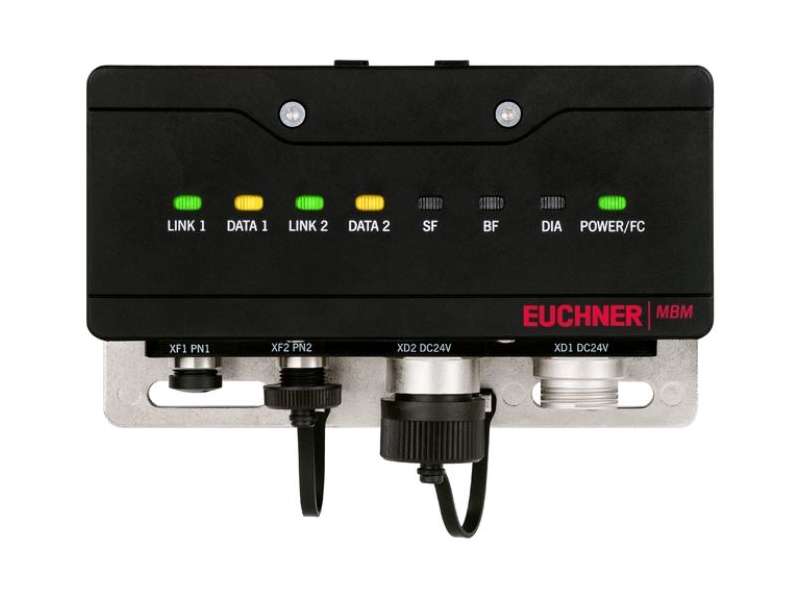

MBM-PN-S4-MLI-3B-156312 (Order no. 156312)
Bus module MBM-PN... (M12 connection, D-coded, Power 7/8")
- For connecting MGB2 or MCM modules
- Connection to PROFINET with PROFIsafe
- Connection via plug connector M12, D-coded
- Remote or direct mounting
- Integrated switch
- Compatible with all Modular devices
PROFINET interface
Plug connector M12 D-coded (7/8" plug and M12 plug, D-coded) according to IEC 61076-2-101
PROFINET switch
Linear topology network structure due to integrated switch (supports MRP).
MLI connections (module plug connector)
An MGB2 Modular or an MCM Modular can be connected directly to a bus module (direct plug). Alternatively, the modules can be connected using commercially available connecting cables M12, 5-pin (cable connect).
Approvals
Electrical connection ratings
| Connecting cable | |
| MLI | 5-pin, M12x1 |
| Current consumption | max. 150 mA |
| Rated insulation voltage Ui | 75 V |
| Rated impulse withstand voltage Uimp | 0.5 kV |
| EMC protection requirements | EMC Directive 2014/30/EU |
| maximum feed-in current in the connection block | |
| XD1, XD2 | max. 6000 mA |
| Safety class | III |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Power supply XD1, XD2 | |
| Fusing | |
| external | min. 1 A slow blow |
| Operating voltage DC | |
| L1 | 24 V DC -15% ... +15% |
| Auxiliary voltage DC | |
| L2 | 24 V DC -15% ... +15% |
Mechanical values and environment
| Connection | |
| 7/8" Power | |
| according to IEC 61076-2-101, Profinet I/O cable, at least cat. 5e | M12. D-coded, screened |
| 7/8" Power | |
| according to IEC 61076-2-101, Profinet I/O cable, at least cat. 5e | M12. D-coded, screened |
| Degree of protection | IP65 |
| Material | |
| Housing | Fiber glass reinforced plastic, die-cast zinc, nickel plated |
| Installation orientation | any |
| Shock and vibration resistance | according to EN IEC 60947-5-3 |
| Ambient temperature | |
| at UB = 24V DC | -25 ... +55 °C |
| ML1C/ML2C | |
| Connection type | Male plug |
| Connection | Screw terminal |
| Type specification | M12 EN 61076-2-101 / A-coded |
| Number of pins | 5 |
| Insertion cycles | 100 |
| ML1D | |
| Connection type | Male plug |
| Connection | Connector (unlocked) |
| Number of pins | 5 |
| Insertion cycles | 100 |
Reliability values acc. to EN ISO 13849-1
| Mission time | 20 y |
| Performance Level | PL e |
| PFHD | 3.45 x 10-9 |
| Safety Integrity Level | SIL 3 (EN 62061:2005) |
Interface, bus
| Bus data protocol | Profinet (IEC 61158 type 10) |
| Safety data protocol | Profisafe (IEC 61784-3-3) |
| Data interface | Ethernet |
-
DATA Multilang 03 ast 1945482
