EUCHNER Electronic-Key adapter with Ethernet TCP/IP interface FSA version ; 099265
EKS-A-IEXA-G01-ST02/03/04 Electronic-Key adapter with Ethernet TCP/IP interface Read/write system Remote installation Electronic-Key adapter and electronics in one...
Price on request
EKS-A-IEXA-G01-ST02/03/04
- Electronic-Key adapter with Ethernet TCP/IP interface
- Read/write system
- Remote installation
- Electronic-Key adapter and electronics in one housing
- Reliable retention of the Electronic-Key, even if there is heavy vibration
- Transfers the data from the Electronic-Key to a control system for processing
- Connection to PC
- Open communication commands at the lowest level
- Connection to the user software possible via ActiveX® module under Windows®
- Various options for address assignment, also using DIP switches
- Version FSA (For Safety Applications)
Approvals
Mechanical values and environment

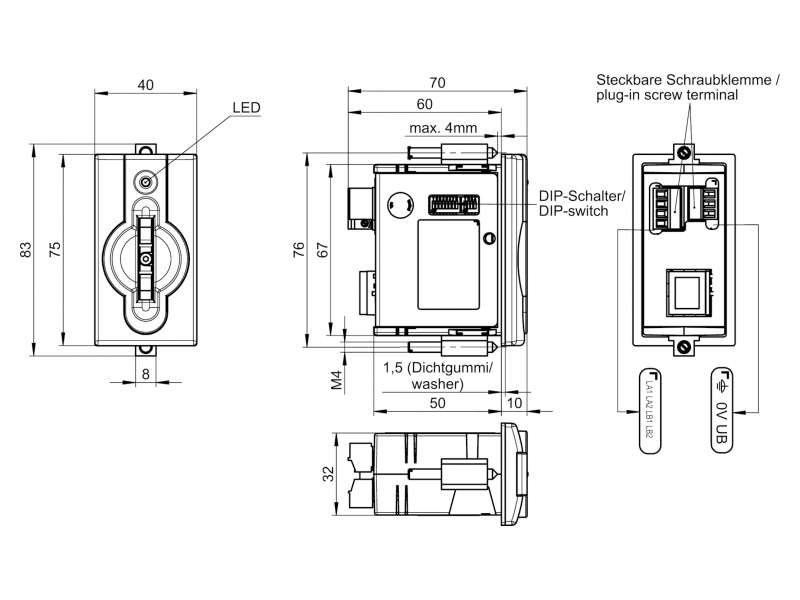

| Mounting cut-out | |
| according to DIN EN 61554 | 33x68 mm |
| Housing material | |
| Housing | PA6-GF30 gray |
| Ambient temperature | 0 ... 55 °C |
| Degree of protection | IP67 in installed state (only access side) |
| Installation orientation | On the front |
| Industrial Ethernet | |
| Connection | RJ-45 socket |
Electrical connection ratings
| LED display | |
| Red | Fault |
| Green | Operational |
| Yellow | Key in operating distance |
| Industrial Ethernet | |
| Connecting cable | Star topology wiring |
| Min.2x2 twisted pair copper cable shielded, min. Cat. 5 | |
| Power supply | |
| Operating voltage DC | 20 ... 24 ... 28 V DC |
| Current consumption | max.150 mA |
| Parameters for the outputs LA and LB | |
| Switching voltage | 24 ... 30 V |
| Switching current | 1 ... 10 ... 50 mA With short circuit protection max. 100 times |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 24V 50mA |
| AC-12 | 24V 50mA |
| DC-12 | 24V 50mA |
| Utilization category according to EN 60947-5-2 | |
| DC-13 | 24V 50mA |
| Connection cross-section | 0,14 ... 1,5 mm² |
| Discrepancy time | 200 ms Difference time between outputs (LB first) |
Interface, bus
| Industrial Ethernet | |
| Data protocol | TCP/IP |
| Data rate | 10/100 Mbit/s |
| Data interface | Ethernet (IEEE 802.3) |
Other
| Parameters for the outputs LA and LB | |
| Additional feature | max.1 Capacitive load per output in µF |
| 35 Resistance in switched-on state in Ohm |
-
403457
