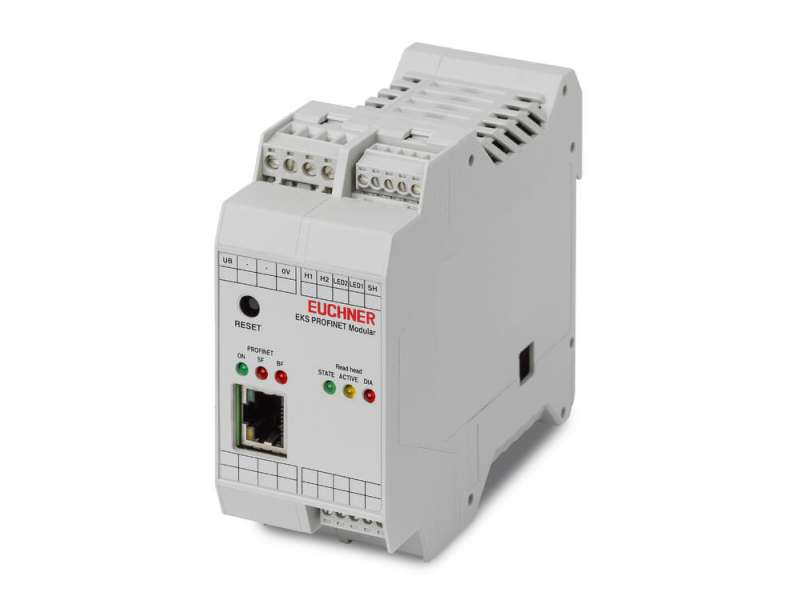

EUCHNER Interface adapter EKS PROFINET modular ; 122352

EUCHNER Interface adapter EKS PROFINET modular ; 122352 - slika 1

EUCHNER Interface adapter EKS PROFINET modular ; 122352

EKS-A-AIX-G18 Interface adapter with PROFINET IO interface read/write system Usage in conjunction with Electronic-Key adapter FHM A complete read/write station comprises...

Brand: EUCHNER
Product Code: 122352
Availability: Check availability

Price on request

EKS-A-AIX-G18

Interface adapter with PROFINET IO interface
read/write system
Usage in conjunction with Electronic-Key adapter FHM
A complete read/write station comprises an Electronic-Key adapter FHM and a modular interface adapter
Transfers the data from the Electronic-Key to a control system for processing
Connection to PLC
PROFINET protocol, cyclic data transfer to control system
Interfacing via GSDML file
Various options for address assignment, also using DIP switches
IMPORTANT: The plug-in connection terminals are not included with the interface adapter and must be ordered separately.

Approvals

Mechanical values and environment

Housing material
Housing	PA6.6 gray
Ambient temperature	0 ... 55 °C

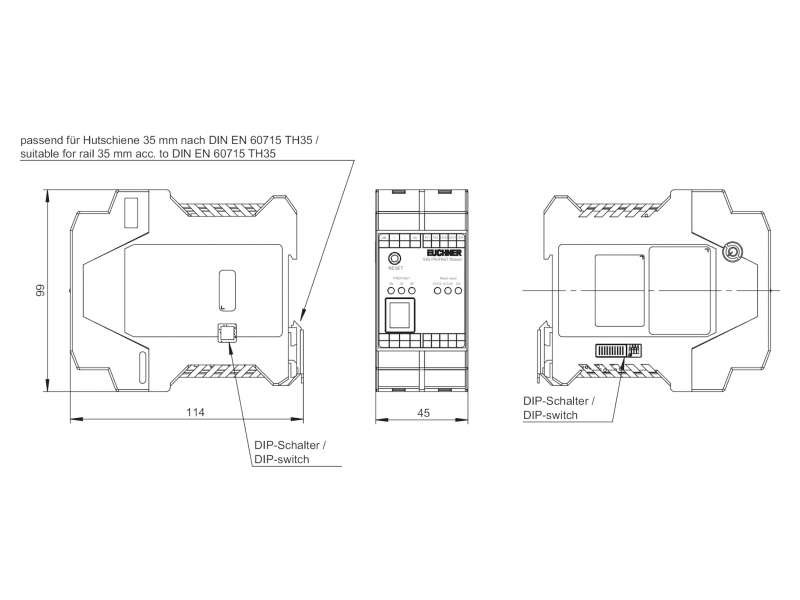

Mounting method	Mounting rail 35mm according to DIN EN 60715 TH35

Electrical connection ratings

Operating voltage DC	20 ... 24 ... 28 V DC
Current consumption
Without load	max.150 mA

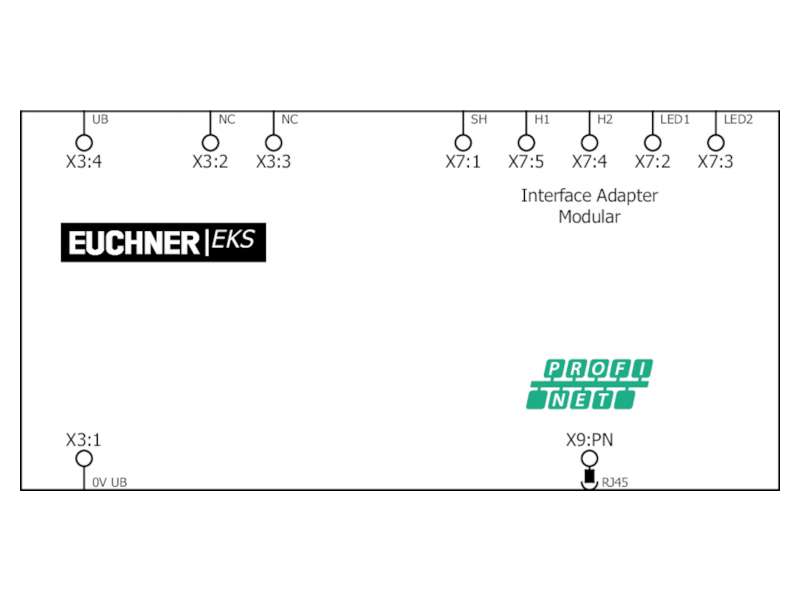

Connection cross-section
Operating voltage, screw terminal 2x2-pin	0,2 ... 2,5 mm²
Electronic-Key adapter, screw terminal 5-pin	0,2 ... 1,5 mm²
	PROFINET LED indicator
LED display
Profinet	active / green
	system error / red
	bus error / red
	Read head LED indicator
LED display
Read head	readiness for operation / green
	Electronic-Key in the operating distance / yellow
	fault / red
	PROFINET interface
Connecting cable	min. 2x2 twisted pair copper cable shielded, min. cat. 5
