EUCHNER Locking set MGB-L2HE-ARA-R-121054; 121054
Locking set MGB-L2HE-ARA... (guard locking by solenoid force) with 2 pushbuttons Guard locking with guard lock monitoring Can be connected in series with other AR...
Price on request

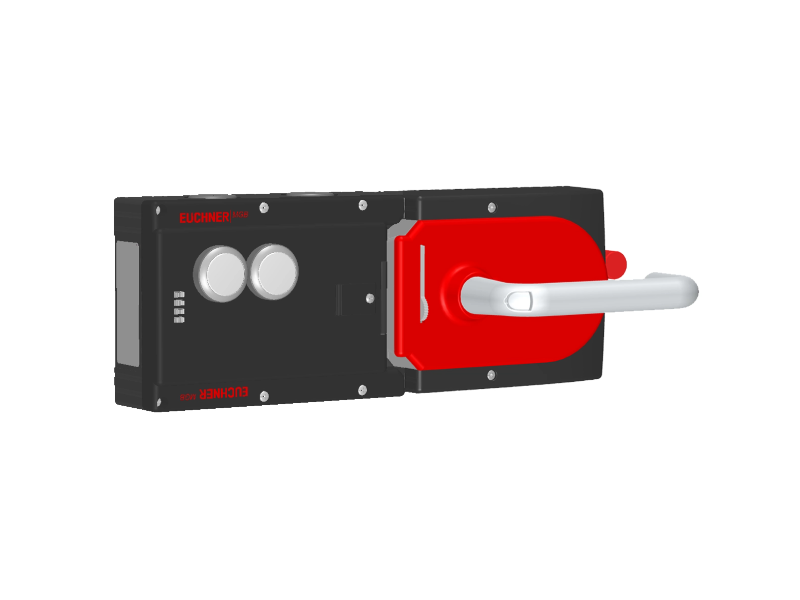

Locking set MGB-L2HE-ARA... (guard locking by solenoid force) with 2 pushbuttons
- Guard locking with guard lock monitoring
- Can be connected in series with other AR devices (e.g. CES-AR and CET-AR)
- 2 pushbuttons (illuminated)
- With lens set, 6 pcs.
- With cable entry
- With escape release
- Unicode
Approvals
Handle modules MGB-H-AA1A1-R-100464 (Order no. 100464)
Mechanical values and environment
| Installation orientation | Door hinge DIN right |
| Degree of protection | IP65 |
| Ambient temperature | -20 ... +55 °C |
| Material | |
| Housing | Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel |
Miscellaneous
| Product version number | V3.0.0 |
Escape release MGB-E-A-100465 (Order no. 100465)
Mechanical values and environment
| Installation orientation | any |
| Mechanical life | 1 x 10⁶ |
| Ambient temperature | -30 ... +55 °C |
| Material | |
| Housing | Die-cast zinc/stainless steel, powder-coated |
Miscellaneous
| Product version number | V2.0.0 |
Locking modules MGB-L2-ARA-AL1A1-M-R-121053 (Order no. 121053)
Operating and display elements
| Occupancy diagram | L1 |
| Item | Extras | Color | Designation1 | Number | LED | Switching element | Slide-in label | Note slide-in label | Version |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1NO | Illuminated pushbutton | |||||||
| 2 | 1NO | Illuminated pushbutton |
Electrical connection values
| Connection cross section | |
| (rigid/flexible) with cable end sleeve according to DIN 46 228/1 | 0.25 ... 1.5 mm² |
| (rigid/flexible) | 0.13 ... 1.5 mm² |
| (rigid/flexible) with cable end sleeve with collar according to DIN 46 228/1 | 0.25 ... 0.75 mm² |
| Rated insulation voltage Ui | 30 V |
| Rated impulse withstand voltage Uimp | 1.5 kV |
| Discrepancy time | |
| between FO1A and FO1B | max. 10 ms |
| Utilization category | |
| DC-13 | 24 V 200 mA |
| Risk time according to EN 60947-5-3 | max. 350 ms |
| Risk time according to EN 60947-5-3, extension for each additional device | max. 5 ms |
| Safety class | III |
| Transponder coding | Unicode |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Solenoid control input IMP1, IMP2, IMM | |
| Test pulse duration | max. 5 ms |
| Test pulse interval | min. 100 ms |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | UA V |
| Switching current | 1 ... 10 mA |
| LED power supply | 24 V DC |
| Monitoring outputs OD, OT, OL, OI | |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | UA-2V ... UA V DC |
| Output current | max. 50 mA |
| Safety outputs FO1A, FO1B | |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | |
| UFO1A /UFO1B HIGH | UB-2V ... UB V DC |
| UFO1A /UFO1B LOW | 0 ... 1 V DC |
| Output current | |
| per safety output FO1A / FO1B | 1 ... 200 mA |
| Test pulse duration | max. 1 ms |
| Test pulse interval | min. 100 ms |
| Power supply UA | |
| Operating voltage DC | |
| UA | 24 V DC -15% ... +10% |
| Current consumption | |
| IUA | max. 375 mA |
| Power supply UB | |
| Operating voltage DC | |
| UB | 24 V DC -15% ... +10% |
| Current consumption | |
| IUB | max. 80 mA |
Mechanical values and environment
| Connection type | Cable entries M20x1.5 |
| Installation orientation |
