Name: EUCHNER Non-contact safety switch CES-AR-CR2-AH-SG-105751; 105751
Brand: EUCHNER
SKU: 105751
Availability: OutOfStock

EUCHNER Non-contact safety switch CES-AR-CR2-AH-SG-105751; 105751

Non-contact safety switch CES-AR-CR2-... , plug connector M8 Safety switch with integrated evaluation electronics Up to 20 switches in series Short circuit monitoring...

Brand: EUCHNER
Product Code: 105751
Availability: Check availability

Price on request

Description
Specification

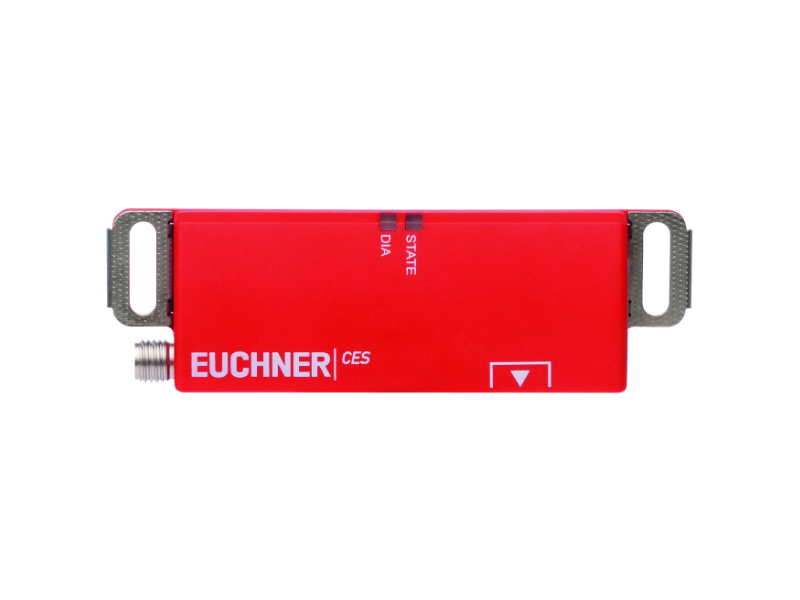

Non-contact safety switch CES-AR-CR2-... , plug connector M8

Safety switch with integrated evaluation electronics
Up to 20 switches in series
Short circuit monitoring
2 safety outputs (semiconductor outputs)
Door hinge right
Category 4 / PL e according to EN ISO 13849-1
Plug connector M8, 8-pin
Unicode
Two safety screws M4x14 included

Approvals

Workspace

Repeat accuracy R
according to EN 60947-5-2	<= 10

Electrical connection values

Fuse
external (operating voltage)	0.25 ... 8 A
Rated insulation voltage Ui	75 V
Rated impulse withstand voltage Uimp	1.5 kV
Operating voltage DC
UB	24 V DC -15% ... +15% regulated, residual ripple<5%
Turn-on time
Safety outputs	max. 400 ms
EMC protection requirements	Acc. to EN IEC 60947-5-3
Risk time according to EN 60947-5-3	max. 260 ms
Risk time according to EN 60947-5-3, extension for each additional device	max. 5 ms
Safety class	III
Current consumption	max. 50 mA
Degree of contamination (external, according to EN 60947-1)	3
	Monitoring output OUT
Output type	p-switching, short circuit-proof
Output voltage	0.8 x UB ... UB V DC
Switching current	max. 50 mA
	Safety outputs OA / OB
Output type	Semiconductor outputs, p-switching, short circuit-proof
Output voltage
HIGH U(OA,OB)	UB-1.5V ... UB V DC
LOW U(OA,OB)	0 ... 1 V DC
rated conditional short-circuit current	100 A
Discrepancy time	max. 10 ms
Utilization category
DC-13	24 V 200 mA
Off-state current Ir	max. 0.25 mA
Switching current
per safety output	1 ... 200 mA
Test pulse duration	max. 1 ms
Test pulse interval	min. 140 ms

Mechanical values and environment

Connection type	M8 plug connector, 8-pin
Tightening torque
Fixing screws	max. 1 Nm
Ready delay	10 s
Installation orientation	any
Switching frequency	max. 1 Hz
Mounting distance
between 2 switches or 2 actuators	min. 120 mm
Mounting type	Surface mounting on metal
Shock and vibration resistance	Acc. to EN IEC 60947-5-3
Degree of protection	IP67/IP69K
Ambient temperature	-25 ... +65 °C
Material
Housing	Plastic, PBT

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

	PL	Maximum SIL	PFHD	Category	Mission time
Monitoring of the guard position	PL e	-	1.9x10-9	4	20 y

Miscellaneous

The following applies to the approval according to UL

Operation only with UL Class 2 power supply or equivalent measures

In combination with actuator CES-A-BDN-06-104730

Switch-on distance	19 mm
Secured switch-off distance sar
in y direction	max. 60 mm
in x/z direction	max. 40 mm
Secured switching distance sao	min. 14 mm
Switching hysteresis	1 ... 2 mm

In combination with actuator CES-A-BLN-R2-100776, CES-A-BLN-U2-103450, CES-A-BLN-L2-104510, CES-A-BLN-U2-112710

Switch-on distance	15 mm
Secured switch-off distance sar
in x/z direction	max. 40 mm
in y direction	max. 60 mm
Secured switching distance sao	min. 10 mm
Switching hysteresis	1 ... 2 mm
