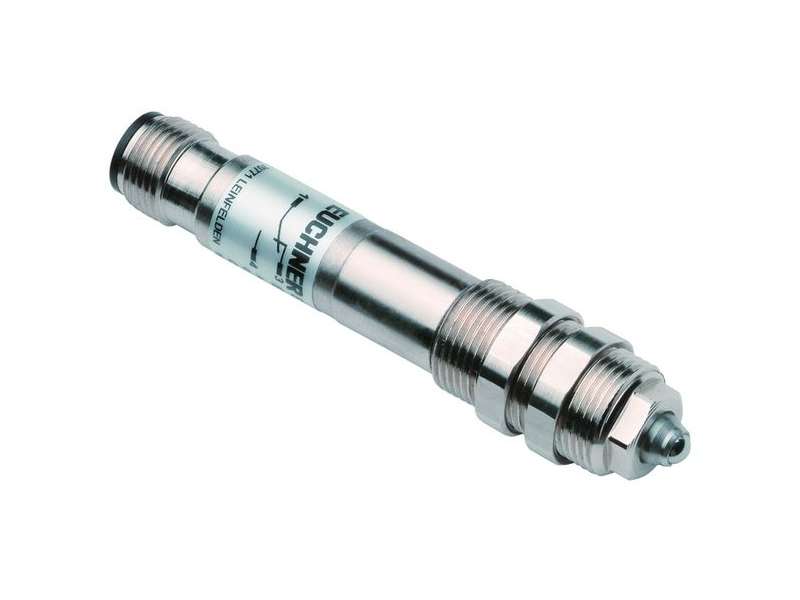

EUCHNER Precision single hole fixing limit switch EGT1/4ASEM4C1802 ; 075644

EUCHNER Precision single hole fixing limit switch EGT1/4ASEM4C1802 ; 075644

Precision single hole fixing limit switch EGT1/4 with reed contact Plunger material stainless steel Any installation orientation For mating connector with LED display...

Brand: EUCHNER
Product Code: 075644
Availability: Check availability
Price on request

Precision single hole fixing limit switch EGT1/4

  • with reed contact
  • Plunger material stainless steel
  • Any installation orientation
  • For mating connector with LED display

Switching element

Reed contact, 1 NO contact

Never switch incandescent lamps. Not even for test purposes. Single hole fixing limit switches must not be used as an end stop.



Electrical connection ratings

Rated insulation voltage Ui 50 V
Short circuit protection according to IEC 60269-1 0.4A gG
Switching current
min. at 24 V 1 mA
Switching voltage
min. 1 V
Utilization category
DC-13 0.3A 24V
AC-12 0.3A 30V

Mechanical values and environment

Approach speed max. 8 m/min
Number of NO contacts 1
Connection Plug connector M12
Degree of protection IP67
Design Thread M14 x 1
Material
Contact Rhodium
Sleeve Brass, nickel plated
Threaded section stainless steel
Actuating element Ball plunger
Actuating force
approx. 16 N
Mechanical life 30 x 10⁶
Installation orientation any
Switching principle Reed contact
Cable ambient temperature (static) -25 ... +80 °C
Repeat accuracy (absolute) ±0.01 mm

Miscellaneous

C number
C1802 Special wiring
