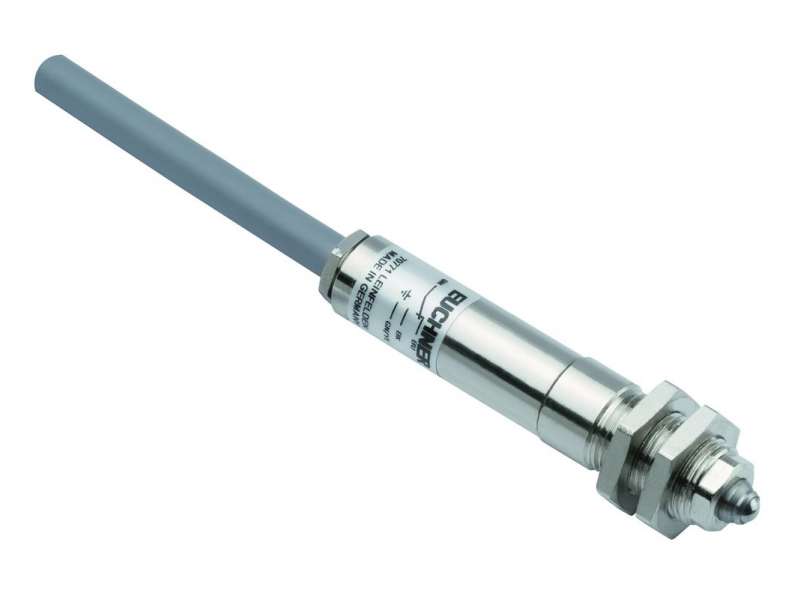

EUCHNER Precision single hole fixing limit switch EGT1-5000; 001733
Precision single hole fixing limit switch EGT1-5000; 001733 with snap-action switching element Plunger material stainless steel Any installation orientation...
Price on request
Precision single hole fixing limit switch EGT1-5000; 001733
- with snap-action switching element
- Plunger material stainless steel
- Any installation orientation
Approvals
Electrical connection values
| Connection cross section | 0.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 0.5 A 230 V |
| DC-13 | 0.6 A 24 V |
| Short circuit protection according to IEC 60269-1 | 2A gG |
| Switching voltage | |
| min. | 12 V |
| Switching current | |
| min. at 24 V | 10 mA |
Mechanical values and environment
| Approach speed | 0.01 ... 8 m/min |
| Connection type | PUR cable |
| Number NC contacts | 1 |
| Number of NO contacts | 1 |
| Design | Thread M14 x 1 |
| Actuating element | Ball plunger |
| Actuating force | |
| approx. | 20 N |
| Installation orientation | any |
| Cable length | 5 m |
| Mechanical life | 1 x 10⁶ |
| Switching principle | Snap-action switching contact |
| Degree of protection | IP67 |
| Cable ambient temperature (static) | -25 ... +80 °C |
| Material | |
| Contact | Silver alloy, gold plated |
| Threaded section | Brass, nickel plated |
| Sleeve | Brass, nickel plated |
| Repeat accuracy (absolute) | ±0.01 mm |
