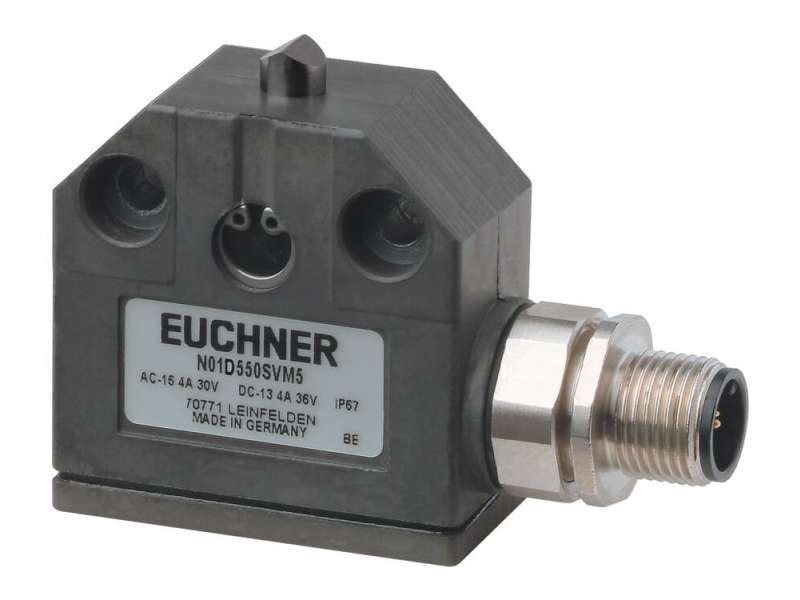

EUCHNER Precision Single Limit Switch N01D550SVM5-M ; 088623

Precision single limit switch N01, chisel plunger, plug connector M12 Plunger material stainless steel...

Brand: EUCHNER
Product Code: 088623
Availability: Check availability
Price on request

          Precision single limit switch N01, chisel plunger, plug connector M12

  • Plunger material stainless steel


Approvals

Zulassung EAC

Mechanical values and environment

Housing material Anodized die-cast alloy
Weight
Net 0,07 kg
Ambient temperature -5 ... 80 °C
Degree of protection IP64
Mechanical life 10 x 106
Contact material Silver alloy, gold flashed

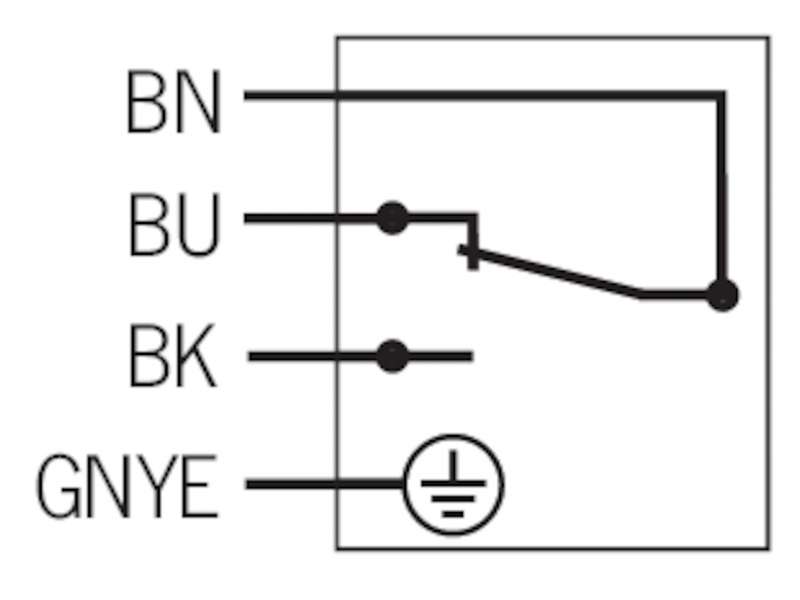

Switching principle Changeover contact with snap-action function
Installation orientation Any
Number of door position NC contacts 1 Changeover contact
Number of door position NO contacts 1
Connection

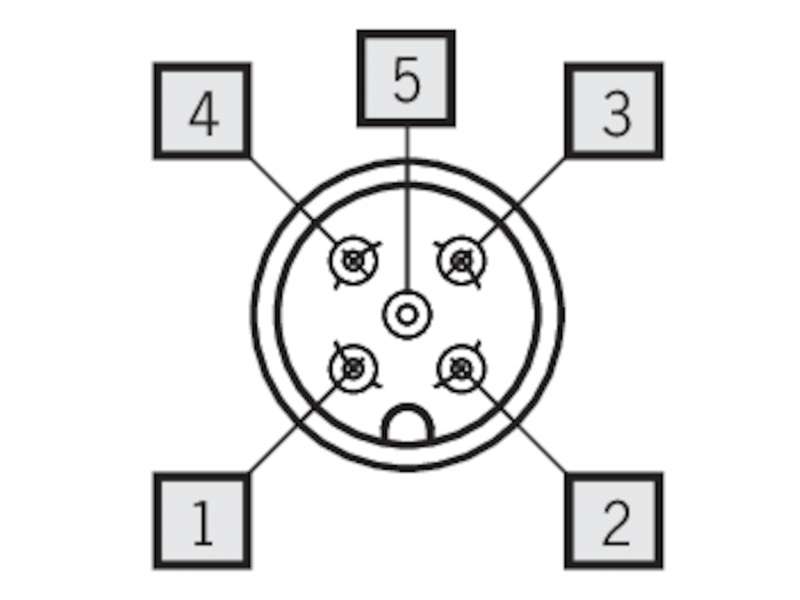

1 x Plug connector M12, adjustable
Approach speed 0,01 ... 20 m/min
Actuating element Chisel plunger
Actuating force 15 ... 20 N

Electrical connection ratings

Thermal rated current Ith 4 A
Utilization category according to EN 60947-5-1
AC-15 2A 30V
DC-13 2A 24V
Short circuit protection according to IEC 60269-1
(Fuse) 4A gG
Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 1,5 kV
Switching current
Min. at DC 24V 10 mA
  • Limit Switches Instructions

    Limit Switches Instructions
