EUCHNER Precision Single Limit Switch N01D572-M ; 087162

Precision single limit switch N01, chisel plunger Plunger material stainless steel For temperatures up to 180 °C...

Brand: EUCHNER
Product Code: 087162
Availability: Check availability
Price on request

     Precision single limit switch N01, chisel plunger

  • Plunger material stainless steel
  • For temperatures up to 180 °C

Approvals

Zulassung EAC

Mechanical values and environment

Housing material Anodized die-cast alloy
Weight
Net 0,07 kg
Ambient temperature -5 ... 125 °C
Degree of protection IP67
Mechanical life 0,5 x 106
Contact material Silver alloy, gold flashed

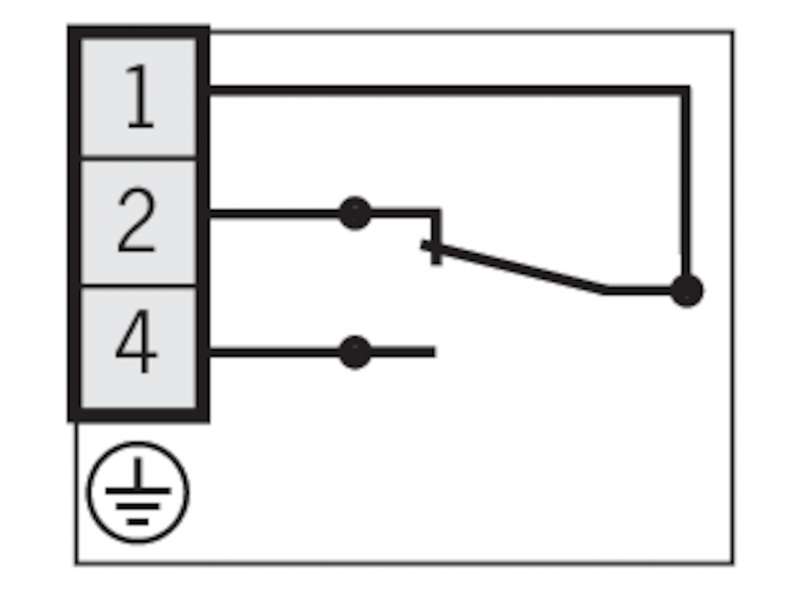

Switching principle Changeover contact with snap-action function
Installation orientation Any
Number of door position NC contacts 1 Changeover contact
Number of door position NO contacts 1
Connection
1 x M12 x 1.5
Approach speed 0,01 ... 20 m/min
Actuating element Chisel plunger
Actuating force 15 ... 20 N

Electrical connection ratings

Thermal rated current Ith 5 A
Utilization category according to EN 60947-5-1
AC-15 4A 230V
DC-13 1A 24V
Short circuit protection according to IEC 60269-1
(Fuse) 5A gG
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2,5 kV
Switching current
Min. at DC 12V 10 mA
Connection cross-section 0,14 ... 1 mm²

Reliability values according to EN ISO 13849-1

B10D 20 x 106
  • Limit Switches Instructions

    Limit Switches Instructions
