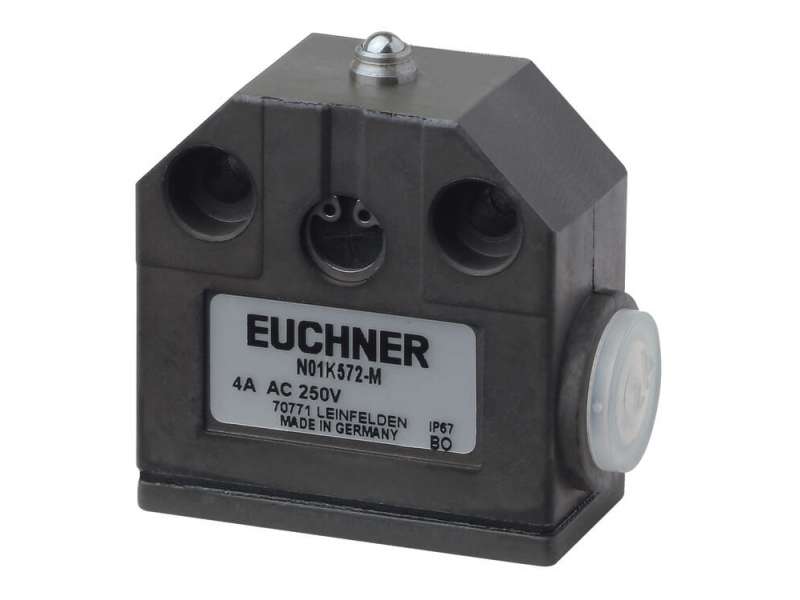

EUCHNER Precision Single Limit Switch N01K562-M ; 087152
Precision single limit switch N01, ball plunger Plunger material stainless steel...
Price on request
Precision single limit switch N01, ball plunger
- Plunger material stainless steel
Approvals
Mechanical values and environment
| Housing material | Anodized die-cast alloy |
| Weight | |
| Net | 0,07 kg |
| Ambient temperature | -5 ... 80 °C |
| Degree of protection | IP67 |
| Mechanical life | 15 x 106 |
| Contact material | Gold alloy, gold cross-cutting contact |

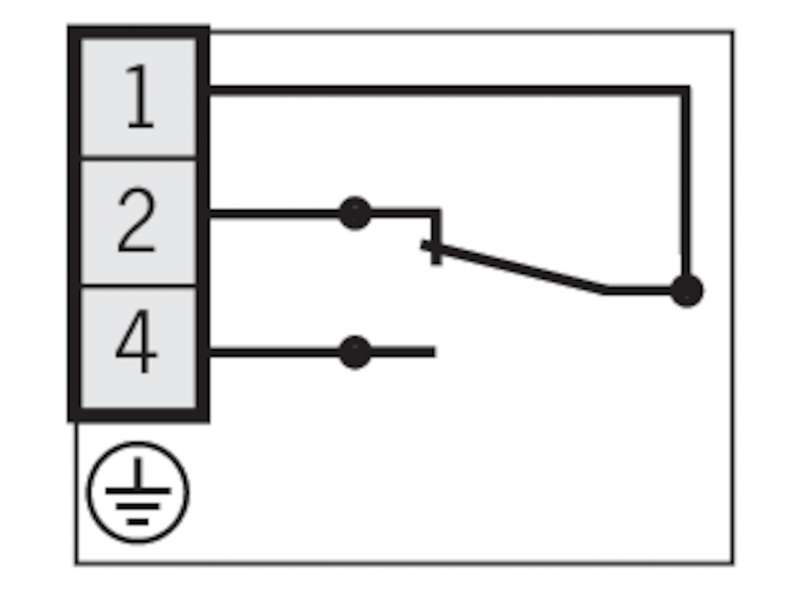

| Switching principle | Changeover contact with snap-action function |
| Installation orientation | Any |
| Number of door position NC contacts | 1 Changeover contact |
| Number of door position NO contacts | 1 |
| Connection | |
| 1 x | M12 x 1.5 |
| Approach speed | 0,01 ... 8 m/min |
| Actuating element | |
| Steel ball D = 4 mm | Ball plunger |
| Actuating force | 15 ... 20 N |
Electrical connection ratings
| Thermal rated current Ith | 0,1 A |
| Utilization category according to EN 60947-5-1 | |
| DC-13 | 100mA 30V |
| AC-12 | 100mA 30V |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 0.125A gG |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching current | |
| Min. at DC 5V | 5 mA |
| Connection cross-section | 0,14 ... 1 mm² |
-
Limit Switches Instructions
