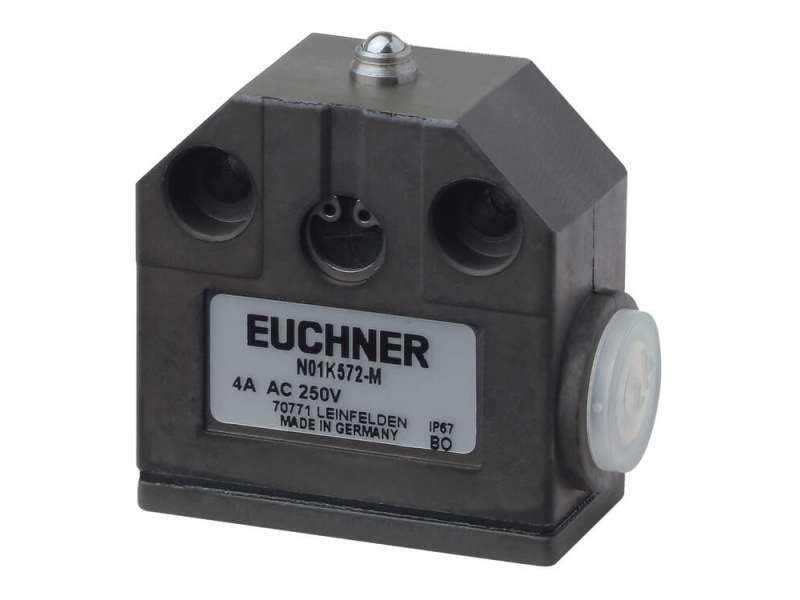

EUCHNER Precision Single Limit Switch N01K572-M ; 087164
Precision single limit switch N01, ball plunger Plunger material stainless steel For temperatures up to 180 °C...
Price on request
Precision single limit switch N01, ball plunger
- Plunger material stainless steel
- For temperatures up to 180 °C
Approvals
Mechanical values and environment
Housing material | Anodized die-cast alloy |
Weight | |
Net | 0,07 kg |
Ambient temperature | -5 ... 125 °C |
Degree of protection | IP67 |
Mechanical life | 0,5 x 106 |
Contact material | Silver alloy, gold flashed |
Switching principle | Changeover contact with snap-action function |
Installation orientation | Any |
Number of door position NC contacts | 1 Changeover contact |
Number of door position NO contacts | 1 |
Connection | |
1 x | M12 x 1.5 |
Approach speed | 0,01 ... 8 m/min |
Actuating element | |
Steel ball D = 4mm | Ball plunger |
Actuating force | 15 ... 20 N |
Electrical connection ratings
Thermal rated current Ith | 5 A |
Utilization category according to EN 60947-5-1 | |
AC-15 | 4A 230V |
DC-13 | 1A 24V |
Short circuit protection according to IEC 60269-1 | |
(Fuse) | 5A gG |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching current | |
Min. at DC 12V | 10 mA |
Connection cross-section | 0,14 ... 1 mm² |
Reliability values according to EN ISO 13849-1
B10D | 20 x 106 |
