EUCHNER Precision single limit switch N10R-M ; 086294
Precision single limit switch N10, roller plunger Plunger material stainless steel...
Price on request
Precision single limit switch N10, roller plunger
Plunger material stainless steel
Approvals
![Zulassung EAC](https://assets.euchner.de/sirius/258929_m.jpg)
Mechanical values and environment
Housing material | |
Housing | Anodized die-cast alloy |
Weight | |
Net | 0,2 kg |
Ambient temperature | -5 ... 80 °C |
Degree of protection | IP67 |
Mechanical life | 30 x 106 |
Contact material | Silver alloy, gold flashed |
Switching principle | Snap-action switching contact |
Installation orientation | Any |

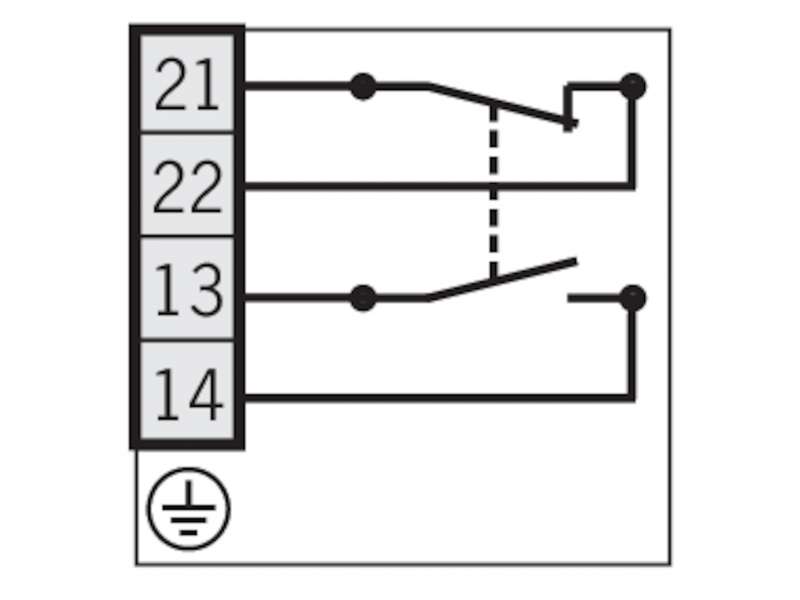

Number of door position NC contacts | 1 |
Number of door position NO contacts | 1 |
Connection | |
3 x | M20 x 1.5 |
Approach speed | 0,01 ... 80 m/min |
Actuating element | |
Plain bearing metal | Roller plunger |
Actuating force | min.20 N |
Electrical connection ratings
Thermal rated current Ith | 10 A |
Utilization category according to EN 60947-5-1 | |
AC-15 | 10A 230V |
DC-13 | 6A 24V |
AC-12 | 16A 230V |
Short circuit protection according to IEC 60269-1 | 16A gG |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2,5 kV |
Switching current | |
Min. at DC 24V | 20 mA |
Connection cross-section | 0,34 ... 1,5 mm² |
Reliability values according to EN ISO 13849-1
B10D | 20 x 106 |
