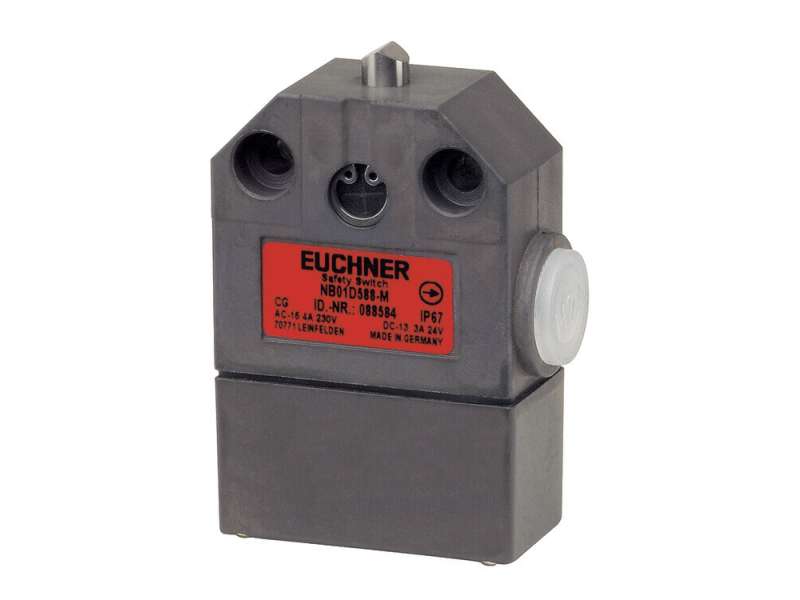

EUCHNER Precision Single Limit Switch NB01D588-M ; 088584
Single hole fixing limit switch NB01, chisel plunger With chisel plunger Cable entry M12 x 1.5...
Price on request
Single hole fixing limit switch NB01, chisel plunger
- With chisel plunger
- Cable entry M12 x 1.5
Mechanical values and environment
| Housing material | Anodized die-cast alloy |
| Weight | |
| Net | 0,1 kg |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP67 |
| Mechanical life | 10 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Slow-action switching contact |
| Installation orientation | Any |
| Number of door position positively driven contacts | 1 |
| Connection | |
| 1 x | M12 x 1.5 |
| Approach speed | 0,01 ... 20 m/min |
| Actuating element | Chisel plunger |
| Actuating force | 15 ... 20 N |
Electrical connection ratings
| Thermal rated current Ith | 10 A |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 4A 230V |
| DC-13 | 3A 24V |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 10A gG |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching current | |
| Min. at DC 5V | 1 mA |
| Connection cross-section | max.1,5 mm² |
Other
| Additional feature | With low temperature grease |
Reliability values according to EN ISO 13849-1
| B10D | 20 x 106 |
-
Limit Switches Instructions
