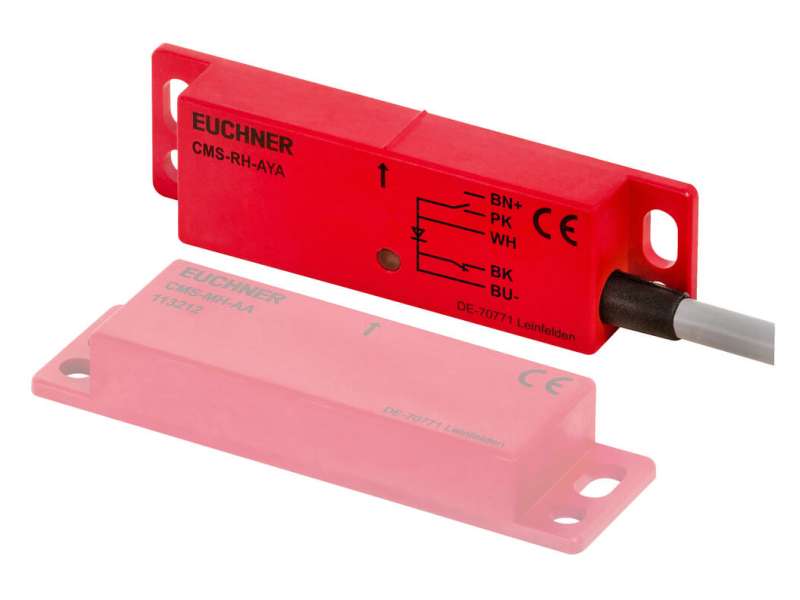

EUCHNER Read Heads with Hall Sensors CMS-RH-AYA-05VL ; 113208
Read heads CMS with Hall sensors - design A Cube-shaped version 87.5 x 25 mm Hard-wired encapsulated cable made of PVC, 5 m...
Price on request
Read heads CMS with Hall sensors - design A

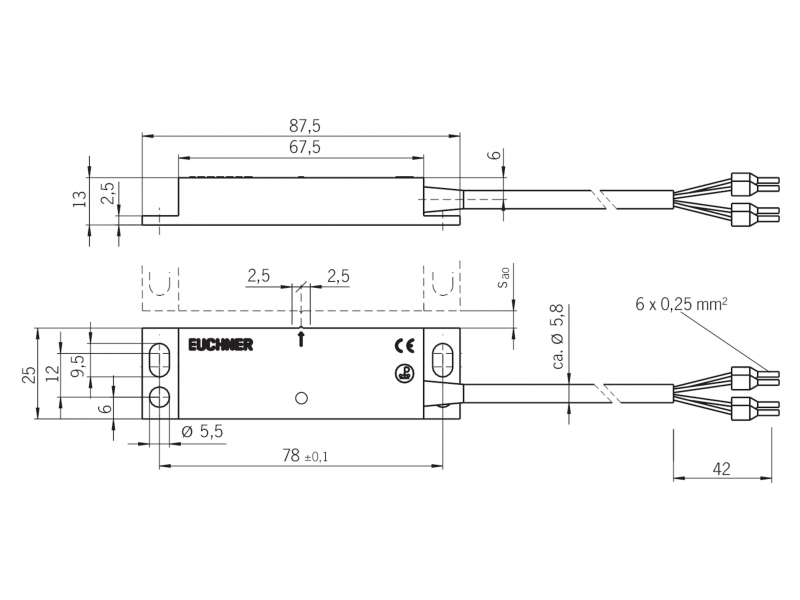

- Cube-shaped version 87.5 x 25 mm
- Hard-wired encapsulated cable made of PVC, 5 m
Approvals
Mechanical values and environment
| Design | A |
| Material | |
| Cable material | PVC |
| Housing material | Fiber glass reinforced PPS |
| Weight | |
| Net | 0,26 kg |
| Ambient temperature | -5 ... 55 °C |
| Degree of protection | IP67 |
| Installation orientation | Any, pay attention to marking |
| Tightening torque | 0,4 ... 0,5 Nm |
| Number of NC contacts | 1 NC contact |
| Number of NO contacts | 1 NO contact |
| Connection | Hard-wired encapsulated cable with cable end sleeves 0.25mm2 |
| Cable length | 5 m |
| Mechanical life | 100 x 106 |
| Method of operation | Hall sensor |
Electrical connection ratings
| Current consumption | max.35 mA |
| Switching voltage | 20 ... 35 V |
| Switching current | max.15 mA |
| Switching characteristics | NO + NC |
| LED indicator | 1 LED green |
Other
| In compliance with | EN ISO 13849-1:2015; EN 50178:1997; EN 60204-1:2006/A1:2009; EN ISO 14119:2013; EN 61000-6-2:2005; EN 61000-6-3:2007/A1:2011; EN 60947-5-3:2013 |
-
KAtalog
-
Uputstvo
