Name: EUCHNER Safety Relay ESM-2H201 ; 085620
Brand: EUCHNER
SKU: 085620
Price: 141.08 RSD
Availability: OutOfStock

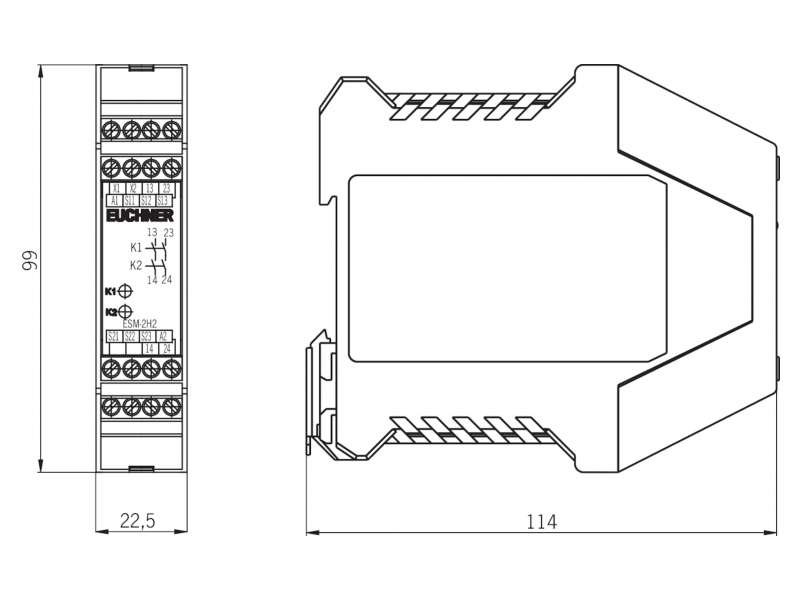

EUCHNER Safety Relay ESM-2H201 ; 085620 - slika 1

EUCHNER Safety Relay ESM-2H201 ; 085620

Safety relay ESM-2H.. ,Type IIIc evaluation unit for two-hand control Usage up to category 4 according to EN ISO 13849-1 Requirement level IIIC according to EN 574...

Brand: EUCHNER
Product Code: 085620
Availability: Check availability

Price on request

Safety relay ESM-2H.. ,Type IIIc evaluation unit for two-hand control

Usage up to category 4 according to EN ISO 13849-1
Requirement level IIIC according to EN 574
LED status indicators
Operation using 2-hand control
2 redundant safety contacts
Short-circuit and earth fault/ground fault monitoring can be selected

Approvals

Zulassung TÜV Rheinland, BMPB mit ZG: Product Safety, Functional Safety

Mechanical values and environment

Housing material	Polyamide PA6.6
Weight
Net	0,23 kg
Ambient temperature
At U_B = 24V AC	-15 ... 40 °C
At U_B = 24V DC	-15 ... 60 °C
Degree of protection	IP20
Mechanical life
operating cycles	10 x 10⁶
Contact material	AgSnO₂
Mounting method	Mounting rail 35mm according to DIN EN 60715 TH35
Connection	Connection terminals
Length of control cable
With conductor cross-section 0.75mm²	1000 m
	Safety contacts 13/14, 23/24
Number of safety contacts	2

Electrical connection ratings

Operating voltage
AC/DC	24 V -10% ... +10%
Rated insulation voltage U_i	250 V
Rated impulse withstand voltage U_imp
Leakage path/air gaps	4 kV
Overvoltage category according to IEC EN 60664-1	3
Reverse polarity protection
On version U_B =24V DC
Power consumption
at 24V DC	1,5 W
Degree of contamination (external, according to EN 60947-1)	2
Connection cross-section	0,14 ... 2,5 mm² Connection terminal (size)
Test voltage
Control system/contacts	2,5 kV
Control voltage
On S12-S13 and on S22 and S23	24 V
Control current
Both push buttons	40 mA 2x
LED indicator	2 status displays (green) for relays K1 and K2
	Safety contacts 13/14, 23/24
Type of output
NO	Relay contacts, floating and positively driven (redundant)
Switching voltage
AC	max.250 V
DC	max.24 V
Switching current	min.20 mA at 24V
Fusing
External contact fuses (safety circuit) according to IEC 60269-1	10A gG
Utilization category according to EN 60947-5-1
AC-15	3A, 250V
DC-13	3A, 24V
AC-12	6A ohmic load, 250V
DC-12	6A ohmic load, 24V
Breaking capacity according to UL	6A 250V AC / 2A 24V DC
Delay time
After operation of the push buttons	max.0,02 s Response delay time
Release time	max.0,02 s
Synchronization time	max.0,5 s

Other

In compliance with

EN 60947-5-1: 2004+A1: 2009; EN ISO 13849-1: 2015; EN 62061: 2005 + AC: 2010 + A1: 2013 + A2: 2015; EN 50581: 2012 (RoHS)

Reliability values according to EN ISO 13849-1

Performance Level	PL e
Category	4
PFH_D	1.2 x 10^-8
Number of switching cycles
≤ 0.1 A at 24 V DC	max.400000 1/Jahr
≤ 1 A at 24 V DC	max.100000 1/Jahr
≤ 3 A at 24 V DC	max.22500 1/Jahr
Mission time	20 y
