Name: EUCHNER Safety Relay ESM-BA301P ; 097230
Brand: EUCHNER
SKU: 097230
Price: 141.08 RSD
Availability: OutOfStock

EUCHNER Safety Relay ESM-BA301P ; 097230

EUCHNER Safety Relay ESM-BA301P ; 097230 - slika 1

EUCHNER Safety Relay ESM-BA301P ; 097230

Basic device ESM-BA3.., 3 safety contacts, 1 auxiliary contact, cat. 4 ESM-BA.. Usage up to category 4 according to EN ISO 13849-1 LED status indicators 1-channel...

Brand: EUCHNER
Product Code: 097230
Availability: Check availability

Price on request

Basic device ESM-BA3.., 3 safety contacts, 1 auxiliary contact, cat. 4

ESM-BA.. Usage up to category 4 according to EN ISO 13849-1
LED status indicators
1-channel or 2-channel control
3 redundant safety contacts
1 auxiliary contact (monitoring contact)
Short circuit and earth fault/ground fault monitoring
Plug-in connection terminals

Approvals

Zulassung TÜV Rheinland, BMPB mit ZG: Functional Safety, Type Approved

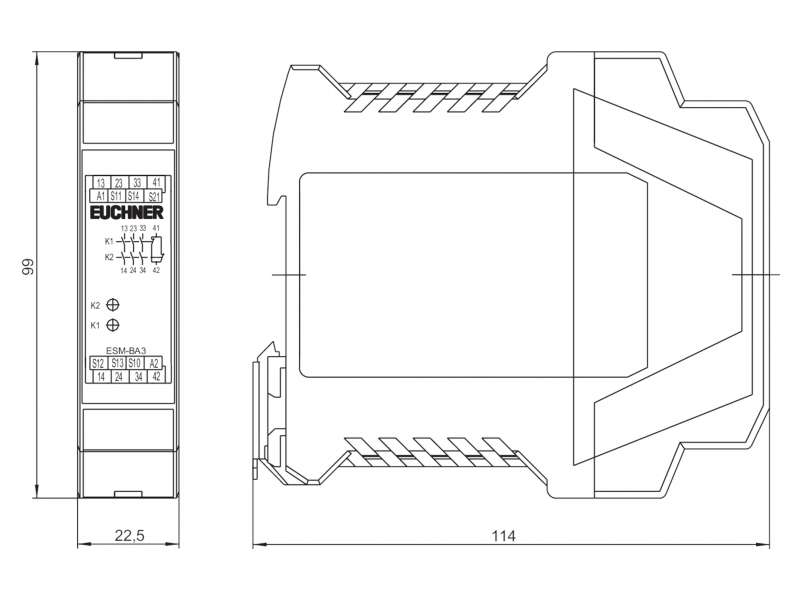

Mechanical values and environment

Housing material	Polyamide PA6.6
Weight
Net	0,23 kg
Ambient temperature	-15 ... 40 °C
Degree of protection	IP20
Mechanical life
operating cycles	10 x 10⁶
Contact material	AgSnO₂
Mounting method	Mounting rail 35mm according to DIN EN 60715 TH35
Connection	Plug-in connection terminals
Length of control cable
With conductor cross-section 0.75mm²	1000 m

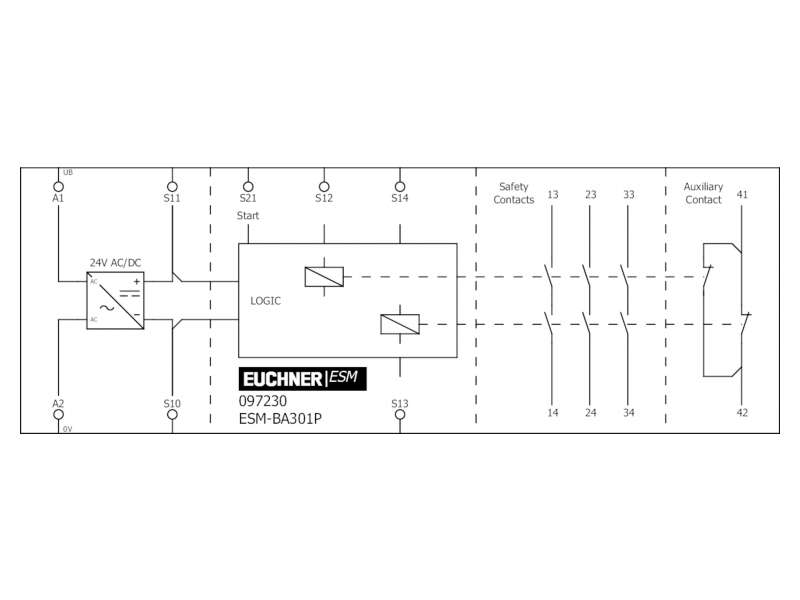

	Safety contacts 13/14, 23/24, 33/34
Number of safety contacts	3
	Auxiliary contacts 41/42
Number of auxiliary contacts	1

Electrical connection ratings

Operating voltage
AC/DC	24 V -10% ... +10%
Rated insulation voltage U_i	250 V
Rated impulse withstand voltage U_imp
Leakage path/air gaps	4 kV
Overvoltage category according to IEC EN 60664-1	3
Reverse polarity protection
On version U_B =24V DC
Power consumption
at 24V DC	2,3 W
Degree of contamination (external, according to EN 60947-1)	2
Connection cross-section	0,14 ... 2,5 mm² Connection terminal (size)
Test voltage
Control system/contacts	2,5 kV
Control voltage
On S11	24 V 18,6 ... 26 V Start button
Control current
S11...S14	60 mA
Breaking capacity
DC (for utilization category DC 13)	max.30 W
Breaking capacity (VA)
AC	max.500 VA
LED indicator	2 status displays (green) for relays K1 and K2
	Auxiliary contacts 41/42
Type of output
NC	Relay contacts, floating
Utilization category according to EN 60947-5-1
AC-12	2A ohmic load, 250V
DC-12	2 A ohm resistive load, 40V
Breaking capacity according to UL	2 A, 250 V AC / 2 A, 24 V DC per contact
	Safety contacts 13/14, 23/24, 33/34
Type of output
NO	Relay contacts, floating, positively driven (redundant)
Switching voltage
AC	max.250 V
DC	max.24 V
Switching current	min.5 mA at 24V
Cumulative current	max.15 A For all contacts
Fusing
External contact fuses (safety circuit) according to IEC 60269-1	10A gG
Utilization category according to EN 60947-5-1
AC-15	3A, 250V
DC-13	3A, 24V
AC-12	8A ohmic load, 250V
DC-12	8A ohm resistive load, 40V
Breaking capacity according to UL	8 A, 250 V AC / 3 A, 24 V DC per contact

Other

In compliance with

EN ISO 13849-1: 2015; EN 62061: 2005 + AC: 2010 + A1: 2013 + A2: 2015; EN 50581: 2012 (RoHS)

Reliability values according to EN ISO 13849-1

Performance Level	PL e
Category	4
PFH_D	1.2 x 10^-8
Number of switching cycles
≤ 1 A at 24 V DC	max.350000 1/Jahr
≤ 2 A at 24 V DC	max.100000 1/Jahr
≤ 0.1 A at 24 V DC	max.500000 1/Jahr
Mission time	20 y
