EUCHNER Safety Relay ESM-TE303 ; 085619

Contact expansion ESM-TE.., 3 safety contacts, 1 auxiliary contact, time-delay, cat. 3 Usage up to category 3 according to EN ISO 13849-1 LED status indicators Control...

Brand: EUCHNER
Product Code: 085619
Availability: Check availability

Price on request

Contact expansion ESM-TE.., 3 safety contacts, 1 auxiliary contact, time-delay, cat. 3

Usage up to category 3 according to EN ISO 13849-1
LED status indicators
Control using safety relays

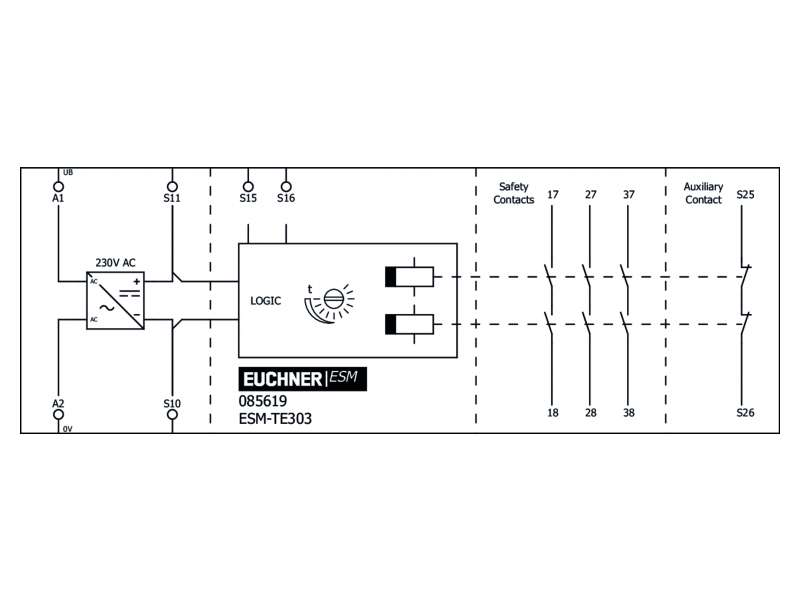

3 redundant time-delayed safety contacts
Delay time-range 1 s - 30 s
1 auxiliary contact
Earth fault/ground fault monitoring can be selected

Approvals

Zulassung TÜV Rheinland, BMPB mit ZG: Type Approved

Mechanical values and environment

Housing material	Polyamide PA6.6
Weight
Net	0,23 kg
Ambient temperature
At U_B = 115/230V AC	-15 ... 40 °C
Degree of protection	IP20
Mechanical life
operating cycles	10 x 10⁶
Contact material	AgNi-10
Mounting method	Mounting rail 35mm according to DIN EN 60715 TH35
Connection	Connection terminals
Length of control cable
With conductor cross-section 0.75mm²	1000 m
	Safety contacts 17/18, 27/28, 37/38
Number of safety contacts	3
	Auxiliary contact S25/S26
Number of auxiliary contacts	1

Electrical connection ratings

Operating voltage
AC	230 V -10% ... +10%
Power consumption (apparent power)
At 230 V AC	4 VA
Rated insulation voltage U_i	250 V
Rated impulse withstand voltage U_imp
Leakage path/air gaps	4 kV
Overvoltage category according to IEC EN 60664-1	3
Rated supply frequency	50 ... 60 Hz
Degree of contamination (external, according to EN 60947-1)	2
Connection cross-section	0,14 ... 2,5 mm² Connection terminal (size)
Test voltage
Control system/contacts	2,5 kV
Control voltage
On S11	24 V
Control current
S11...S14	40 mA
LED indicator	2 status displays (green) for relays K1 and K2
	Safety contacts 17/18, 27/28, 37/38
Type of output
NO	Relay contacts, floating, positively driven (redundant)
Switching voltage
AC	max.250 V
DC	max.24 V
Switching current	min.20 mA at 24V
Cumulative current	max.10,5 A For all contacts
Fusing
External contact fuses (safety circuit) according to IEC 60269-1	10A gG
Utilization category according to EN 60947-5-1
AC-15	4A, 250V
DC-13	2A, 24V
AC-12	6A ohmic load, 250V
DC-12	1.25A ohmic load, 24V
Breaking capacity according to UL	6A 250V AC / 2A 24V DC per contact
Switching characteristics	Safety contact with adjustable time-delay
Delay time
Continuously adjustable	1 ... 30 s
	Auxiliary contact S25/S26
Type of output
NC	As monitoring contact for safety relay
Switching characteristics	Auxiliary contact with adjustable time-delay

Other

In compliance with

EN ISO 13849-1: 2015; EN 62061: 2005 + AC: 2010 + A1: 2013 + A2: 2015; EN 50581: 2012 (RoHS)

Reliability values according to EN ISO 13849-1

Performance Level	PL d
Category	3
PFH_D	1.03 x 10^-7
Number of switching cycles
≤ 0.1 A at 24 V DC	max.400000 1/Jahr
≤ 1 A at 24 V DC	max.73000 1/Jahr
≤ 2 A at 24 V DC	max.17000 1/Jahr
Mission time	20 y
