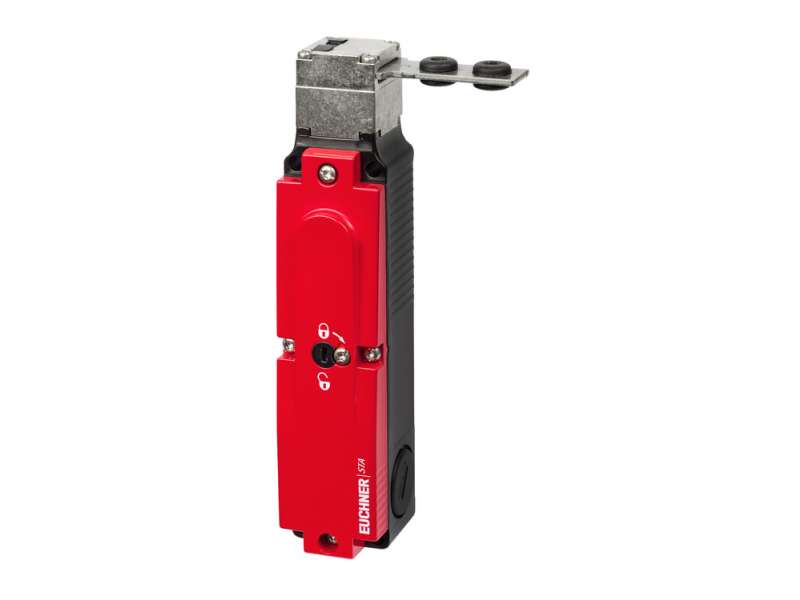

EUCHNER Safety switch STA without door monitoring contact ; 096935

EUCHNER Safety switch STA without door monitoring contact ; 096935 - slika 1

EUCHNER Safety switch STA without door monitoring contact ; 096935 - slika 2

EUCHNER Safety switch STA without door monitoring contact ; 096935

STA2A-4131A024M Safety switch STA without door monitoring contact Auxiliary release on the front Without door monitoring contact...

Brand: EUCHNER
Product Code: 096935
Availability: Check availability

Price on request

STA2A-4131A024M

Safety switch STA without door monitoring contact

Auxiliary release on the front
Without door monitoring contact

Approvals

Mechanical values and environment

Housing material	Alloy - die-cast
Weight
Net	0,6 kg
Ambient temperature	-20 ... 80 °C
Degree of protection	IP67
Mechanical life	1 x 10⁶
Contact material	Silver alloy, gold flashed
Switching principle	Slow-action switching contact
Installation orientation	Any
Number of guard lock monitoring positively driven contacts	2
Number of guard lock monitoring NO contacts	2
Connection
3 x	M20 x 1.5
Approach speed	max.20 m/min
Actuation frequency	max.1200 1/h
Guard locking principle	Open-circuit current principle
Locking force F_max	3000 N
Locking force F_Zh	2300 N
Retention force	20 N
Extraction force	30 N
Actuating force	35 N
Insertion depth	min.24,5 mm

Electrical connection ratings

Thermal rated current I_th	4 A
Utilization category according to EN 60947-5-1
AC-15	4A 230V
DC-13	4A 24V
Solenoid operating voltage
AC/DC	24 V -15% ... +10%
Short circuit protection according to IEC 60269-1
(Fuse)	4A gG
Rated insulation voltage U_i	250 V
Rated impulse withstand voltage U_imp	2,5 kV
Switching voltage
Min. at 10mA	12 V
Switching current
Min. at 24V	1 mA
Power consumption	8 W
Solenoid duty cycle	100 %
Connection cross-section	0,34 ... 1,5 mm²
