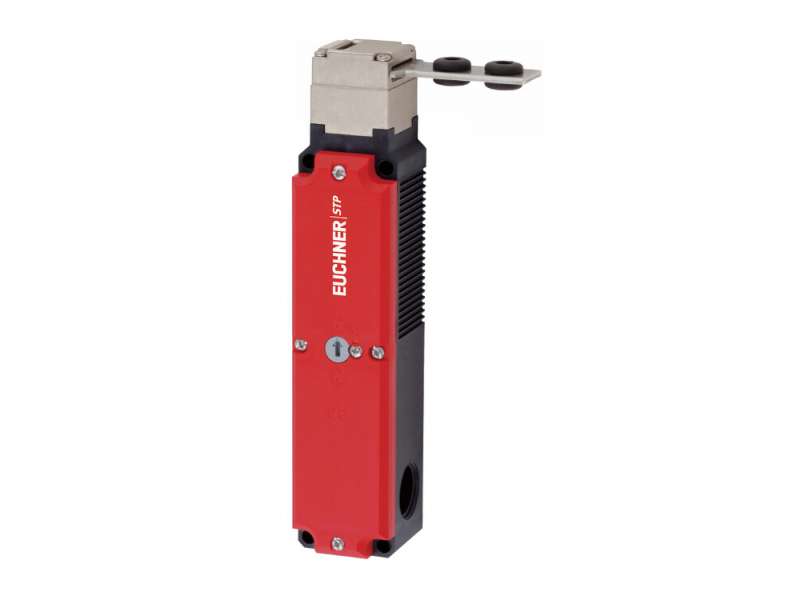

EUCHNER Safety switch STP with door monitoring contact STP3A-4121A024M; 096890
Safety switch STP with door monitoring contact ; STP3A-4121A024M Actuating head made of metal Auxiliary release on the front With door monitoring contact...
Price on request
Safety switch STP with door monitoring contact ;
STP3A-4121A024M
- Actuating head made of metal
- Auxiliary release on the front
- With door monitoring contact
Approvals
Mechanical values and environment
| Housing material | |
| Housing | Reinforced thermoplastic |
| Weight | |
| Net | 0,5 kg |
| Ambient temperature | -20 ... 55 °C |
| Degree of protection | IP67 |
| Mechanical life | 1 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Slow-action switching contact |
| Installation orientation | Any |
| Number of door position NC contacts | 1 |
| Number of door position NO contacts | 1 |

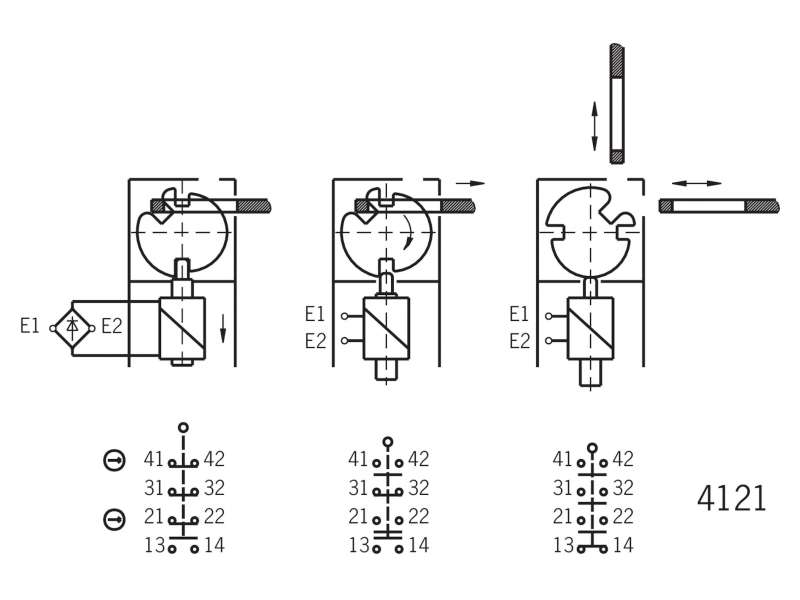

| Number of guard lock monitoring positively driven contacts | 2 |
| Connection | |
| 3 x | M20 x 1.5 |
| Approach speed | max.20 m/min |
| Actuation frequency | max.1200 1/h |
| Guard locking principle | Closed-circuit current principle |
| Locking force Fmax | 2500 N |
| Locking force FZh | 2000 N |
| Retention force | 20 N |
| Extraction force | 30 N |
| Actuating force | 35 N |
| Insertion depth | min.24,5 mm |
Electrical connection ratings
| Thermal rated current Ith | 4 A |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 4A 230V |
| DC-13 | 4A 24V |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% ... +10% |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching voltage | |
| Min. at 10mA | 12 V |
| Switching current | |
| Min. at 24V | 1 mA |
| Power consumption | 8 W |
| Solenoid duty cycle | 100 % |
| Connection cross-section | 0,34 ... 1,5 mm² |
Reliability values according to EN ISO 13849-1
| Monitoring of guard locking and the safety guard position | |
| B10D | 5 x 106 |
| Control of the guard locking | |
| Category | Depending on external control of guard locking |
| Performance Level | Depending on external control of guard locking |
| PFHD | Depending on external control of guard locking |
In combination with Actuator BETAETIGER-S-GT-SN
Mechanical values and environment
| Overtravel | 5 mm |
-
393444
