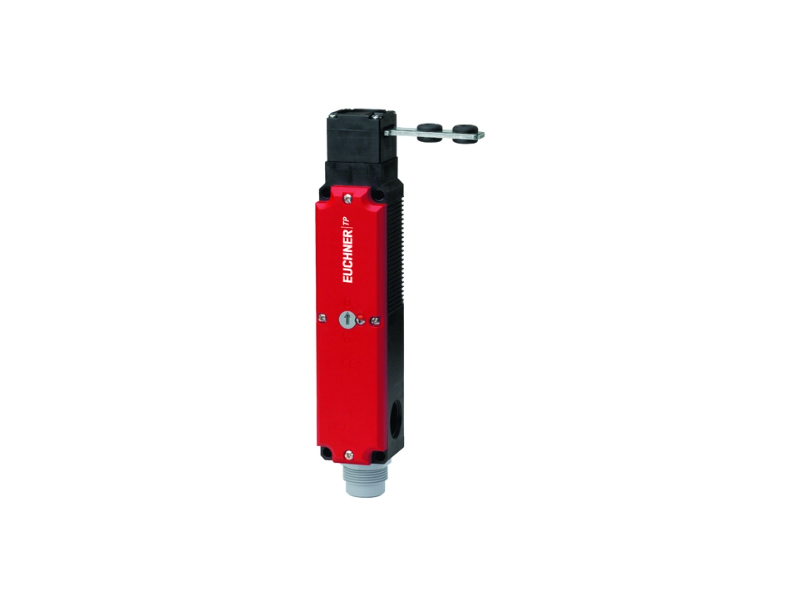

EUCHNER Safety switch TP4-4121A024SR11; 088209
Safety switch TP, plug connector SR11, with door monitoring contact Auxiliary release on the front With door monitoring contact Increased horizontal overtravel Plug...
Price on request
Safety switch TP, plug connector SR11, with door monitoring contact
- Auxiliary release on the front
- With door monitoring contact
- Increased horizontal overtravel
- Plug connector
Approvals
Electrical connection values
| Power consumption | 8 W |
| Rated insulation voltage Ui | 50 V |
| Rated impulse withstand voltage Uimp | 1.5 kV |
| Utilization category | |
| AC-15 | 4 A 50 V |
| DC-13 | 4 A 24 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% ... +10% |
| Solenoid duty cycle | 100 % |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Connection type | |
| 1 x | Plug connector SR11 |
| Number of door position NC contacts | 1 |
| Number of door position NO contacts | 1 |
| Number of guard lock monitoring positively driven contacts | 2 |
| Extraction force | 20 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 10 N |
| Installation orientation | any |
| Mechanical life | 1 x 10⁶ |
| Retention force | 10 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP65 |
| Ambient temperature | -20 ... +55 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Reinforced thermoplastic |
| Locking force Fmax | 1300 N |
| Locking force FZh | 1000 N |
| Guard locking principle | Open-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| Monitoring of guard locking and the guard position | |
| B10D | 3 x 10⁶ |
In combination with actuator ACTUATOR-P-GT
| Horizontal overtravel | 2 mm |
| Vertical overtravel | 1.5 mm |
In combination with actuator ACTUATOR-P-GNT
| Horizontal overtravel | 7 mm |
