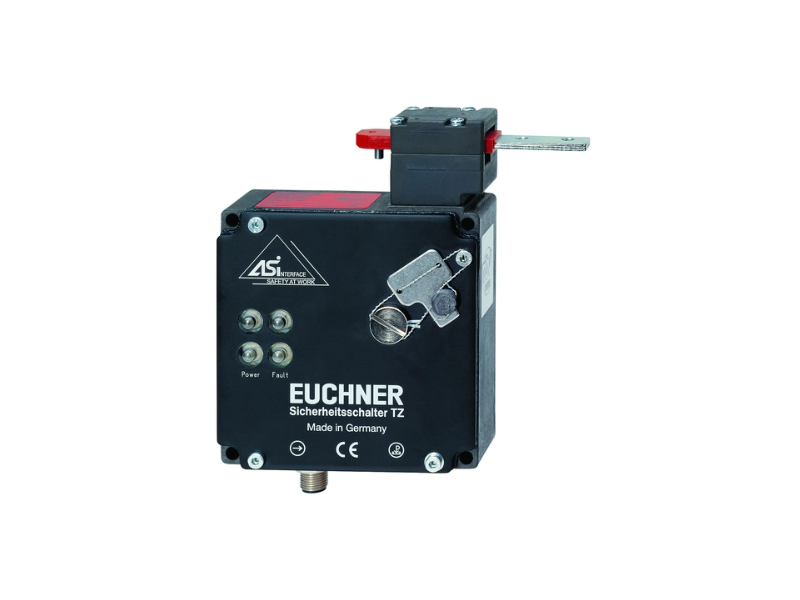

EUCHNER Safety switch TZ1LE024SEM4AS1; 086140
Safety switch TZ ASi, plug connector M12 (closed-circuit current principle) Auxiliary release on the front Actuating head fitted left Plug connector M12...
Price on request
Safety switch TZ ASi, plug connector M12 (closed-circuit current principle)
- Auxiliary release on the front
- Actuating head fitted left
- Plug connector M12
Approvals
![EAC_RU C-DE.MO05.B.00971/20](https://assets2.euchner.de/files/06/97/ast_630697.png)
![c_UL_us_E155795_2/5](https://assets2.euchner.de/files/82/74/ast_628274.png)
![DGUV_ET 19039_ET 19040](https://assets2.euchner.de/files/08/40/ast_630840.png)
![CCC_2020980305000541_CQC2008010305306207](https://assets2.euchner.de/files/07/52/ast_630752.png)
![Asi Interface_56201_](https://assets2.euchner.de/files/08/38/ast_630838.png)
Electrical connection values
ASI operating current | max. 45 mA |
ASI data in | |
according to AS-i Safety at Work | D0, D1, D2, D3 |
ASI data out | |
LED red | D1 |
Guard locking solenoid | D0 |
LED green | D2 |
ASI auxiliary voltage | |
IEC 60742, PELV | 24 V -15% ... +10% |
ASI auxiliary current | 350 mA |
ASI-LED | |
LED red | Fault |
LED green | Power |
ASI slave type | |
according to ASI specification 2.1 | ID code: B |
according to ASI specification 2.1 | EA code: 7 |
ASI voltage | 22.5 ... 30 ... 31.6 V |
Solenoid duty cycle | 100 % |
Mechanical values and environment
Approach speed | max. 20 m/min |
Approach direction | |
Actuating head left | C |
Connection type | |
1 x | Plug connector M12 |
Number of door position positively driven contacts | |
according to AS-i Safety at Work | 1 |
Number of guard lock monitoring positively driven contacts | |
according to AS-i Safety at Work | 1 D2,D3 |
Extraction force | 30 N |
Actuation frequency | max. 1200 1/h |
Actuating force | 35 N |
Installation orientation | any |
Insertion depth | 52 mm |
Mechanical life | 1 x 10⁶ |
Retention force | 10 N |
Switching principle | Slow-action switching contact |
Degree of protection | IP67 |
Ambient temperature | -25 ... +55 °C |
Material | |
Housing | Anodized die-cast alloy |
Contact | Silver alloy, gold flashed |
Guard locking principle | Closed-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
B10D | Mission time | |
---|---|---|
Monitoring of the guard position | 3x106 | 20 y |
Important! Values valid at DC-13 100 mA/24V |
In combination with actuator ACTUATOR-Z-GN
Overtravel | 16 mm |
In combination with actuator ACTUATOR-Z-G
Overtravel | 4 mm |
