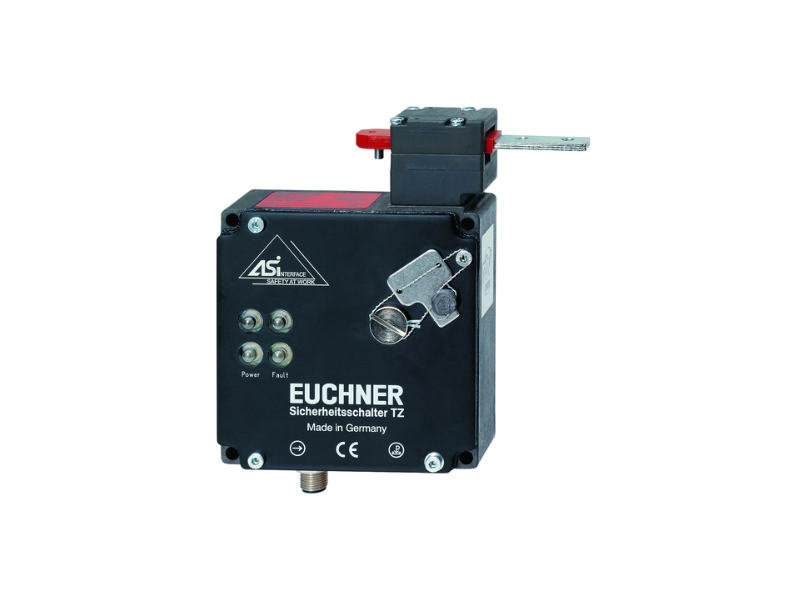

EUCHNER Safety switch TZ1RE024SEM4AS1-C1937; 090279
Safety switch TZ ASi, plug connector M12, emergency release (closed-circuit current principle) Emergency release on the front with rotary knob Actuating head fitted...
Price on request
Safety switch TZ ASi, plug connector M12, emergency release (closed-circuit current principle)
- Emergency release on the front with rotary knob
- Actuating head fitted right
Approvals
Electrical connection values
| ASI operating current | max. 45 mA |
| ASI data in | |
| according to AS-i Safety at Work | D0, D1, D2, D3 |
| ASI data out | |
| Guard locking solenoid | D0 |
| LED green | D2 |
| LED red | D1 |
| ASI auxiliary voltage | |
| IEC 60742, PELV | 24 V -15% ... +10% |
| ASI auxiliary current | 350 mA |
| ASI-LED | |
| LED red | Fault |
| LED green | Power |
| ASI slave type | |
| according to ASI specification 2.1 | ID code: B |
| according to ASI specification 2.1 | EA code: 7 |
| ASI voltage | 22.5 ... 30 ... 31.6 V |
| Solenoid duty cycle | 100 % |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Approach direction | |
| Actuating head on the right | A |
| Connection type | |
| 1 x | Plug connector M12 |
| Number of door position positively driven contacts | |
| according to AS-i Safety at Work | 1 |
| Number of guard lock monitoring positively driven contacts | |
| according to AS-i Safety at Work | 1 D2,D3 |
| Extraction force | 30 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 35 N |
| Installation orientation | any |
| Insertion depth | 52 mm |
| Mechanical life | 1 x 10⁶ |
| Retention force | 10 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +55 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Anodized die-cast alloy |
| Guard locking principle | Closed-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 3x106 | 20 y |
| Important! Values valid at DC-13 100 mA/24V | ||
Miscellaneous
| C number | |
| C1937 | with auxiliary release, special wiring |
In combination with actuator ACTUATOR-Z-G
| Overtravel | 4 mm |
In combination with actuator ACTUATOR-Z-GN
| Overtravel | 16 mm |
