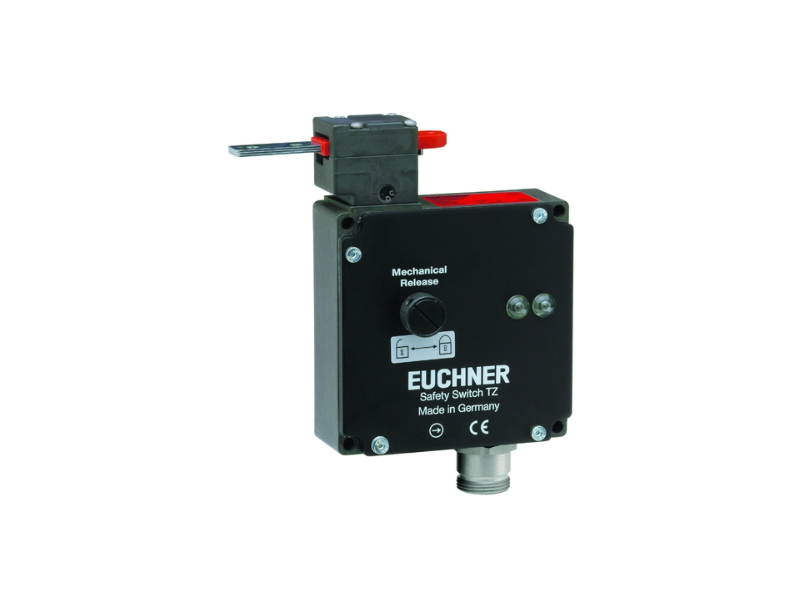

Safety switch TZ, plug connector MR10, auxiliary release

  • Auxiliary release on the front
  • Two LED displays, red and green
  • Plug connector MR10
  • Actuating head fitted left

Approvals

EAC_RU C-DE.MO05.B.00971/20c_UL_us_E155795_2/1DGUV_ET 19039_ET 19040CCC_2020980305000541_CQC2008010305306207

Operating and display elements

LED display Operating voltage corresponds to the solenoid voltage

Electrical connection values

Power consumption 10 W
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 1.5 kV
Utilization category
AC-15 4 A 230 V
DC-13 4 A 24 V
Short circuit protection according to IEC 60269-1 4A gG
Solenoid operating voltage
AC/DC 24 V -15% ... +10%
Solenoid duty cycle 100 %
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 4 A

Mechanical values and environment

Approach speed max. 20 m/min
Approach direction
Actuating head left C
Connection type
1 x Plug connector BHA10
Number of door position positively driven contacts 3
Number of guard lock monitoring positively driven contacts 4
Extraction force 30 N
Actuation frequency max. 1200 1/h
Actuating force 35 N
Lid Red
Installation orientation any
Insertion depth 52 mm
Mechanical life 1 x 10⁶
Retention force 10 N
Switching principle Slow-action switching contact
Degree of protection IP65
Ambient temperature -25 ... +80 °C
Material
Contact Silver alloy, gold flashed
Housing Anodized die-cast alloy
Locking force Fmax 2000 N
Locking force FZh 1500 N
Guard locking principle Open-circuit current principle

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

  B10D Mission time
Monitoring of the guard position 3x106 20 y
Important! Values valid at DC-13 100 mA/24V



Miscellaneous

C number
C1903 with auxiliary release

In combination with actuator ACTUATOR-Z-G

Overtravel 4 mm

In combination with actuator ACTUATOR-Z-GN

Overtravel 16 mm
