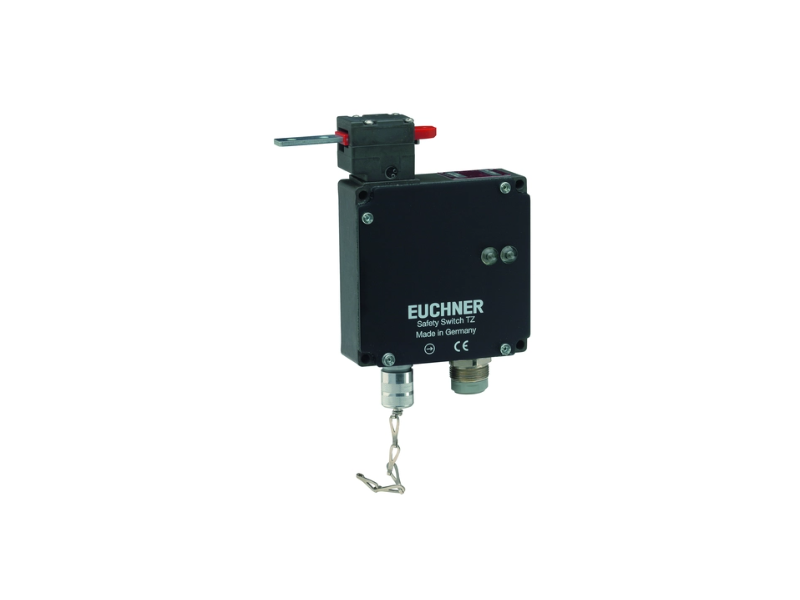

EUCHNER Safety switch TZ2RE024RC18VAB-C1803; 077149
Safety switch TZ, plug connectors RC18 and RC12, without auxiliary release Without auxiliary release Two LED displays, red and green Plug connector for switch connection...
Price on request
Safety switch TZ, plug connectors RC18 and RC12, without auxiliary release
- Without auxiliary release
- Two LED displays, red and green
- Plug connector for switch connection
- Plug connector for enabling switch
- Actuating head fitted right
Approvals
Operating and display elements
| LED display | Operating voltage corresponds to the solenoid voltage |
Electrical connection values
| Power consumption | 10 W |
| Rated insulation voltage Ui | 110 V |
| Rated impulse withstand voltage Uimp | 1.5 kV |
| Utilization category | |
| AC-15 | 4 A 110 V |
| DC-13 | 4 A 24 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% ... +10% |
| Solenoid duty cycle | 100 % |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Approach direction | |
| Actuating head on the right | A |
| Connection type | |
| 1 x | Plug connector RC18 |
| Number of door position NO contacts | 1 |
| Number of guard lock monitoring NO contacts | 1 |
| Number of door position positively driven contacts | 2 |
| Number of guard lock monitoring positively driven contacts | 2 |
| Extraction force | 30 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 35 N |
| Lid | black |
| Installation orientation | any |
| Insertion depth | 52 mm |
| Mechanical life | 1 x 10⁶ |
| Retention force | 10 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP65 |
| Ambient temperature | -25 ... +80 °C |
| Material | |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
| Locking force Fmax | 2000 N |
| Locking force FZh | 1500 N |
| Guard locking principle | Open-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 3x106 | 20 y |
| Important! Values valid at DC-13 100 mA/24V | ||
Miscellaneous
| C number | |
| C1803 | without auxiliary release with connection for enabling switch (RC12) |
In combination with actuator ACTUATOR-Z-G
| Overtravel | 4 mm |
In combination with actuator ACTUATOR-Z-GN
| Overtravel | 16 mm |
