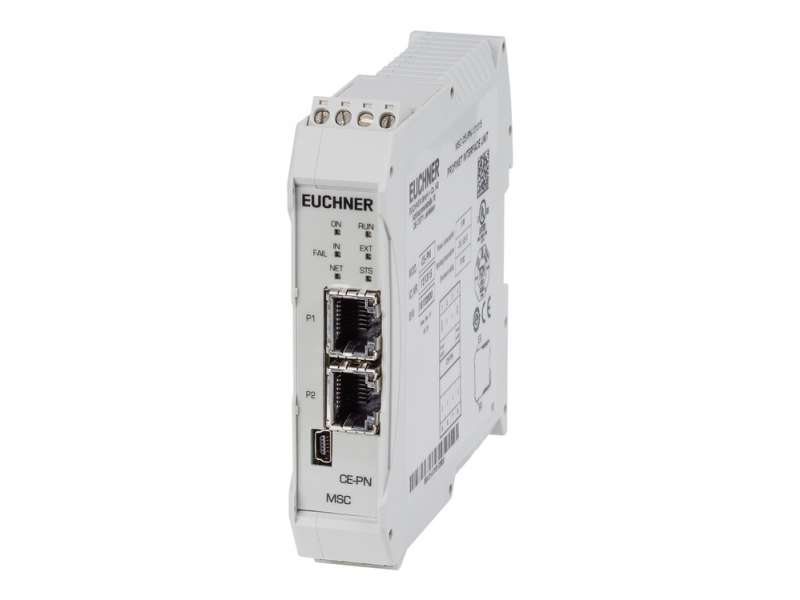

EUCHNER Small Control System MSC-CE ; 121315
Expansion device MSC-CE PROFINET fieldbus module Compact housing with width of only 22.5mm Straightforward diagnostics via LED displays Plug-in screw terminals (expansion...
Price on request
Expansion device MSC-CE
- PROFINET fieldbus module
- Compact housing with width of only 22.5mm
- Straightforward diagnostics via LED displays
- Plug-in screw terminals (expansion plug included)
Approvals
![Richtlinie CE](https://assets.euchner.de/sirius/21274_m.jpg)
![Zulassung TÜV Süd, BMPB mit ZG: Safety tested, Production monitored, Functional Safety](https://assets.euchner.de/sirius/86067_m.jpg)
![Zulassung c_UL_us LISTED](https://assets.euchner.de/sirius/37293_m.jpg)
Mechanical values and environment
Material | |
Housing | Polyamide |
Ambient temperature | -10 ... +55 °C |
Atmospheric humidity | 10 ... 95 % rH |
Degree of protection | IP20 |
Mounting method | Mounting rail 35mm |
Connection | Plug-in screw terminal |
USB port for PC connection | |
Connection | USB type B - Mini |
Cable length | max.3 m |
Fieldbus connection | |
Connection | RJ-45 socket |
Electrical connection ratings
Operating voltage DC | |
UB | 24 V DC -20% ... +20% PELV |
Overvoltage category according to IEC EN 60664-1 | II |
Degree of contamination according to EN 60664-1 | 2 |
Connection cross-section | 0,5 ... 2,5 mm² Screw terminal |
Power consumption | 5 W |
Interface, bus
Fieldbus connection | |
Data protocol | PROFINET |
