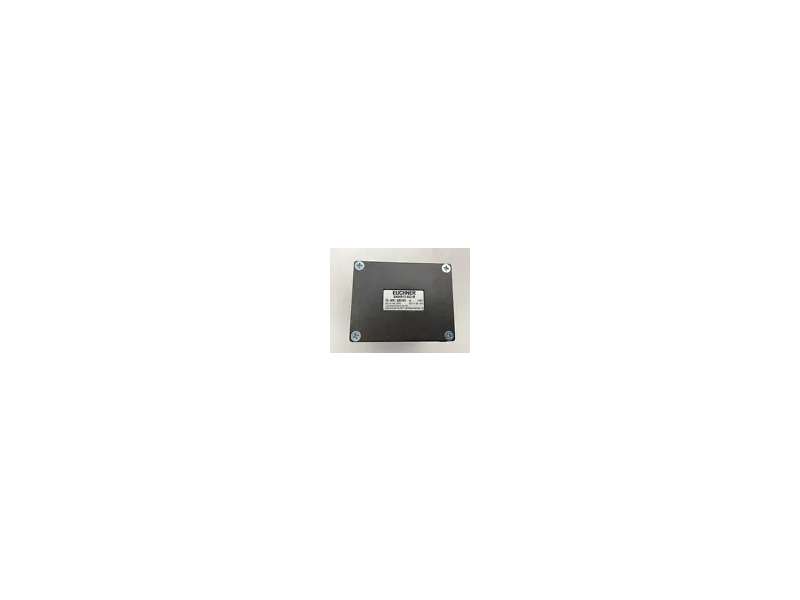

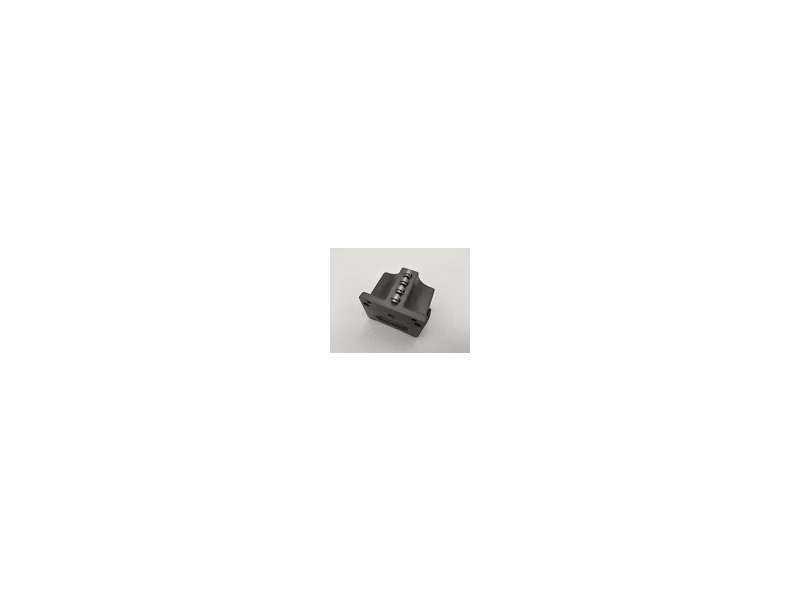

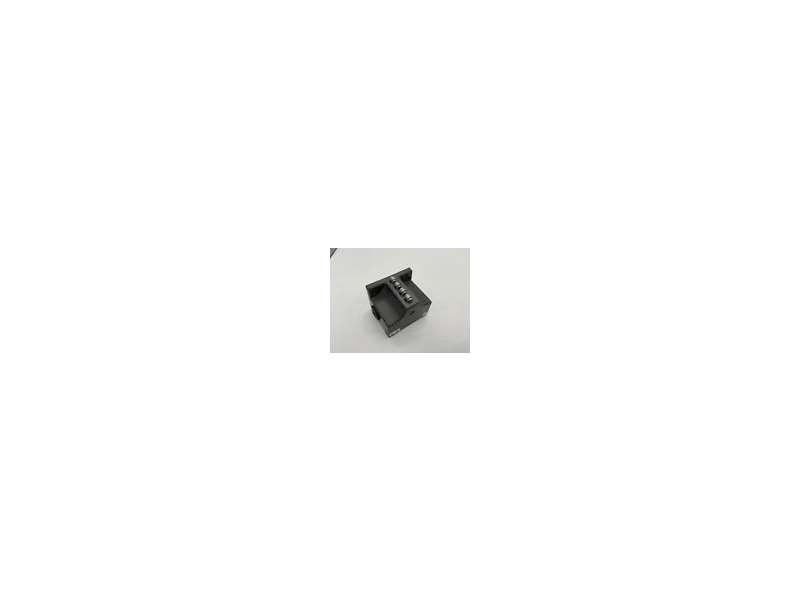

EUCHNER SN04R12-502-M, 12 mm, mechanical; 082161

SN04R12-502-M (Order no. 082161) Series SN... 12 mm, mechanical Plunger spacing 12 mm Upright housing, small flange Degree of protection IP67 according to IEC 6...

Brand: EUCHNER
Product Code: 082161
Availability: Check availability

Price on request

Description
Specification

SN04R12-502-M (Order no. 082161)

Series SN... 12 mm, mechanical

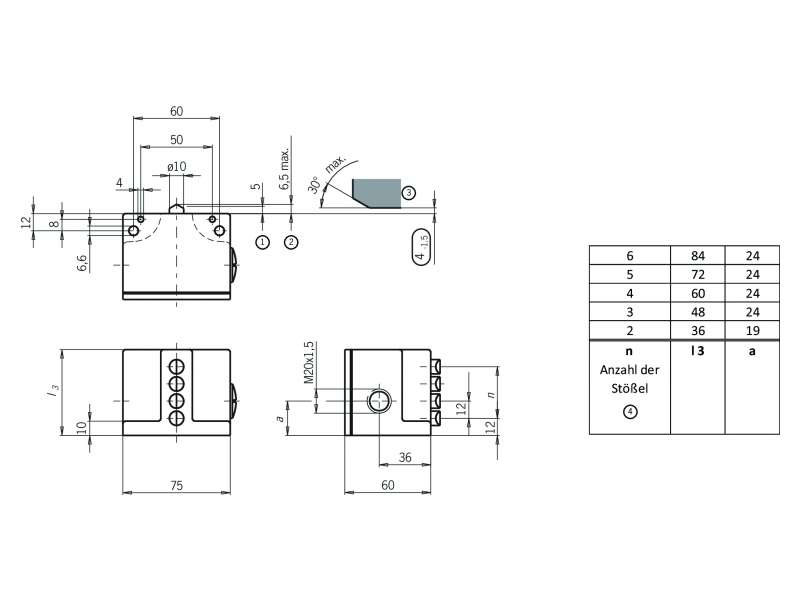

Plunger spacing 12 mm
Upright housing, small flange
Degree of protection IP67 according to IEC 60529

Switching element

ES 502 E

Snap-action switching contact 1 NC + 1 NO

Approvals

CCC_2020980305000540_CQC2008010305306206

Electrical connection values

Connection cross section	0.34 ... 1.5 mm²
Rated insulation voltage U_i	250 V
Rated impulse withstand voltage U_imp	2.5 kV
Utilization category
AC-12	8 A 250 V
DC-13	6 A 24 V
AC-15	6 A 230 V
Short circuit protection according to IEC 60269-1	8A gG
Switching current
min. at DC 12V	min. 10 mA
thermal rated current I_th	8 A

Mechanical values and environment

Approach speed	0.01 ... 80 m/min
Connection type
2 x	M20 x 1.5
Number NC contacts	4
Number of switching elements	4
Number of NO contacts	4
Design	upright
Actuating element
Slide bearing	Roller plunger
Actuating force	min. 20 N
Installation orientation	any
Mechanical life	30 x 10⁶
Switching principle	Snap-action switching contact
Degree of protection	IP67
Plunger spacing	12 mm
Ambient temperature	-5 ... +80 °C
Material
Contact	Silver alloy, gold flashed
Housing	Die-cast aluminum, anodized
