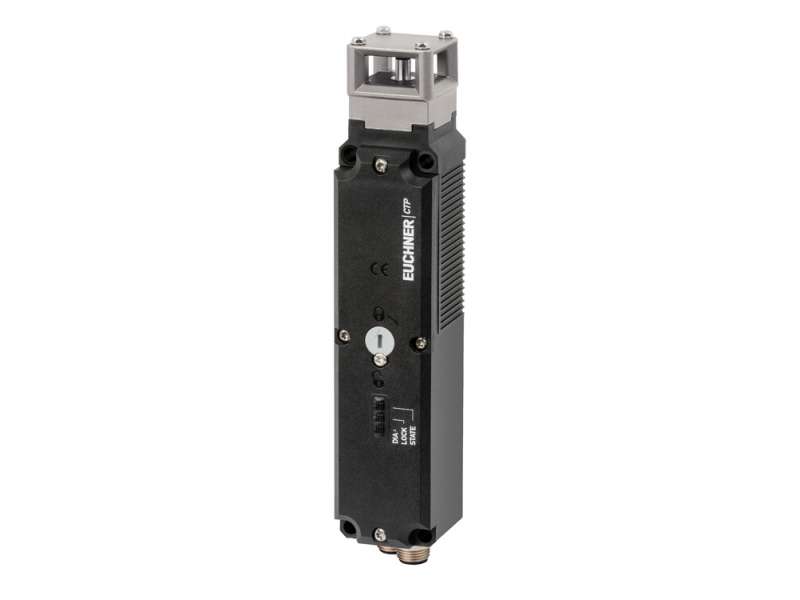

Transponder-coded safety switch CTP-AR, 2 x M12, stainless steel
- Safety switch with guard locking and integrated evaluation electronics
- Version with stainless-steel components
- ECOLAB certificate
- Up to 20 switches in series
- Short circuit monitoring
- Two safety outputs (semiconductor outputs)
- Up to category 4/PL e according to EN ISO 13849-1
- With two plug connectors M12
- Multicode
- Door monitoring output
- Approach directions A, B and C (delivery state)
Approvals
Mechanical values and environment
| Housing material | |
| Metal material | Stainless steel |
| Safety switch housing | Fiber glass reinforced thermoplastic |
| Weight | |
| Net | 0,48 kg |
| Ambient temperature | |
| At UB = 24V DC | -20 ... +55 °C |
| Degree of protection | IP67 / IP69 / IP69K |
| Resilience to vibration | In acc. with EN IEC 60947-5-3 |
| Mechanical life | 1 x 106 |
| Installation orientation | Any |
| Ready delay | 8 s |
| Switching frequency | max.0,5 Hz |
| Connection | 2 plug connectors M12, 5 and 8-pin |
| Approach speed | max.20 m/min |
| Guard locking principle | Closed-circuit current principle |
| Locking force Fmax | 3900 N |
| Locking force FZh | 3000 N |
| Retention force | 20 N |
| Extraction force | 20 N |
| Actuating force | 10 N |
| Overtravel | 5 mm |
Electrical connection ratings
| Test-pulse interval | min.140 ms |
| Test pulses | max.1,0 ms |
| Operating voltage DC | |
| UUB | 24 V DC -15% ... 15% Reverse polarity protected, regulated, residual ripple < 5%, PELV |
| Current consumption | |
| IUB | 40 mA |
| IIMP | 400 mA |
| Utilization category according to EN 60947-5-2 | |
| DC-13 | 24V 150mA |
| Solenoid operating voltage DC | |
| UIMP | 24 V DC -15% ... +10% Reverse polarity protected, regulated, residual ripple < 5%, PELV |
| Fusing | |
| External (operating voltage UB) | 0,25 ... 2 A |
| External (solenoid operating voltage IMP) | 0,5 ... 8 A |
| Rated insulation voltage Ui | max.50 V |
| Rated impulse withstand voltage Uimp | max.0,5 kV |
| Power consumption | 6 W |
| EMC protection requirements | In acc. with EN IEC 60947-5-3 |
| Solenoid duty cycle | 100 % |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Safety class | |
| EN IEC 61140 | III |
| Risk time according to EN 60947-5-3 | |
| Single device | max.260 ms |
| Delay per device | 5 ms |
| Switching load | |
| According to UL | 24V DC, class 2 |
| Safety outputs FO1A / FO1B | |
| Type of output | 2 semiconductor outputs, p-switching, short circuit-proof |
| Switching current | |
| Per safety output FO1A / FO1B | 1 ... 150 mA |
| Output voltage | |
| High U(FO1A) / U(FO1B) | UB-1,5 ... UB V DC |
| Low U(FO1A) / U(FO1B) | 0 ... 1 V DC |
| Off-state current Ir | max.0,25 mA |
| Switch-on time | max.400 ms |
| Discrepancy time | |
| Both safety outputs | max.10 ms In acc. with EN IEC 60947-5-3 |
| Monitoring output OL | |
| Type of output | p-switching, short circuit-proof |
| Switching current | 1 ... 50 mA |
| Output voltage | 0,8xUB ... UB V DC |
| Monitoring output OD | |
| Type of output | p-switching, short circuit-proof |
| Switching current | 1 ... 50 mA |
| Output voltage | 0,8xUB ... UB V DC |
| Monitoring output OI | |
| Type of output | p-switching, short circuit-proof |
| Switching current | 1 ... 50 mA |
| Output voltage | 0,8xUB ... UB V DC |
Work area
| Repeat accuracy R | |
| According to EN 60947-5-2 | 10 % |
Other
| For the approval according to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures see operating instructions |
Reliability values according to EN ISO 13849-1
| Performance Level | PL e |
| Category | 4 |
| PFHD | 4.1 x 10 -9 |
| Mission time | 20 y |
-
