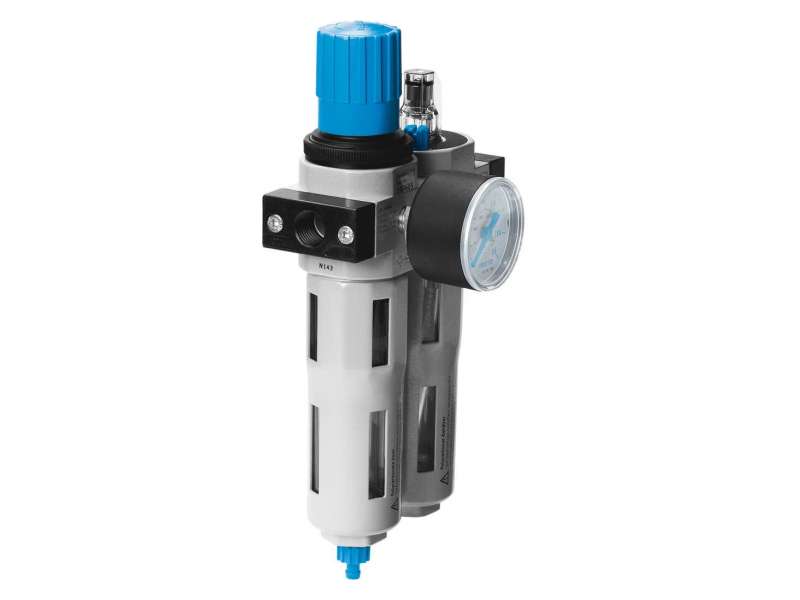

Festo Air preparation unit FRC-3/4-D-MIDI ; 162735
Air preparation unit FRC-3/4-D-MIDI...
Price on request
Air preparation unit FRC-3/4-D-MIDI
- Size
- Midi
- Type code
- FRC
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical +/- 5°
- Condensate drain
- Manually rotating
- Design
-
Filter regulator with pressure gauge
Proportional standard oil mist lubricator - Max. condensate volume
- 43 ml
- Grade of filtration
- 40 µm
- Bowl guard
- Metal bowl guard
- Symbol
- 00991549
- Pressure gauge
- with pressure gauge
- Operating pressure
- 1 bar ... 16 bar
- Pressure regulation range
- 0.5 bar ... 12 bar
- Max. pressure hysteresis
- 0.2 bar
- Standard nominal flow rate
- 2600 l/min
- Maritime classification
- See certificate
- Operating medium
-
Compressed air as per ISO 8573-1:2010 [-:9:-]
Inert gas - Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Air quality class at the output
-
Compressed air as per ISO 8573-1:2010 [7:8:-]
Inert gas - Temperature of medium
- -10 °C ... 60 °C
- Ambient temperature
- -10 °C ... 60 °C
- Product weight
- 1440 g
- Type of mounting
-
Line installation
With accessories - Pneumatic connection 1
- G3/4
- Pneumatic connection 2
- G3/4
- Note on materials
- RoHS-compliant
- Housing material
- Die-cast zinc
- Material of bowl
- PC
