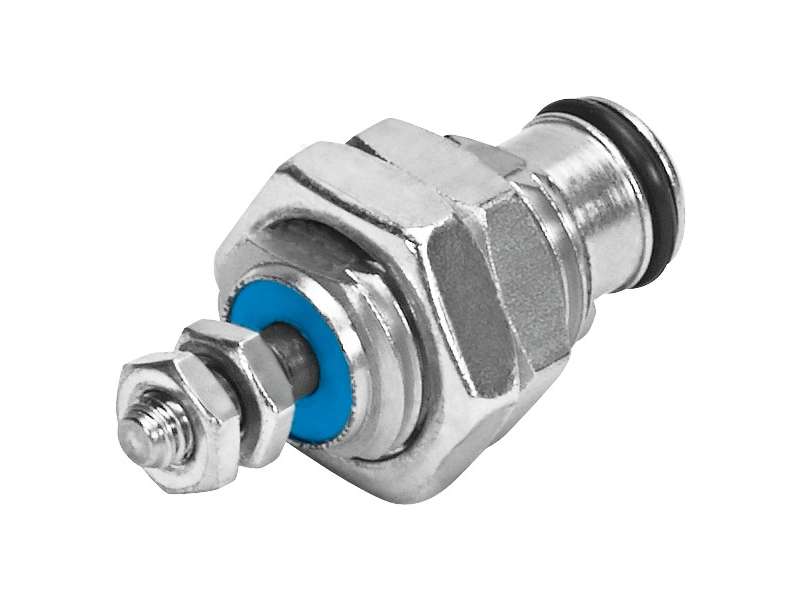

Festo Cartridge cylinder EGZ-10-5 ; 15036
Through-hole screw-in short single-acting cylinder. Minimal fitting space Installation with or without mounting components External piston rod thread...
Price on request
Through-hole screw-in short single-acting cylinder.
- Minimal fitting space
- Installation with or without mounting components
- External piston rod thread
- Stroke
- 5 mm
- Piston diameter
- 10 mm
- Type code
- EGZ
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
-
Pushing
Single-acting - Design
-
Piston rod
Piston
Cylinder barrel - Position sensing
- None

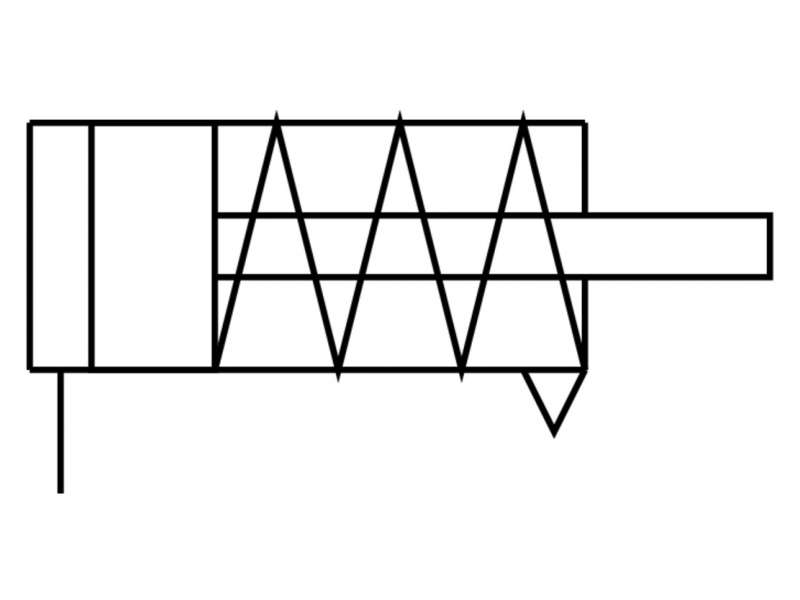

- Symbol
- 00991200
- Variants
- Piston rod at one end
- Operating pressure
- 1.5 bar ... 8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Ambient temperature
- -20 °C ... 80 °C
- Theoretical force at 6 bar
- 42 N
- Theoretical force at 6 bar, advancing
- 42 N
- Type of mounting
-
With external thread
With lock nut
Optionally: - Pneumatic connection
- M5
- Cover material
- POM
- Seals material
- TPE-U(PU)
- Housing material
-
Brass
Nickel-plated - Piston rod material
- High-alloy steel
