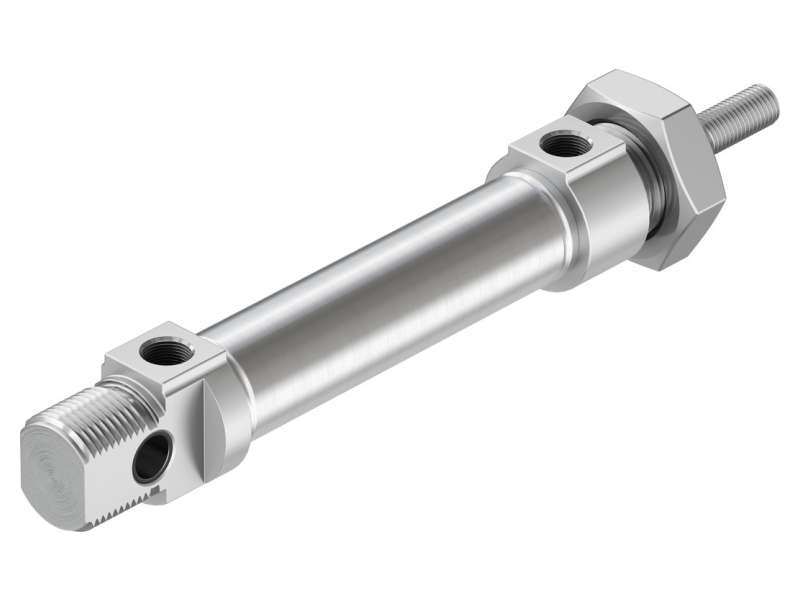

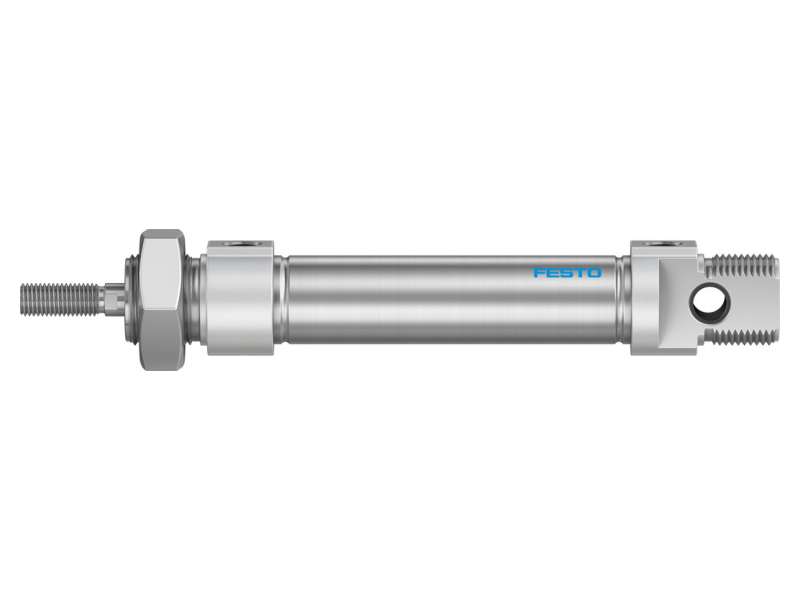

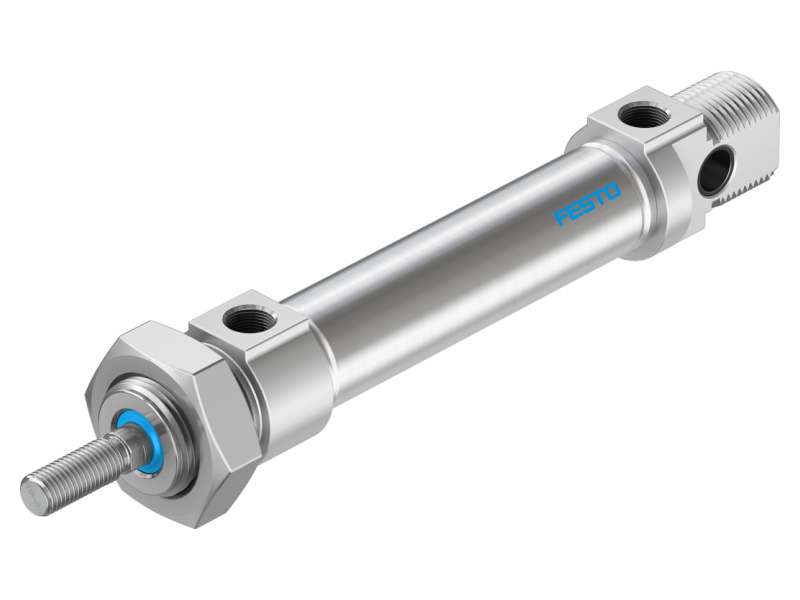

Festo ISO cylinder DSNU-20-50-P-A ; 19210
Long-lasting cylinder based on ISO 6432 with self-adjusting end-position cushioning and extensive accessories. DSNU-20-50-P-A Part no. 19210 Wide range of variants...
Price on request
Long-lasting cylinder based on ISO 6432 with self-adjusting end-position cushioning and extensive accessories.
DSNU-20-50-P-A Part no. 19210
- Wide range of variants for customized applications
- Good running performance and long service life
- Self-adjusting pneumatic end-position cushioning which adapts optimally to changes in load and speed
- Piston rod with internal or external thread
- Magnetic piston for position sensing
- Maritime classification
- See certificate
- Stroke
- 50 mm
- Piston diameter
- 20 mm
- Piston rod thread
- M8
- Type code
- DSNU
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
-
CETOP RP 52 P
ISO 6432 - Piston rod end
- External thread
- Design
-
Piston
Cylinder barrel
Piston rod - Position sensing
- For proximity sensor

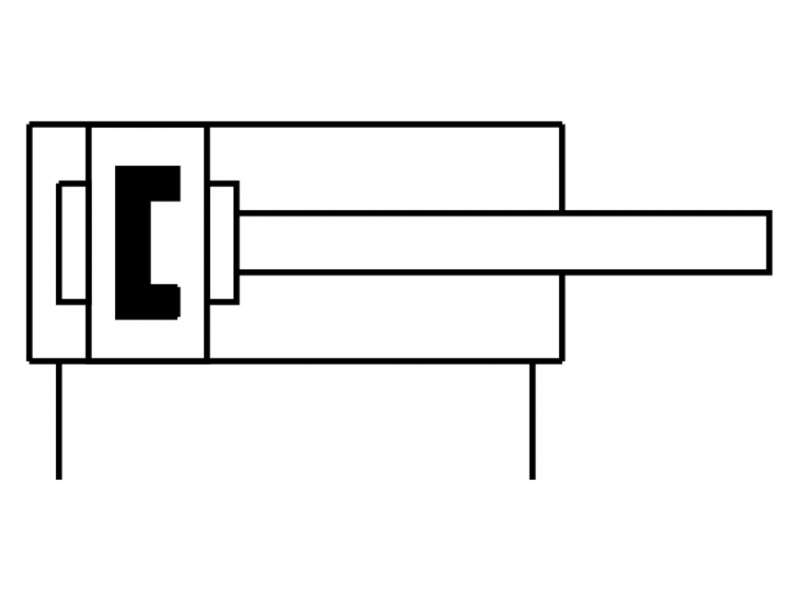

- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 1 bar ... 10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Ambient temperature
- -20 °C ... 80 °C
- Impact energy in the end positions
- 0.2 J
- Theoretical force at 6 bar, retracting
- 158.3 N
- Theoretical force at 6 bar, advancing
- 188.5 N
- Moving mass at 0 mm stroke
- 44 g
- Additional weight per 10 mm stroke
- 7.2 g
- Basic weight with 0 mm stroke
- 186.8 g
- Additional moving mass per 10 mm stroke
- 4 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS-compliant
- Cover material
-
Plain anodized
Wrought aluminum alloy - Seals material
-
NBR
TPE-U(PU) - Piston rod material
- High-alloy stainless steel
- Material of cylinder barrel
- High-alloy stainless steel
-
DSNU ENUS
