Festo Proportional directional control valve MPYE-5-1/8-LF-420-B ; 161978
Fast, durable, and cost-effective: the highly dynamic, hard-sealing piston spool valve MPYE. With an external position controller and linear potentiometer, you can...
Price on request
Fast, durable, and cost-effective: the highly dynamic, hard-sealing piston spool valve MPYE. With an external position controller and linear potentiometer, you can construct a precise pneumatic positioning system.
MPYE-5-1/8-LF-420-B Part no. 161978
- Controlled piston spool valve
- Analog actuation
- Setpoint input as analog voltage signal (0 ... 10 V)
- Suitable for servo-pneumatic applications with SPC11 end-position controller
- KC characters
- KC EMC
- Nominal width
- 4 mm
- Type code
- MPYE
- Actuation type
- Electrical
- Sealing principle
- Hard
- Mounting position
- Any
- Design
- Piston gate valve
- Reset method
- Magnetic spring
- Safety instructions
- MPYE safety position: if the power supply cable breaks, the blocked mid-position is approached.
- Type of control
- Direct
- Flow direction
- Non-reversible

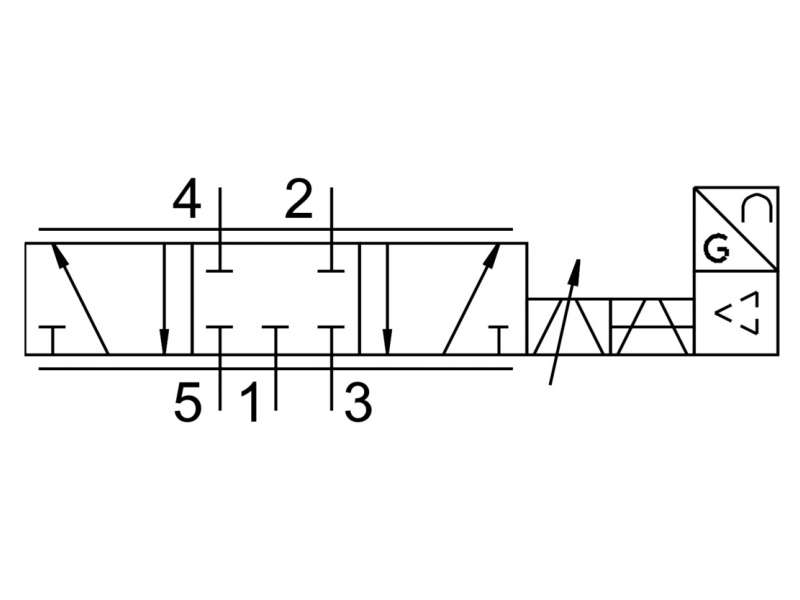

- Symbol
- 00995308
- Valve function
- 5/3, closed
- Reverse polarity protection
- for setpoint value
- Operating pressure
- 0 bar ... 10 bar
- b-value
- 0.12
- C value
- 1.65 l/sbar
- Standard nominal flow rate
- 350 l/min
- Cut-off frequency
- 95 Hz
- Max. hysteresis
- 0.4 %
- DC operating voltage range
- 17 V ... 30 V
- Residual ripple
- 5 %
- Setpoint/actual values
- Current type 4–20 mA
- Operating medium
- Compressed air as per ISO 8573-1:2010 [6:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Temperature of medium
- 5 °C ... 40 °C
- Degree of protection
- IP65
- Ambient temperature
- 0 °C ... 50 °C
- Certification
- RCM compliance mark
- Product weight
- 285 g
- Electrical connection
-
M12x1
4-pin
Round design
Plug - Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Pneumatic connection 3
- G1/8
- Pneumatic connection 4
- G1/8
- Pneumatic connection 5
- G1/8
- Note on materials
- RoHS-compliant
- Cover material
-
Coated
ABS - Seals material
- NBR
- Housing material
-
Aluminum
Anodized
-
161978datasheet
-
