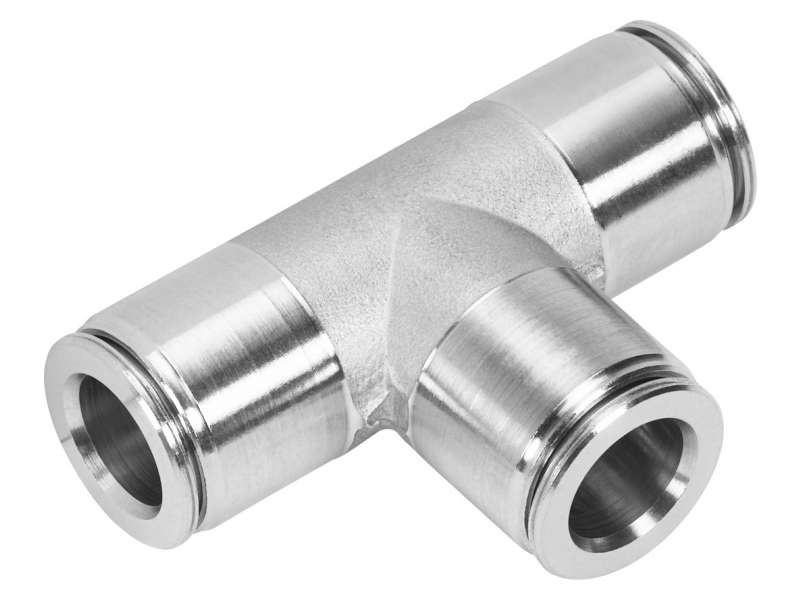

Festo Push-in T-connector CRQST-5/32T-U ; 565350
Maximum resistance to corrosion (CRC 4) and to aggressive acids and alkalis. CRQST-5/32T-U Part no. 565350 Maximum corrosion resistance (corrosion resistance class...
Price on request
Maximum resistance to corrosion (CRC 4) and to aggressive acids and alkalis.
CRQST-5/32T-U Part no. 565350
CRQST-5/32T-U Part no. 565350
- Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance
- Operating medium compressed air, vacuum
- Stainless steel
- Size
- Standard
- Design
- T-shape
- Nominal width
- 3.505 mm
- Type code
- CRQST
- Mounting position
- Any
- Pack size
- 1
- Design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.951 bar ... 14.003 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C ... 150 °C
- Product weight
- 15.989 g
- Usable connector cables
- PFAN
- Pneumatic connection 1
- For pneumatic tubing outside diameter 5/32"
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Note on materials
-
Contains paint-wetting impairment substances
RoHS-compliant - Housing material
- High-alloy stainless steel
- Releasing ring material
- High-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- High-alloy stainless steel
-
565350datasheet
-
CRQS-NPT ENUS
