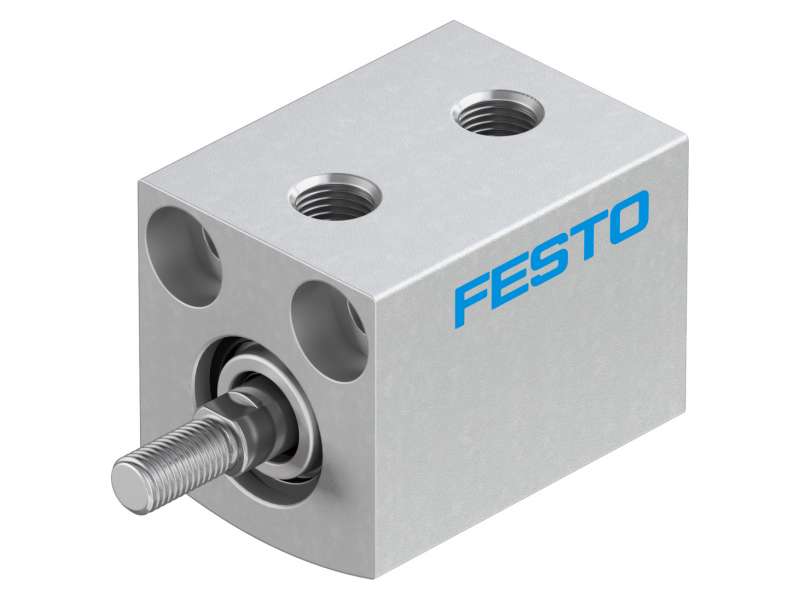

Festo Short-stroke cylinder ADVC-10-10-A-P ; 188079
Fast acting cylinder with outstanding tensile force ratio and hole pattern for fastening to VDMA 24562. ADVC-10-10-A-P Part no. 188079 Very short overall length...
Price on request
Fast acting cylinder with outstanding tensile force ratio and hole pattern for fastening to VDMA 24562.
ADVC-10-10-A-P Part no. 188079
- Very short overall length
- High forces in a compact size
- Piston rod with internal or external thread
- Optimized fitting space and height
- Mounting hole pattern to VDMA 24562 as of Ø 32 mm
- For position sensing with proximity sensor for T-slot and for C-slot
- Stroke
- 10 mm
- Piston diameter
- 10 mm
- Type code
- ADVC
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
-
Piston
Piston rod - Position sensing
- None
- Symbol
- 00991227
- Operating pressure
- 1 bar ... 8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Ambient temperature
- -20 °C ... 80 °C
- Theoretical force at 6 bar, retracting
- 40 N
- Theoretical force at 6 bar, advancing
- 47 N
- Moving mass
- 3.3 g
- Product weight
- 26 g
- Type of mounting
-
Optionally:
With through-hole
With accessories - Pneumatic connection
- M5
- Note on materials
- Free of copper and PTFE
- Cover material
-
Wrought aluminum alloy
Anodized - Seals material
-
TPE-U(PU)
NBR - Housing material
-
Wrought aluminum alloy
Anodized - Piston rod material
- High-alloy steel
-
188079datasheet
-
ADVC ENUS
