INVERTEK DRIVES Brake Resistor, Size 2, 100R, 200W, for E3, P2; OD-BR100-IN
Braking resistor for VFDs up to 11kW. Mount directly to the drive heatsink for space saving. Useful to reduce stopping time with high inertia loads....
VAT-exclusive price: 12.579,46 |
VAT-inclusive price: 15.095,35 |

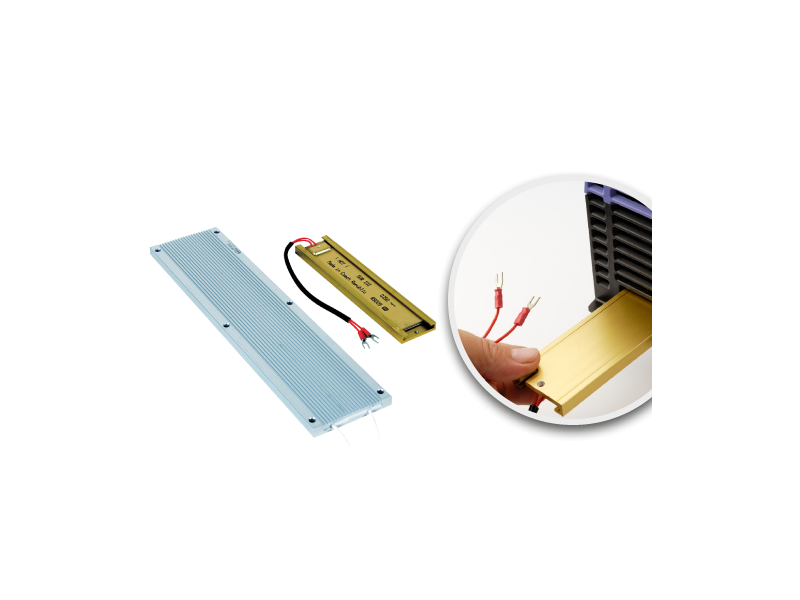

Braking resistor for VFDs up to 11kW. Mount directly to the drive heatsink for space saving. Useful to reduce stopping time with high inertia loads.
Resistance: 100 Ohms
Rated voltage: 900 VDC
Rated continuous power: 200W
Peak power : 12000W
Height : 9 mm
Width : 40mm
Lenght : 188mm
Rated voltage: 900 VDC
Rated continuous power: 200W
Peak power : 12000W
Height : 9 mm
Width : 40mm
Lenght : 188mm
-
82-BRAKE-IN Brake Resistors Issue 3.00
