INVERTEK DRIVES EMC filter trofazni, struje do 25 A, IP20 ; OPT-2-E3025-20
Improve Electromagnetic Compatibility Compliant with the latest European and international standards EMC filters reduce the transfer of electromagnetic noise between...
VAT-exclusive price: 31.971,80 |
VAT-inclusive price: 38.366,16 |
- Improve Electromagnetic Compatibility
- Compliant with the latest European and international standards
EMC filters reduce the transfer of electromagnetic noise between the drive and mains power supply. All Optidrives are fitted as standard with an internal EMC filter, except where specified by the customer, and for most industrial applications, this will be sufficient. In the event that a higher level of filtering is desired or required, the external EMC filter can be added to either a drive which already has the internal EMC filter, or a drive without EMC filter. Best performance is achieved by using a filtered drive and the appropriate external EMC filter.

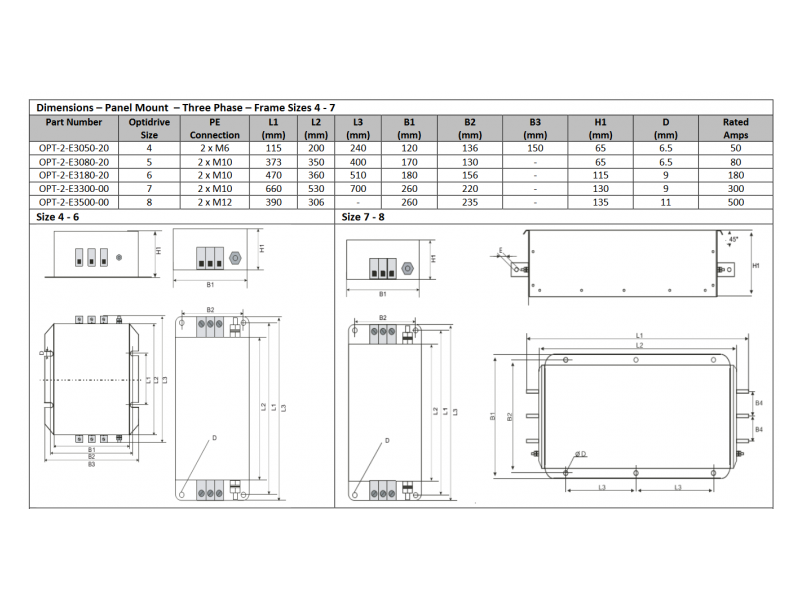

Dimensions, schematic diagram and technical data in documentation.
|
Electrical Specification – Single Phase |
Electrical Specification – Three Phase |
|||||||||
|
Voltage Range |
200 – 250 VAC |
Voltage Range |
380 – 480 VAC |
|||||||
|
Frequency Range |
48 – 62Hz |
Frequency Range |
48 – 62Hz |
|||||||
|
Leakage Current |
OPT-2-E1010-00 |
< 5mA |
Leakage Current |
OPT-2-E3006-00 |
< 10mA |
|||||
|
|
OPT-2-E1025-00 |
< 5mA |
|
OPT-2-E3016-00 |
< 35mA |
|||||
|
|
|
|
|
OPT-2-E3025-00 |
< 35mA |
|||||
|
|
|
|
|
OPT-2-E3050-20 |
< 180mA |
|||||
|
|
|
|
|
OPT-2-E3080-20 |
< 200mA |
|||||
|
|
|
|
|
OPT-2-E3180-20 |
< 220mA |
|||||
|
|
|
|
|
OPT-2-E3300-00 |
< 260mA |
|||||
|
|
|
|
|
OPT-2-E3500-00 |
< 100mA |
|||||
|
|
||||||||||
|
Drive & Filter Compatibility |
||||||||||
|
The following table shows the EMC filter to be used with each respective drive rating. |
||||||||||
|
1 Phase Input, 230 Volt AC Supply, Drive fitted with internal EMC Filter |
||||||||||
|
Frame Size |
kW |
HP |
EMC Filter Model Code |
Optidrive E2 |
Optidrive P2 |
Optidrive Eco |
Optidrive Elevator |
|||
|
1 |
0.37 |
0.5 |
OPT-2-E1010-xx |
ü |
ü |
ü |
|
|||
|
0.75 |
1 |
OPT-2-E1025-xx |
ü |
ü |
ü |
|
||||
|
1.5 |
2 |
OPT-2-E1025-xx |
ü |
ü |
ü |
|
||||
|
2 |
1.5 |
2 |
OPT-2-E1025-xx |
ü |
ü |
ü |
|
|||
|
2.2 |
3 |
OPT-2-E1025-xx |
ü |
ü |
ü |
|
||||
|
3 Phase Input, 400 Volt AC Supply, Drive fitted with internal EMC Filter |
||||||||||
|
Frame Size |
kW |
HP |
EMC Filter Model Code |
