INVERTEK DRIVES EMC filter trofazni, struje do 25 A , IP66 ; OPT-2-E3025-66

Improve Electromagnetic Compatibility Compliant with the latest European and international standards EMC filters reduce the transfer of electromagnetic noise between...

Brand: INVERTEK DRIVES
Product Code: OPT-2-E3025-66
Availability: Check availability
VAT-exclusive price: 39.254,95
VAT-inclusive price: 47.105,94
  • Improve Electromagnetic Compatibility
  • Compliant with the latest European and international standards


EMC filters reduce the transfer of electromagnetic noise between the drive and mains power supply. All Optidrives are fitted as standard with an internal EMC filter, except where specified by the customer, and for most industrial applications, this will be sufficient. In the event that a higher level of filtering is desired or required, the external EMC filter can be added to either a drive which already has the internal EMC filter, or a drive without EMC filter. Best performance is achieved by using a filtered drive and the appropriate external EMC filter.

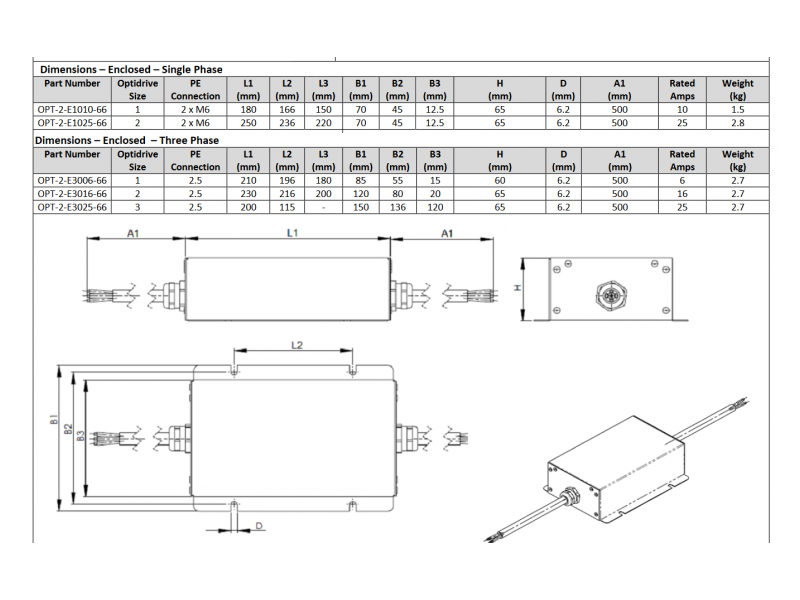

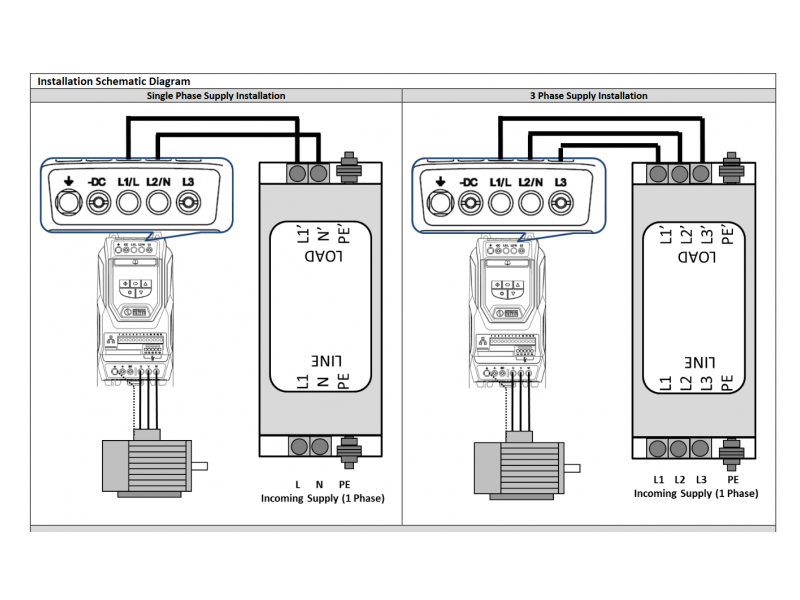

Dimensions, schematic diagram and technical data in documentation.
Electrical Specification – Single Phase Electrical Specification – Three Phase
Voltage Range 200 – 250 VAC Voltage Range 380 – 480 VAC
Frequency Range 48 – 62Hz Frequency Range 48 – 62Hz
Leakage Current OPT-2-E1010-00 < 5mA Leakage Current OPT-2-E3006-00 < 10mA
  OPT-2-E1025-00 < 5mA   OPT-2-E3016-00 < 35mA
        OPT-2-E3025-00 < 35mA
        OPT-2-E3050-20 < 180mA
        OPT-2-E3080-20 < 200mA
        OPT-2-E3180-20 < 220mA
        OPT-2-E3300-00 < 260mA
        OPT-2-E3500-00 < 100mA

Drive & Filter Compatibility
The following table shows the EMC filter to be used with each respective drive rating.
1 Phase Input, 230 Volt AC Supply, Drive fitted with internal EMC Filter
Frame Size kW HP EMC Filter Model Code Optidrive
E2
Optidrive
P2
Optidrive
Eco
Optidrive
Elevator

1
0.37 0.5 OPT-2-E1010-xx ü ü ü
0.75 1 OPT-2-E1025-xx ü ü ü
1.5 2 OPT-2-E1025-xx ü ü ü
2 1.5 2 OPT-2-E1025-xx ü ü ü
2.2 3 OPT-2-E1025-xx ü ü ü
3 Phase Input, 400 Volt AC Supply, Drive fitted with internal EMC Filter
Frame Size kW HP EMC Filter Model Code Optidrive
E2
Optidrive
P2
Optidrive
Eco
Optidrive
Elevator
1 0.75 1 OPT-2-E3006-xx ü
1.5 2 OPT-2-E3006-xx ü

2
1.5 2 OPT-2-E3006-xx ü ü ü ü
2.2 3 OPT-2-E3016-xx ü ü ü ü
4 5 OPT-2-E3016-xx ü ü ü ü

3
5.5 7.5 OPT-2-E3016-xx ü ü ü ü
7.5 10 OPT-2-E3025-xx ü ü ü ü
11 15 OPT-2-E3025-xx ü ü ü ü

4
11 15 OPT-2-E3025-xx   ü ü ü
15 20 OPT-2-E3050-20   ü ü ü
18.5 25 OPT-2-E3050-20   ü ü ü
22 30 OPT-2-E3050-20   ü ü ü

5
30 40 OPT-2-E3080-20   ü ü ü
37 50 OPT-2-E3080-20   ü ü ü
45 60 OPT-2-E3180-20     ü

6
45 60 OPT-2-E3180-20   ü
55 75 OPT-2-E3180-20   ü ü
75 100 OPT-2-E3180-20   ü ü
90 120 OPT-2-E3180-20   ü ü

7
110 150 OPT-2-E3300-00   ü ü
132 175 OPT-2-E3300-00   ü ü
160 250 OPT-2-E3300-00   ü ü
8 200 300 OPT-2-E3500-00   ü ü
250 350 OPT-2-E3500-00   ü ü
  • 82-OPT-2-FILTER-IN EMC Filters User Guide Iss 1.10
