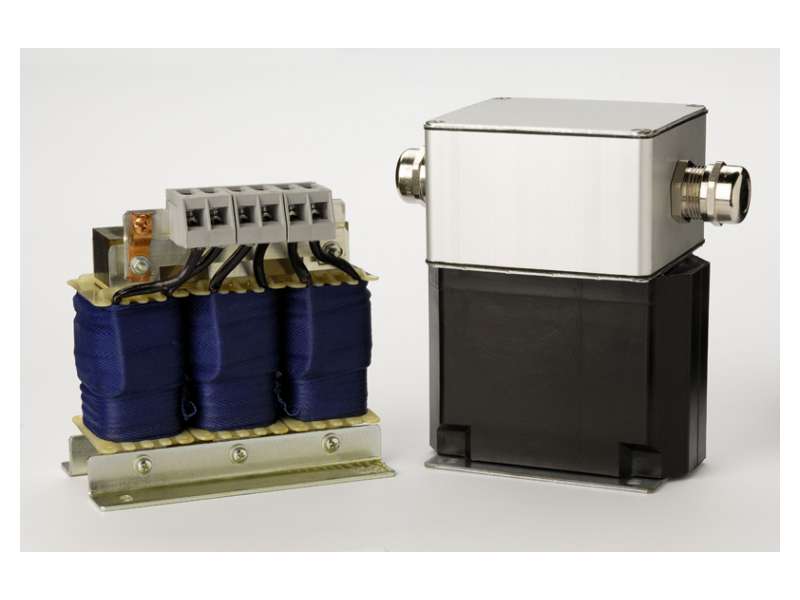

INVERTEK DRIVES Input Choke, 3 phase, 90 Amp, IP20

Input Choke, three phase, rated current 90A ; IP20 Reduce power supply harmonic currents Reduce the overall input current to the drive Provide additional protection...

Brand: INVERTEK DRIVES
Product Code: OPT-2-L3090-20
Availability: Check availability
VAT-exclusive price: 146.774,02
VAT-inclusive price: 176.128,83

Input Choke, three phase, rated current 90A ; IP20

  • Reduce power supply harmonic currents
  • Reduce the overall input current to the drive
  • Provide additional protection against mains borne voltage spikes

Input chokes can be used to reduce the supply line harmonic currents and voltage distortion generated by almost all inverter drives on the market today. Invertek Drives have selected a range of chokes matched to the Optidrive range to provide the best reduction in supply current harmonics whilst also providing enhanced protection for the Optidrive against transient voltages ('spikes') or other mains borne interference.

Input chokes are available for the complete range of Optidrive products, and are recommended for use in all installations and in particular:

  • where the local mains supply quality may be poor or unknown
  • where high current switching loads such as large DC drives or soft starts are operating
  • where the mains supply impedance is low
  • in remote areas prone to lightening strikes

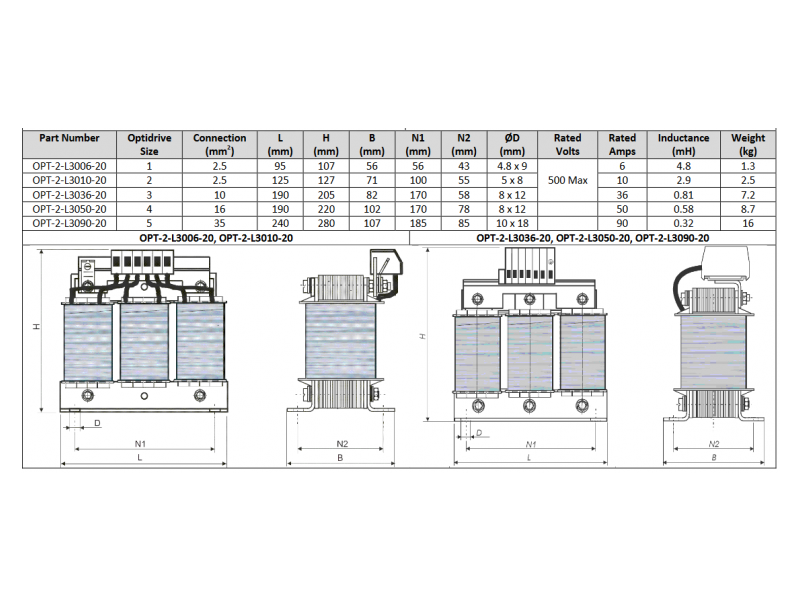

Part Number Optidrive
Size
Connection
(mm2)
L
(mm)
H
(mm)
B
(mm)
N1
(mm)
N2
(mm)
ØD
(mm)
Rated
Volts
Rated
Amps
Inductance
(mH)
Weight
(kg)
OPT-2-L3006-20 1 2.5 95 107 56 56 43 4.8 x 9
500 Max
6 4.8 1.3
OPT-2-L3010-20 2 2.5 125 127 71 100 55 5 x 8 10 2.9 2.5
OPT-2-L3036-20 3 10 190 205 82 170 58 8 x 12 36 0.81 7.2
OPT-2-L3050-20 4 16 190 220 102 170 78 8 x 12   50 0.58 8.7
OPT-2-L3090-20 5 35 240 280 107 185 85 10 x 18   90 0.32 16
  • 82-IPIND-IN Input Chokes Iss 2.10(1)

    82-IPIND-IN Input Chokes Iss 2.10(1)
