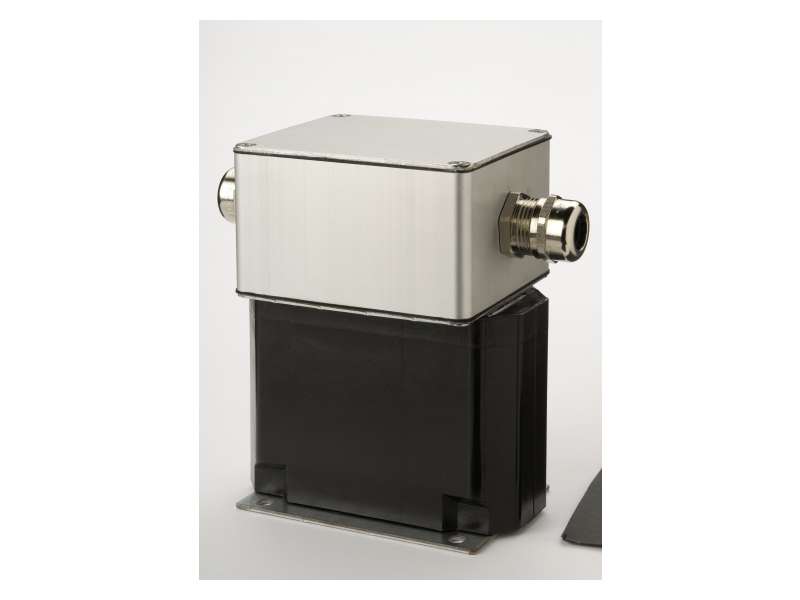

INVERTEK DRIVES Input Choke. 3 Phase, 10Amp , IP66

Input Choke, three phase, rated current 10A ; IP66 Reduce power supply harmonic currents Reduce the overall input current to the drive Provide additional protection...

Brand: INVERTEK DRIVES
Product Code: OPT-2-L3010-66
Availability: Check availability
VAT-exclusive price: 35.181,33
VAT-inclusive price: 42.217,59

Input Choke, three phase, rated current 10A ; IP66

  • Reduce power supply harmonic currents
  • Reduce the overall input current to the drive
  • Provide additional protection against mains borne voltage spikes

Input chokes can be used to reduce the supply line harmonic currents and voltage distortion generated by almost all inverter drives on the market today. Invertek Drives have selected a range of chokes matched to the Optidrive range to provide the best reduction in supply current harmonics whilst also providing enhanced protection for the Optidrive against transient voltages ('spikes') or other mains borne interference.

Input chokes are available for the complete range of Optidrive products, and are recommended for use in all installations and in particular:

  • where the local mains supply quality may be poor or unknown
  • where high current switching loads such as large DC drives or soft starts are operating
  • where the mains supply impedance is low
  • in remote areas prone to lightening strikes

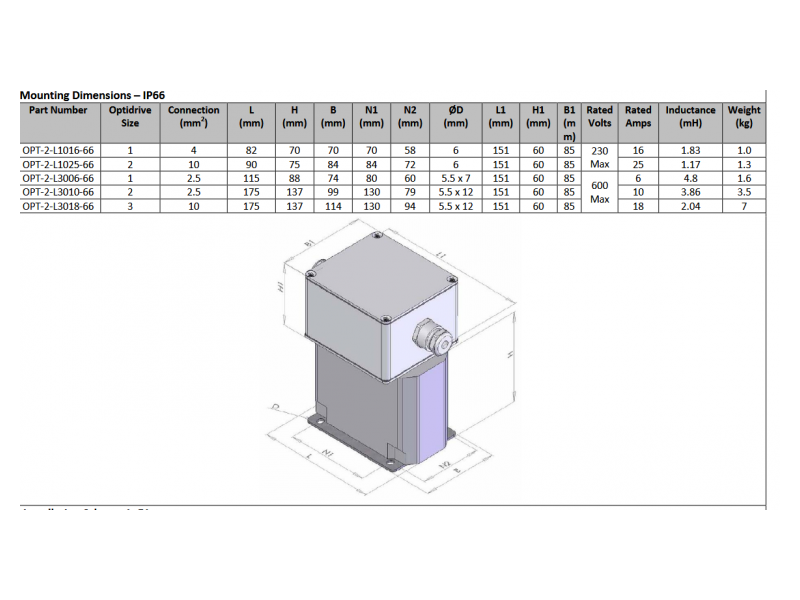

Part Number Optidrive Size Connection (mm2) L
(mm)
H
(mm)
B
(mm)
N1
(mm)
N2
(mm)
ØD
(mm)
L1
(mm)
H1
(mm)
B1
(m
m)
Rated Volts Rated Amps Inductance (mH) Weight (kg)
OPT-2-L1016-66 1 4 82 70 70 70 58 6 151 60 85 230
Max
16 1.83 1.0
OPT-2-L1025-66 2 10 90 75 84 84 72 6 151 60 85 25 1.17 1.3
OPT-2-L3006-66 1 2.5 115 88 74 80 60 5.5 x 7 151 60 85 600
Max
6 4.8 1.6
OPT-2-L3010-66 2 2.5 175 137 99 130 79 5.5 x 12 151 60 85 10 3.86 3.5
OPT-2-L3018-66 3 10 175 137 114 130 94 5.5 x 12 151 60 85 18 2.04 7
  • 82-IPIND-IN Input Chokes Iss 2.10(1)

    82-IPIND-IN Input Chokes Iss 2.10(1)
