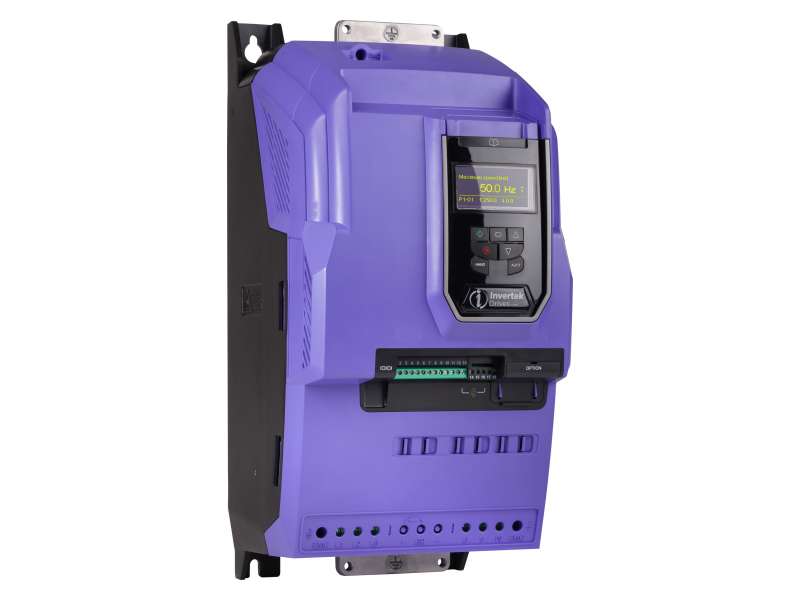

INVERTEK DRIVES Optidrive Eco, 45kW , IP20 ; ODV-3-540900-3F12-MN

Invertek Optidrive Eco, ODV-3-540900-3F12-MN , 400V 3 phase input, 400V 3 phase output, 45kW, 90A output current IP20 inverter. Dedicated centrifugal Fan & Pump...

Brand: INVERTEK DRIVES
Product Code: ODV-3-540900-3F12-MN
Availability: In stock
VAT-exclusive price: 322.902,85
VAT-inclusive price: 387.483,42

Invertek Optidrive Eco,ODV-3-540900-3F12-MN, 400V 3 phase input, 400V 3 phase output, 45kW,  90A output current
IP20 inverter.


Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet
Power (kW) 45
Power (HP) 60
Input Voltage 380-480V
Output Voltage 0-input Voltage
Input Phases 3
Output Current 90A
Input Current 75.9A
Enclosure rating IP20
Width 222mm
Height 486mm
Depth 260mm
Frame Size 5
Overload 110%
Duty Normal
Dynamic Braking            No
Weight 17kg
Control Type ECO Vector
Input Frequency 48-62Hz
Output Frequency 0-500Hz
Max Temperature 40 ͦC
Digital Inputs 5
Digital Outputs 2
Analogue Inputs/Ps 2
Analogue Outputs/Ps 2
Output relay(s) 2
Serial Comms Modbus, Bacnet
Approvals UL. cUL, C- Tick, Gost R, ROHS
  • GB Optidrive ECO User Guide

    GB Optidrive ECO User Guide
