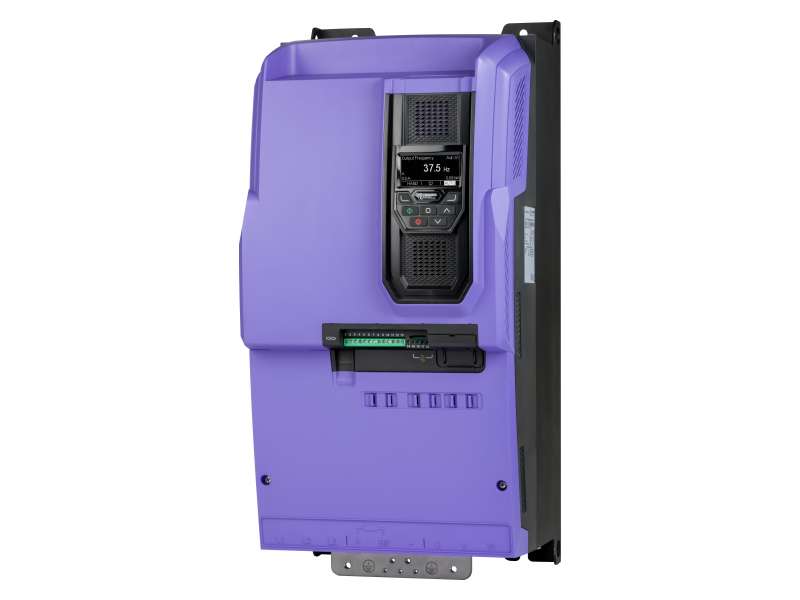

INVERTEK DRIVES Optidrive Eco, 55kW, IP20 ; ODV-3-641100-3F12-MN

Invertek Optidrive Eco, ODV-3-641100-3F12-MN , 400V 3 phase input, 400V 3 phase output, 55kW, 110A output current IP20 inverter. Dedicated centrifugal Fan &...

Brand: INVERTEK DRIVES
Product Code: ODV-3-641100-3F12-MN
Availability: Check availability
VAT-exclusive price: 344.935,71
VAT-inclusive price: 413.922,85
Invertek Optidrive Eco,ODV-3-641100-3F12-MN, 400V 3 phase input, 400V 3 phase output, 55kW,  110A output current
IP20 inverter.

Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet
Power (kW) 55
Power (HP) 75
Input Voltage 380-480V
Output Voltage 0-input Voltage
Input Phases 3
Output Current 110A
Input Current 112.5A
Enclosure rating IP20
Width 286mm
Height 613mm
Depth 320mm
Frame Size 6A
Overload 110%
Duty Normal
Dynamic Braking            No
Weight 32kg
Control Type ECO Vector
Input Frequency 48-62Hz
Output Frequency 0-500Hz
Max Temperature 40 ͦC
Digital Inputs 5
Digital Outputs 2
Analogue Inputs/Ps 2
Analogue Outputs/Ps 2
Output relay(s) 2
Serial Comms Modbus, Bacnet
Approvals UL. cUL, C- Tick, Gost R, ROHS
  • GB Optidrive ECO User Guide

    GB Optidrive ECO User Guide
