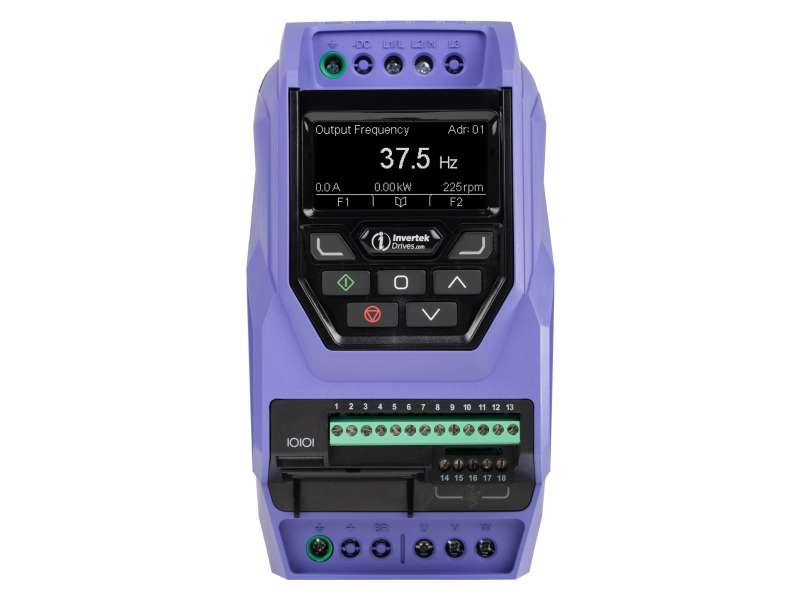

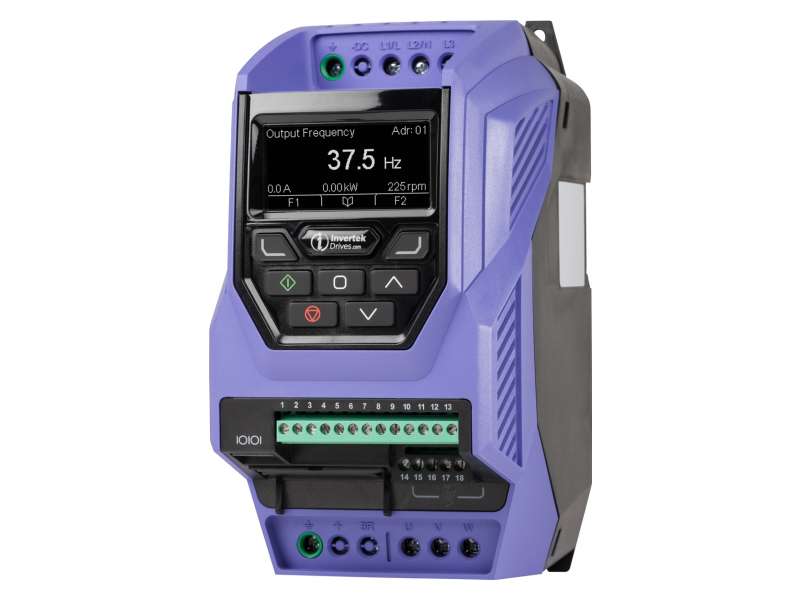

INVERTEK DRIVES Optidrive P2, Single Phase Input, 0.75kW, IP20 ; ODP-2-22075-1KF42-MN
Invertek Optidrive P2, , ODP-2-64055-3KF42-MN , 200-240V single phase input, 3 phase output, 0.75kW, 4.3A, IP20 LED display. DIN rail mountable High performance...
VAT-exclusive price: 43.698,91 |
VAT-inclusive price: 52.438,69 |
Invertek Optidrive P2, , ODP-2-64055-3KF42-MN , 200-240V single phase input, 3 phase output, 0.75kW, 4.3A, IP20
LED display.
DIN rail mountable
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Safe Torque Off
LED display.
DIN rail mountable
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Safe Torque Off
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Input Voltage | 200-240V |
| Output Voltage | 0-input Voltage |
| Input Phases | 1 |
| Output Current | 4.3A |
| Input Current | 8.5A |
| Enclosure rating | IP20 |
| Width | 110mm |
| Height | 285mm |
| Depth | 185mm |
| Frame Size | 2 |
| Overload | 200% |
| Duty | Heavy |
| Dynamic Braking | Yes |
| Weight | 1.8kg |
| Control Type | Open or closed loop vector or V/f |
| Input Frequency | 48-62Hz |
| Output Frequency | 0-500Hz |
| Max Temperature | 50 ͦC |
| Digital Inputs | 5 |
| Digital Outputs | 2 |
| Analogue Inputs/Ps | 2 |
| Analogue Outputs/Ps | 2 |
| Output relay(s) | 2 |
| Serial Comms | Modbus, CANopen |
| Approvals | UL. cUL, C- Tick, Gost R, ROHS |
-
GB Optidrive P2 User Guide NEW
