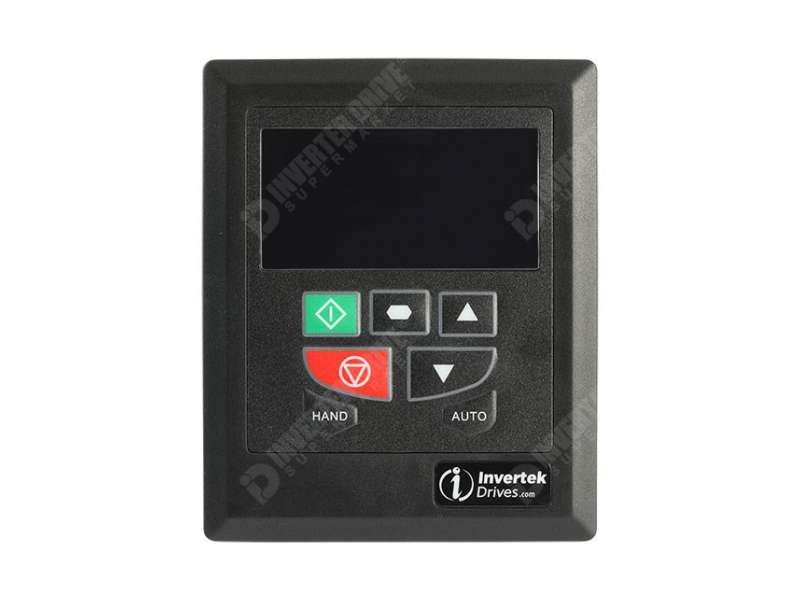

INVERTEK DRIVES Optipad Remote OLED Keypad with RJ45 Cable; OPT-2-OPPAD-IN

Optipad 2 is a remote keypad with an OLED multi language text display. Supplied with 3m of RJ45 data cable. Optipad 2 provides the same functions as Optiport , whilst...

Brand: INVERTEK DRIVES
Product Code: OPT-2-OPPAD-IN
Availability: In stock
VAT-exclusive price: 21.355,68
VAT-inclusive price: 25.626,82

Optipad 2 is a remote keypad with an OLED multi language text display.

Supplied with 3m of RJ45 data cable.


Optipad 2 provides the same functions as Optiport , whilst adding an OLED multi language text display. Up to three monitored values can be displayed simultaneously. All parameters are accessible, with the ability to lock access if required. Parameter names are displayed as plain text, with adjustments easily carried out. The following languages are supported:
Compat with E2, E3, P2, HVAC, ECO, Elevator
IP Rating IP54

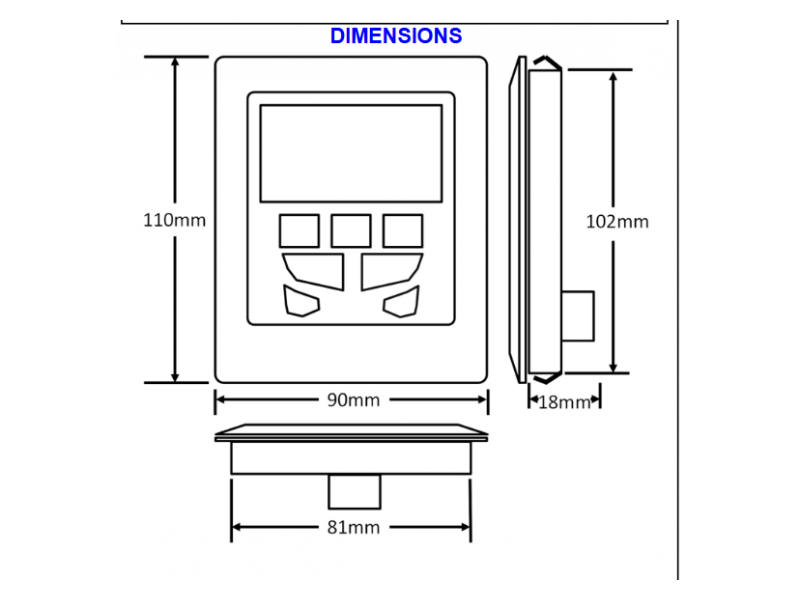

Depth 18mm
Height 110mm
Width 90mm
Weight 0.2000
Model Number OPT-2-OPPAD-IN
  • 82-OPT-2-OPPAD-IN Optipad User Guide Iss 1.00

    82-OPT-2-OPPAD-IN Optipad User Guide Iss 1.00
