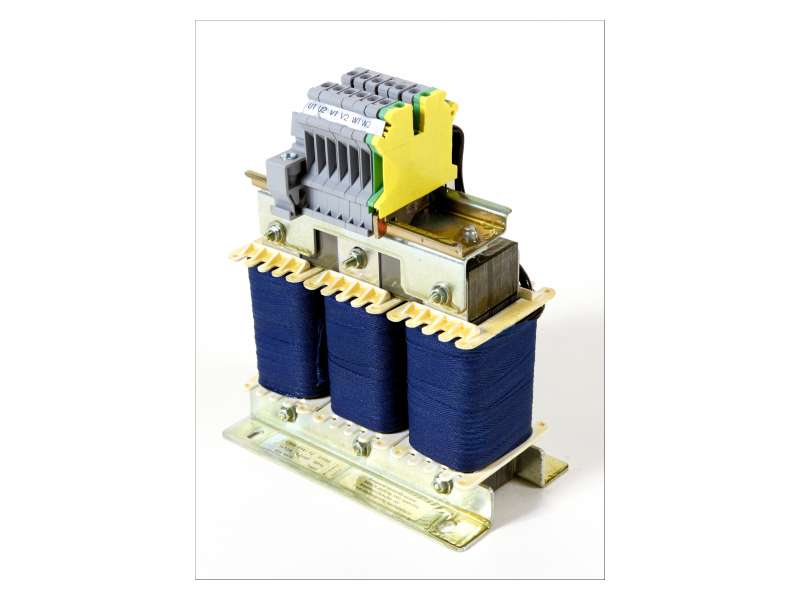

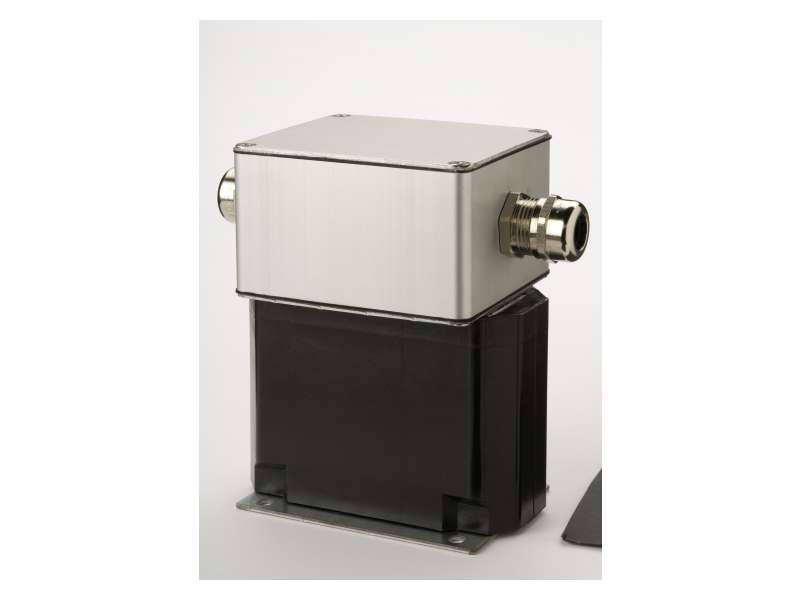

INVERTEK DRIVES Output filter OPT-2-M3012-66 ; 12A

Output filter, 12A, IP66. Compact with Optidrive E3, P2 ,Eco , frame size 1. Reduce the rise time and peak voltage when long motor cables are used to protect the...

Brand: INVERTEK DRIVES
Product Code: OPT-2-M3012-66
Availability: Check availability
VAT-exclusive price: 40.736,27
VAT-inclusive price: 48.883,53

Output filter, 12A, IP66. Compact with Optidrive E3, P2 ,Eco , frame size 1.

  • Reduce the rise time and peak voltage when long motor cables are used to protect the motor
  • Reduce the dv/dt of the output waveform
Output filters should be used whenever long motor cables are fitted between the optidrive and the motor. The additional inductance helps balance the effect of the cable capacitance, and protect the motor against possible damage. Output filters should also be used whenever a non-inverter rated motor is used.

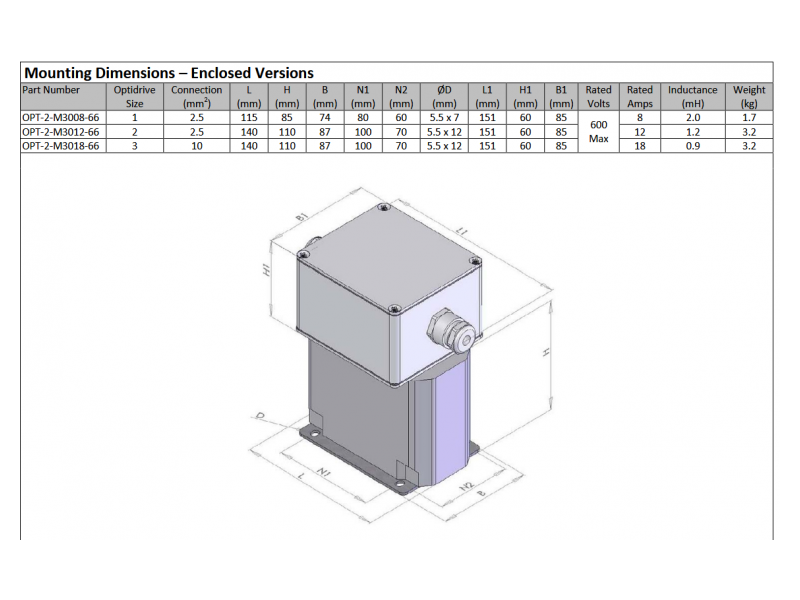

Part Number Optidrive
Size
Connection
(mm2)
L
(mm)
H
(mm)
B
(mm)
N1
(mm)
N2
(mm)
ØD
(mm)
L1
(mm)
H1
(mm)
B1
(mm)
Rated
Volts
Rated
Amps
Inductance
(mH)
Weight
(kg)
OPT-2-M3008-66 1 2.5 115 85 74 80 60 5.5 x 7 151 60 85 600
Max
8 2.0 1.7
OPT-2-M3012-66 2 2.5 140 110 87 100 70 5.5 x 12 151 60 85 12 1.2 3.2
OPT-2-M3018-66 3 10 140 110 87 100 70 5.5 x 12 151 60 85 18 0.9 3.2
  • 82-OPIND-IN Output Filters Iss 2.10(1)

    82-OPIND-IN Output Filters Iss 2.10(1)
