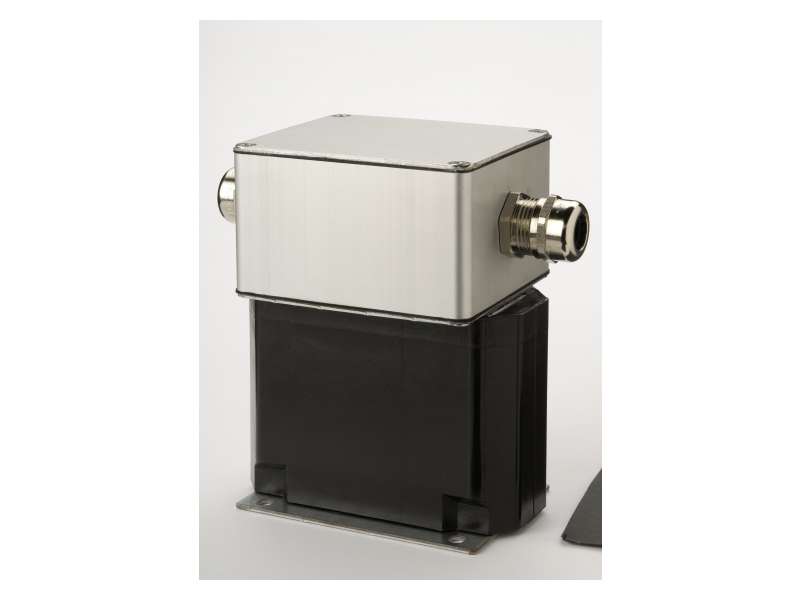

INVERTEK DRIVES Output filter OPT-2-M3018-66 ; 18A
Output filter, 18A, IP66. Compact with Optidrive E3, P2 ,Eco , frame size 1. Reduce the rise time and peak voltage when long motor cables are used to protect the...
VAT-exclusive price: 51.105,51 |
VAT-inclusive price: 61.326,61 |
Output filter, 18A, IP66. Compact with Optidrive E3, P2 ,Eco , frame size 1.
- Reduce the rise time and peak voltage when long motor cables are used to protect the motor
- Reduce the dv/dt of the output waveform

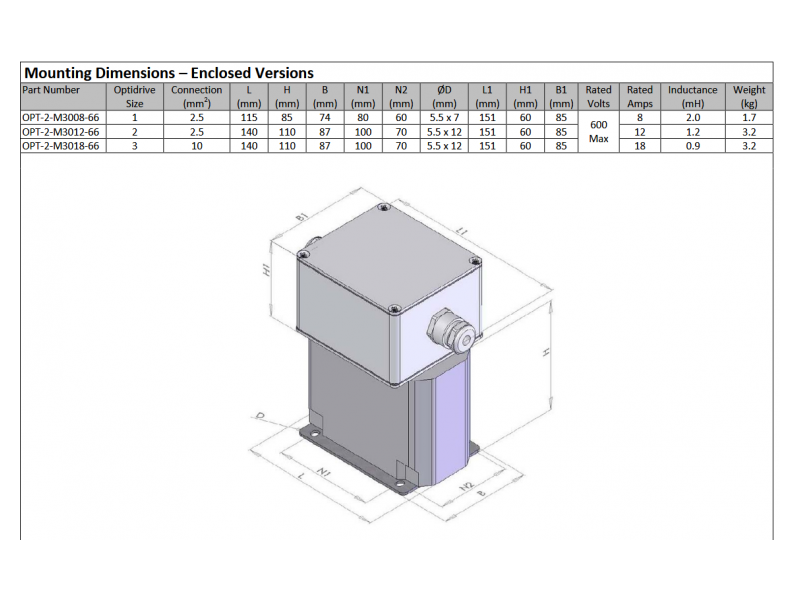

| Part Number |
Optidrive Size |
Connection (mm2) |
L (mm) |
H (mm) |
B (mm) |
N1 (mm) |
N2 (mm) |
ØD (mm) |
L1 (mm) |
H1 (mm) |
B1 (mm) |
Rated Volts |
Rated Amps |
Inductance (mH) |
Weight (kg) |
| OPT-2-M3008-66 | 1 | 2.5 | 115 | 85 | 74 | 80 | 60 | 5.5 x 7 | 151 | 60 | 85 |
600 Max |
8 | 2.0 | 1.7 |
| OPT-2-M3012-66 | 2 | 2.5 | 140 | 110 | 87 | 100 | 70 | 5.5 x 12 | 151 | 60 | 85 | 12 | 1.2 | 3.2 | |
| OPT-2-M3018-66 | 3 | 10 | 140 | 110 | 87 | 100 | 70 | 5.5 x 12 | 151 | 60 | 85 | 18 | 0.9 | 3.2 |
-
82-OPIND-IN Output Filters Iss 2.10(1)
