INVERTEK DRIVES Output filter OPT-2-M3030-20 : 30A

Output filter, 30A, IP20. Compact with Optidrive E3, P2 ,Eco , frame size 3. Reduce the rise time and peak voltage when long motor cables are used to protect the...

Brand: INVERTEK DRIVES
Product Code: OPT-2-M3030-20
Availability: Check availability
VAT-exclusive price: 53.574,37
VAT-inclusive price: 64.289,24

Output filter, 30A, IP20. Compact with Optidrive E3, P2 ,Eco , frame size 3.

  • Reduce the rise time and peak voltage when long motor cables are used to protect the motor
  • Reduce the dv/dt of the output waveform

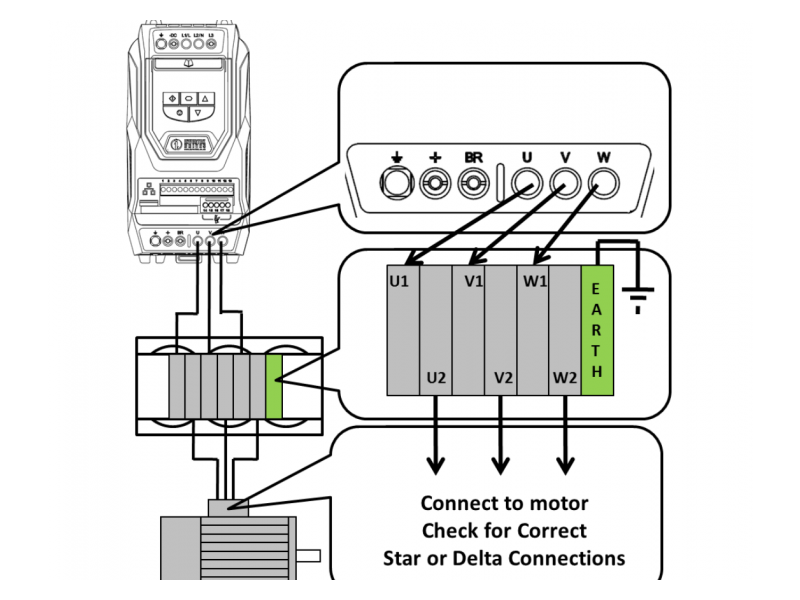

Output filters should be used whenever long motor cables are fitted between the optidrive and the motor. The additional inductance helps balance the effect of the cable capacitance, and protect the motor against possible damage. Output filters should also be used whenever a non-inverter rated motor is used.

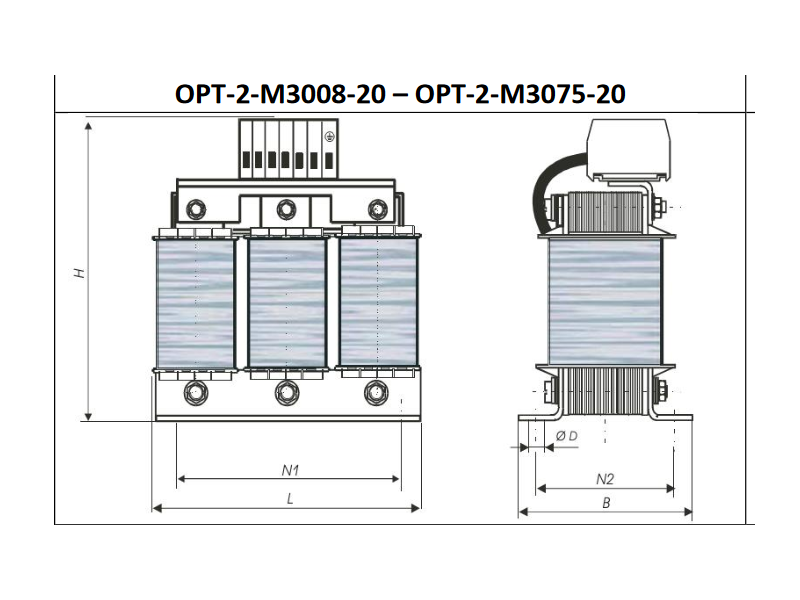

Part Number Optidrive
Size
Connection L
(mm)
H
(mm)
B
(mm)
N1
(mm)
N2
(mm)
ØD
(mm)
Rated
Volts
Rated
Amps
Inductance
(mH)
Weight
(kg)
OPT-2-M3008-20 1 2.5 mm2 95 107 61 56 43 4
500 Max
8 2.0 1.5
OPT-2-M3012-20 2 4 mm2 125 158 76 100 55 5 12 1.7 2.8
OPT-2-M3030-20 3 10 mm2 155 185 66 130 57 8 30 0.5 4.2
OPT-2-M3075-20 4 & 5 35 mm2 190 223 92 170 68 8 75 0.22 8.6
OPT-2-M3180-00 5 & 6 11 mm 360 263 180 264 122 10 x 18 400 Max 180 0.09 30
OPT-2-M3300-00 7 9 mm 380 310 180 248 139 10 x 18 300 0.053 48
  • 82-OPIND-IN Output Filters Iss 2.10(1)

    82-OPIND-IN Output Filters Iss 2.10(1)
