Name: Klemsan Digital Protection Relay DPR 3111 ; 270602
Brand: Klemsan
SKU: 270602
Price: 9432.39 RSD
Availability: OutOfStock

Klemsan Digital Protection Relay DPR 3111 ; 270602

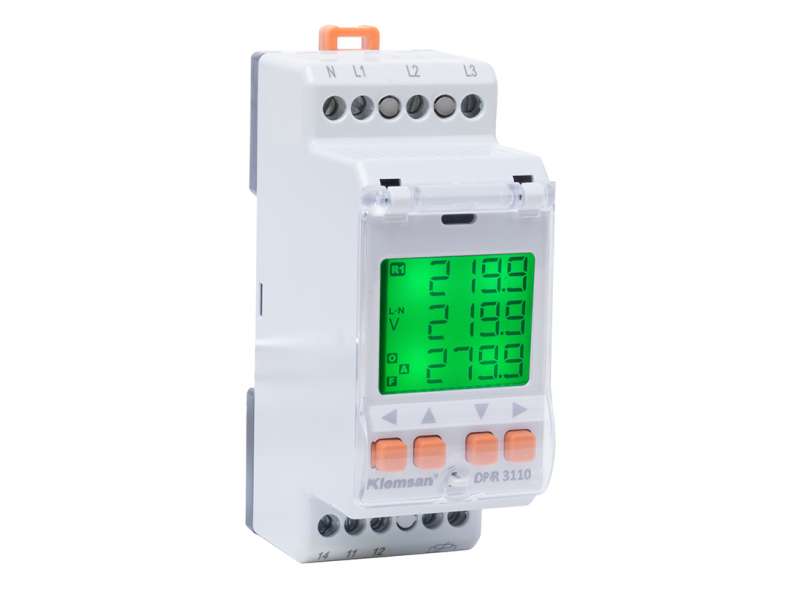

Klemsan Digital Protection Relay DPR 3111 ; 270602 - slika 1

Klemsan Digital Protection Relay DPR 3111 ; 270602

DPR 31xx series are multifunctional digital protection relays designed for 3-phase systems.Most used in electric drives. They measure voltage and frequency, besides...

Brand: Klemsan
Product Code: 270602
Availability: Check availability

VAT-exclusive price: 7.860,32

VAT-inclusive price: 9.432,39

Qnt:

DPR 31xx series are multifunctional digital protection relays designed for 3-phase systems.Most used in electric drives. They measure voltage and frequency, besides they monitor the below parameters :

Over voltage
Under voltage
Over frequency
Phase loss
PTC error
Under frequency
Asymmetry
Sequence

More details in technical documentation.

Power Consumption		DC	---,---
		AC	<4VA,<4VA
Monitoring Functions	Phase Failure	Latency	0 - 999 sn
	Phase Sequence	Latency	0 - 999 sn
	Voltage Protection		0 - 999 V
			0 - 999 V
		Latency	0 - 999 sn
	Frequency Protection	Measurement Inputs	0 - 999 V
		Hysteresis	0 - 999 V
		Latency	0 - 999 sn
	PTC Protection	Threshold	1100 Ω
		Latency	0 - 999 sn
Output Type		Output Type	Relay
Relay Outputs		Quantity	1
		Type	1 C/O (SPDT)
		Max. Switching AC	10A / 250VAC
		Max. Switching power	1250VA
		Mechanical Life	≥ 10^7
		Electrical Life	5x10^4
Supply		External Supply	---
		DC	---
		AC	150…500VAC
		Frequency Supply	35-70Hz
Permissible ambient temperature		Operating Temperature	-20°C..+70 °C
		Storage Temperature	-30°C..+80 °C
Relative Humidity			90% non-condensing
Operating Frequency			35-70 Hz
Protection Class			IP20
Power Consumption		DC	---,---
		AC	<4VA,<4VA
Mechanical Properties		Weight (g)	---
		Packing Unit	1
