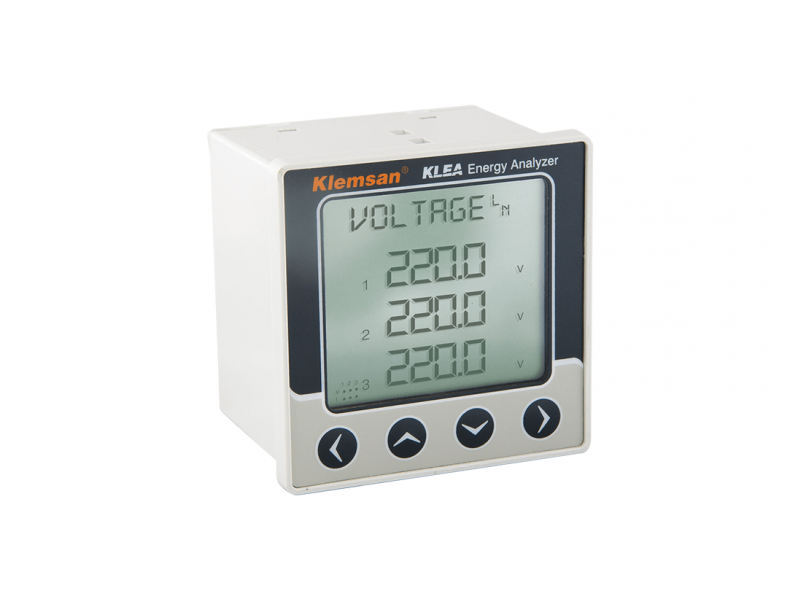

Name: Klemsan Energy Analyzer KLEA 220P-TR; 606161
Brand: Klemsan
SKU: 606161
Availability: OutOfStock

Klemsan Energy Analyzer KLEA 220P-TR; 606161

Energy Analyzer KLEA 220P-TR; 606161...

Brand: Klemsan
Product Code: 606161
Availability: Check availability

Price on request

Description
Specification

Energy Analyzer KLEA 220P-TR; 606161

General		LCD Screen	✔
		Language Support	Turkish
		Password Protection	✔
		Current Transformer Ratio	1 - 5000
		Voltage Transformer Ratio	1 - 5000
		Demand Period	1-60 min. adjustable
		Connection Type	3F4T, 3F3T
		Measurements in Quadrants	4
		Number of Measurements in a Period	256
		LCD/Display Refresh Period	1 sec.
		Networks	TT, TN, IT
		Min./Max./Demand Values	✔
Energy Measurement		Number of Tariffs	2
		1Ø Phase Energy Meters	✔
		3Ø Phase Energy Meters	✔
Current Measurement Input		Measurement Range	10mA - 6A AC
		Overvoltage Category	300 V Cat II
		Measurement Surge Voltage	2 kV
		Power Consumption	<0.2 VA
		Intermittent Overload	100 A for 1 sec.
		Sampling Frequency between 45-65 Hz	12.8 kHz
Voltage Measurement Input		Overvoltage Category	300 V Cat III
		Measured Range L-N	1-300 Vrms
		Measured Range L-L	2-500 Vrms
		Measured Frequency Range	45-65 Hz
		Power Consumption	<0.1 VA
		Sampling Frequency between 45-65 Hz	12.8 kHz
Power Quality Measurements		Harmonics for Current and Voltage Phases	Up to 31st
		THD - Voltage in %	✔
		THD - Current in %	✔
Other Measurements		Run Hour (Operating Time for Load in Hours)	✔
		On Hour (Operating Time for Meter in Hours)	✔
		Int Counter (Number of Power Interruptions)	✔
Measurement Accuracy	According to IEC 61557-12	Total Active Power	Class 0.5
		Total Reactive Power	Class 1
		Total Apparent Power	Class 0.5
		Total Active Energy	Class 0.5
		Total Reactive Energy	Class 2
		Frequency	Class 0.1
		Current	Class 0.5
		Neutral Current	Class 0.5
		Voltage	Class 0.2
		Power Factor	Class 0.5
		THDV, THDI	Class 1
	According to IEC 62053-22	Total Active Energy	Class 0.5S
	According to IEC 62053-23	Total Reactive Energy	Class 2
Inputs and Outputs	Alarm Relay Outputs	Number of Outputs	2
		Type	NO (SPST)
		Max. Switching Current	10 A
		Max. Switching Voltage	250 VAC
		Max. Switching Power	1250 VA
	Digital Inputs	Number of Inputs	2
		Minimum Counting Frequency	100 Hz, 10 ms
		Input Present or Not	Dry Contact
		Isolation Level	5000 Vrms
	Digital Outputs	Number of Outputs	2
		Type	Transistör
		Switching Voltage Range	5-30 VDC
		Minimum Switching Frequency	20 Hz, 50 ms
		Isolation Level	5000 Vrms
	Analog Outputs	Number of Outputs	---
		Range of Outputs 0-5 V, 0-10 V, -5-5 V, -10-10V, 0-20 mA, 4-20 mA	---
		Isolation	---
Supply	Voltage	AC	85-300V
		DC	85-300V
	Consumption	AC	<4.5VA
		DC	<2W
Supply		Frequency	45-65Hz
Data Logging with timestamp	Min./Max./Avg. Values	Hourly Records	---
		Daily Records	---
		Monthly Records	---
Data Logging with timestamp		Demand	---
		Alarm Records	---
Communication		Protocol	Modbus RTU
		Baud Rate	1200-57600 bps adjustable
		Parity Number	Odd, Even, None
		Stop Bit	1
		Address	1-247
		Isolation	2750V RMS
Mechanical Properties		Weight (g)	378 g
		Protection Class	Front IP40 / Rear IP20
		Mounting Type	Panel Mount
Cable Cross Sections	Supply, Voltage, Current, Relay Outputs	Stranded:	2.5mm² - 14AWG
		Solid:	4mm² - 12AWG, 2x1.5mm² - 2x16AWG
	Digital I/O, RS 485, Analog Output	Stranded:	1.5mm² - 16AWG
		Solid:	1.5mm² - 16AWG, 2x0.75mm² - 2x18AWG
Ambient Conditions		Operating Temperature	-20 to +70°C
		Storing Temperature	-30 to +80°C
		Relative Humidity (No Condensation)	Maks. 95%
EMC-EMI		300 VAC CAT II according to IEC 61010-1	✔
		EN 55011/A1:2010, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN61000-4-11	✔
