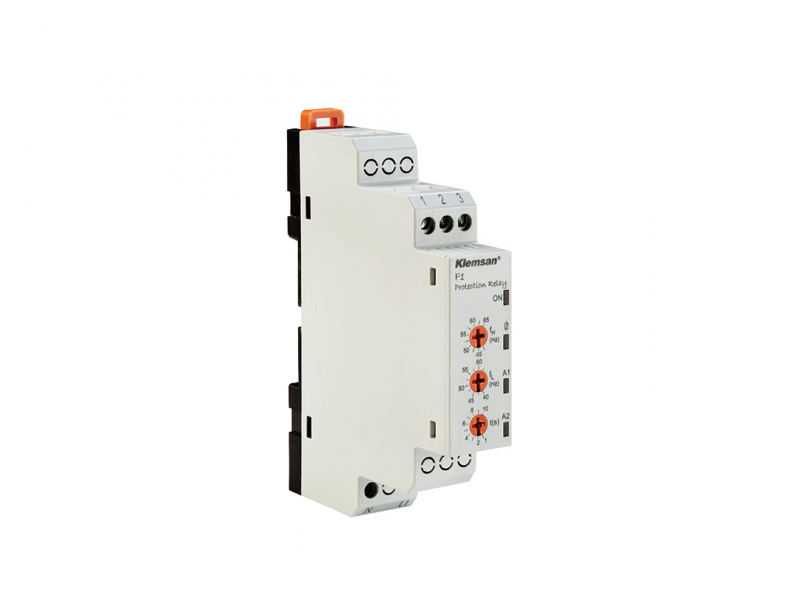

Klemsan Frequency Monitoring Relay F1; 270161
Frequency Monitoring Relay F1; 270161...
VAT-exclusive price: 3.743,94 |
VAT-inclusive price: 4.492,72 |
Frequency Monitoring Relay F1; 270161
| General | Casing Width (mm) | 17,5 | |
| Connections | Screw Terminal | ||
| Response Time for Monitoring Any Function | Maks. 250ms | ||
| Type of Output | Relay | ||
| Supply Frequency | 35-70Hz | ||
| Control Input Voltage Range | --- | ||
| Operating Frequency | 35-70Hz | ||
| Protection Class | IP20 | ||
| Mounting Type | Panel or Rail | ||
| EMC-EMI | ✔ | ||
| Packing Unit | --- | ||
| Weight (g) | 62 | ||
| Packing Unit | |||
| Dimensions | --- | ||
| Monitoring Functions | Adjustable Frequency Protection | Upper Limit | 42.5 => 65Hz |
| Lower Limit | 40 => 62.5Hz | ||
| Hysteresis | 0.4Hz | ||
| Delay Time | 1 => 10s | ||
| Auxilary Contacts | Type | 1 C/O (SPDT) | |
| Max. Ratings - AC (for NO Side) | 5A/250V; 1250VA | ||
| Max. Ratings - DC (for NO Side) | 5A/30VDC: 150W | ||
| Mechanical Lifetime | ≥107 operation | ||
| Electrical Lifetime Operations (for NO Side) | 5x104(5A@250VAC) 1x105 (5A@30VDC) | ||
| Supply Voltage | DC | --- | |
| AC | L1-N'den 85-320VAC | ||
| Ambient Conditions | Operating Temperature | -20°C +60°C | |
| Storing Temperature | -40°C +75°C | ||
| Relative Humidity (No Condensation) | Maks. 95% (no condensation) | ||
| Power Consumption | DC | --- | |
-
C V F serisi-koruma-röleleri 13012021
